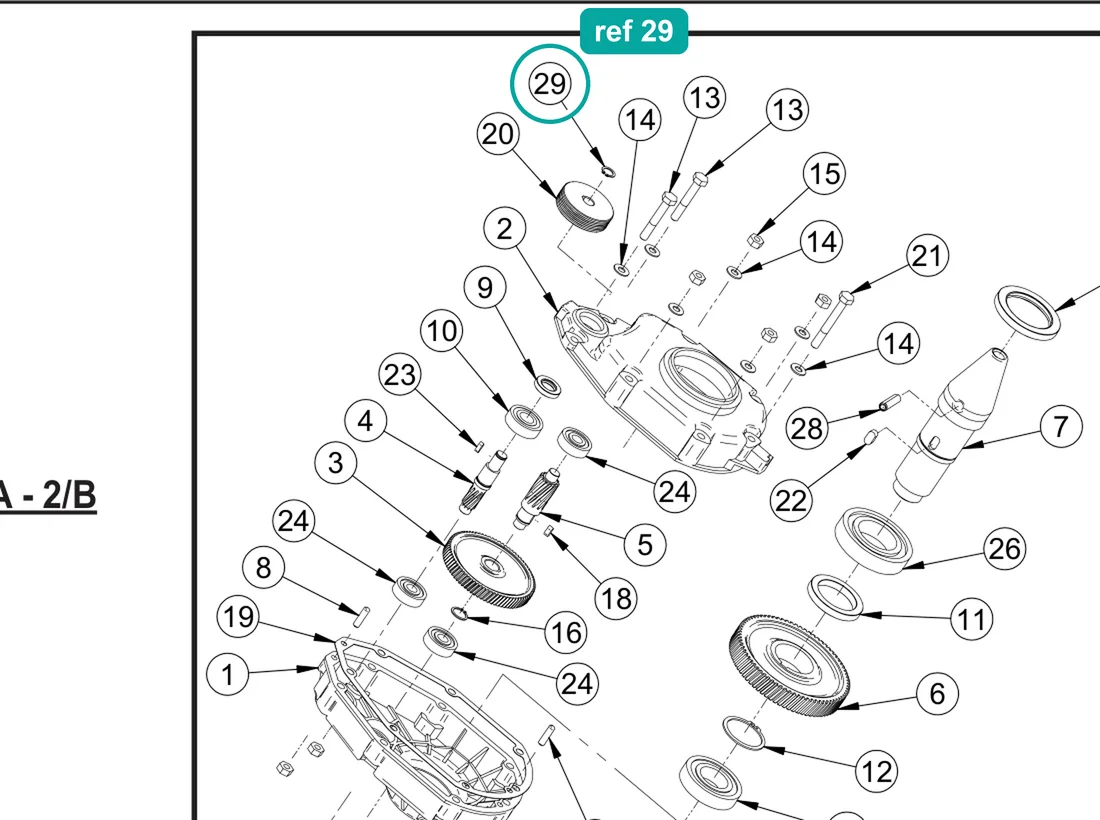

Stop ring E15 (ref 29) highlighted on an IMER parts-book drawing – part 1227330

01Where it fits

Where this part sits on your machine

+ 2 more machines

Also on this drawing

All 34 parts on Drawing 4, Gear Box (3226385)
  • 15
    Pulley D.70

    3235725

    $39.00In stock

  • 24
    Screw M10×65

    2222148

    $10.00In stock

  • 23
    Gearbox oil seal 35×20×7

    3200094

    $10.00In stock

  • 16
    Gear box casing

    3226386

    $157.00In stock

  • 22
    Gearbox oil seal 90×55×10

    3226388

    $12.00In stock

  • 21
    Screw M10×80

    2222145

    $10.00In stock

02Fits

Fits these machines

7 machines · 4 IMER parts books

From IMER parts books 3230425 r07 (2019-02), 3226875 r16 (2018-09), 3228768 r12 (2019-02), 3209290 r11 (2019-02).

03Where it sits

Ref 10 on the Mortarman 120 Plus drawing

Open full diagram →
Mortarman 120 Plus — Gear Box (3226385), parts list
RefPart no.NamePrice
13209514Gear Box CasingIn stock, $109.00
22204569Bearing 6211In stock, $79.00
33213282Bearing 6208In stock, $45.00
43226384Main ShaftIn stock, $316.00
53208970GearIn stock, $120.00
63208983Bearing 6204In stock, $17.00
73213178Key 10x8x20In stock, $10.00
83209682Bearing 6302In stock, $15.00
93208966Spacer BracketIn stock, $20.00
101227330Stop Ring E15In stock, $10.00
112227207Stop Ring E55In stock, $10.00
123208975PinionIn stock, $63.00
132229250Key 5x5x15In stock, $10.00
143209801GearIn stock, $99.00
153235725PulleyIn stock, $39.00
163226386Gear Box CasingIn stock, $157.00
172227320Stop Ring E20In stock, $10.00
183209799ShaftIn stock, $82.00
192224340Washer 6592 D.10x21 ZincIn stock, $10.00
202223650Nut 5588 M10In stock, $10.00
212222145Bolt 5737 M10x80 ZincIn stock, $10.00
223226388Oil Seal 90x55x10In stock, $12.00
233200094Oil Seal 35x20x7In stock, $10.00
242222148Bolt 5737 M10x65 ZincIn stock, $10.00
253209811GasketIn stock, $16.00
263213180Pin D.8x30In stock, $10.00
272229259Key 6x6x14In stock, $10.00
283226390BushingRequest price
292204505Bearing 6008Request price
301222694Bolt 5737 M10x110 ZincRequest price
312229555Key 10x8x40In stock, $10.00
323226451Pin D.5x16Request price
332223836Nut 5589 M30x2In stock, $13.00
343234539SpacerRequest price

04Specifications

Part details

Part number
1227330(1227-330)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Gear Box (3226385)
Fits
7 machines

The E15 stop ring is a genuine IMER OEM part, part number 1227330. IMER parts books list it in these assemblies:

- Mortarman 120 Plus (Mix 120 Plus, mixer 1194302): gear box 3226385, TAV. 4, ref. 10 - Step-Up 120: mixing gear box, TAV. 15, ref. 10 - Workman II 250: concrete mixer drawing 1.3, ref. 60, and gear box 3208746, table 2, ref. 28 - Syntesi 190, 250, 300 and 350 EL: gear box, TAV. 2/A and 2/B, ref. 29

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER machines use stop ring 1227330?

IMER parts books list it in the gear boxes of the Mortarman 120 Plus, Step-Up 120, Workman II 250 and Syntesi 190, 250, 300 and 350 EL, and in the Workman II 250 mixer drawing 1.3.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
