03Where it sits

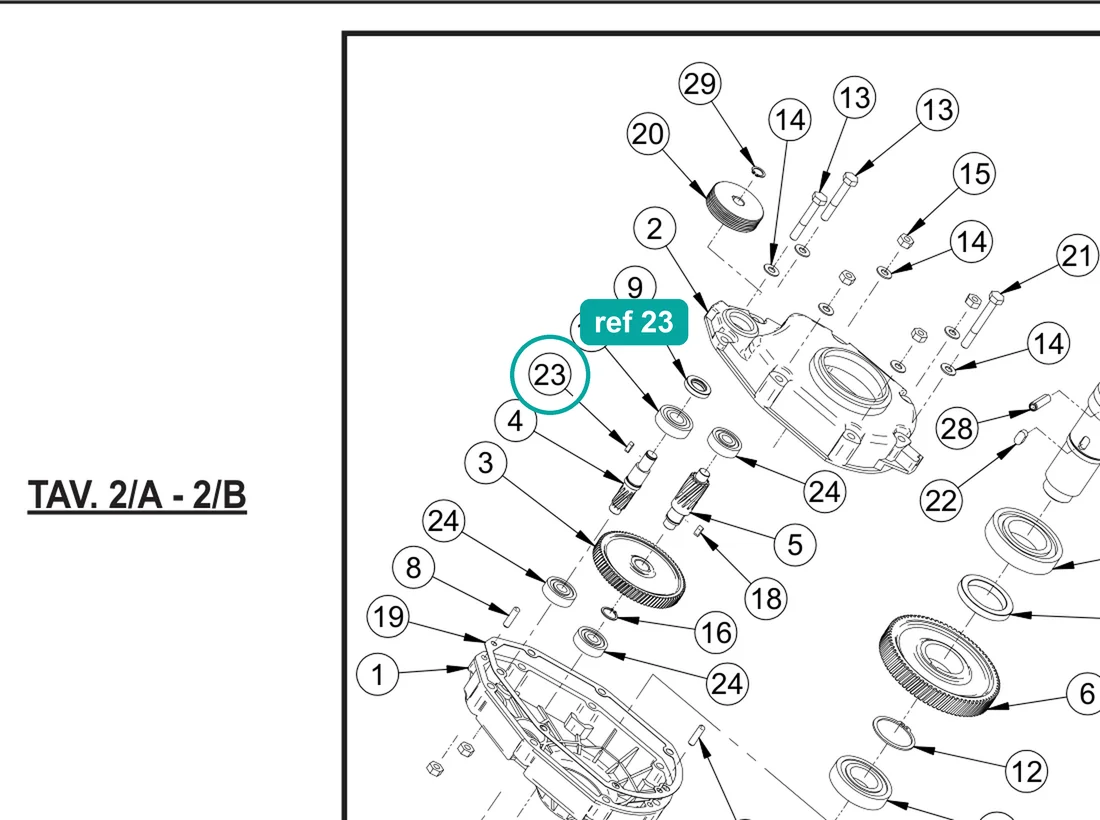

Ref 23 on the Syntesi 190 EL drawing
04Specifications
Part details
This key 5x5x15, part number 2229250, is a genuine IMER part. The IMER Workman II 250 parts book lists it as Key 5x5x15, ref. 14 in Table 2, gear box (3208746).
The same part number is listed in the gear box of the Syntesi 190 EL, 250 EL, 300 EL and 350 EL (ref. 23), in the gear box of the Mortarman 120 Plus (ref. 13) and in the mixing gear box of the Step-Up 120 (ref. 13).
