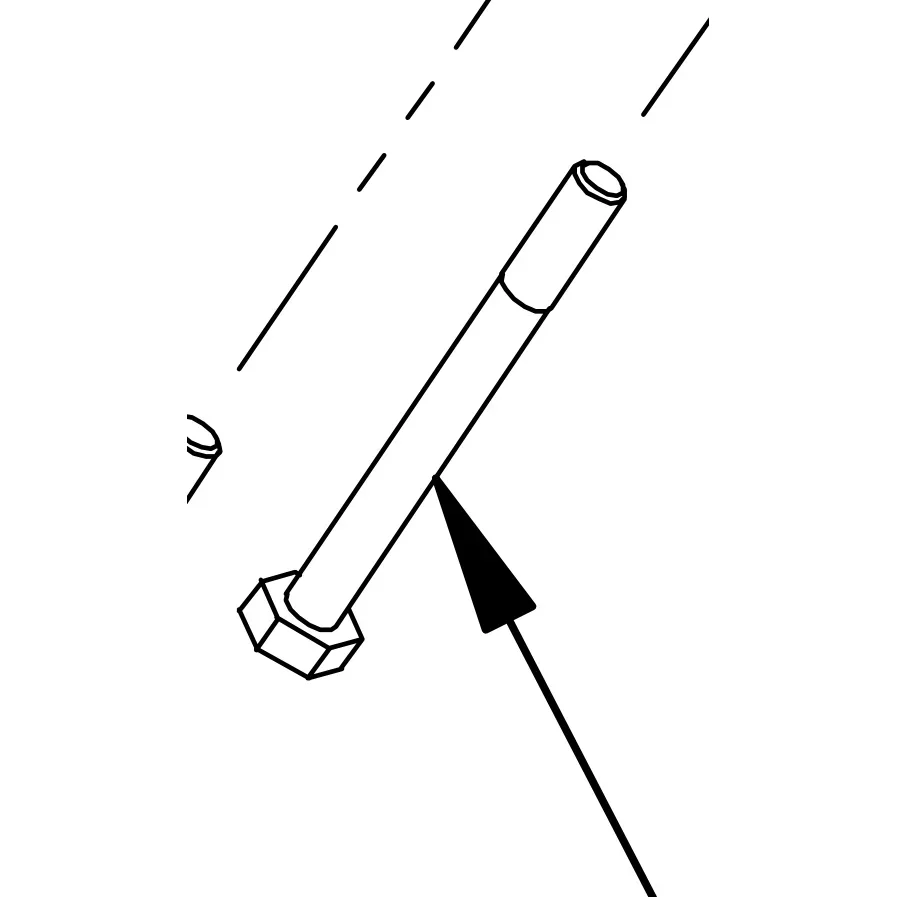

Screw M8×100 – genuine IMER part 3227517

01Where it fits

Where this part sits on your machine

Also on this drawing

All 29 parts on Drawing 2/A, Gear Box (Syntesi 190-250)
  • 16
    Stop ring E40

    2227220

    $10.00In stock

  • 1
    Gear box casing

    3209680

    $106.00In stock

  • 17
    Gear box bearing 6207

    3213898

    $36.00In stock

  • 18
    Key 5×5×12

    2229249

    $10.00In stock

  • 19
    Gear box flange gasket

    3213887

    $16.00In stock

  • 8
    Pin D=6×14

    2228820

    $10.00In stock

02Fits

Fits these machines

3 machines · 2 IMER parts books

From IMER parts books 3223425 r18 (2018-09), 3228768 r12 (2019-02).

03Where it sits

Ref 25 on the Syntesi 190 EL drawing

Open full diagram →
Syntesi 190 EL — Gear Box (Syntesi 190-250), parts list
RefPart no.NamePrice
13209680Gear Box CasingIn stock, $106.00
23209681Gear Box CasingIn stock, $110.00
32202493GearIn stock, $70.00
43209770ShaftIn stock, $77.00
53208754PinionIn stock, $58.00
63208756GearIn stock, $104.00
73208748Main ShaftIn stock, $148.00
82228820Pin D. 6x14In stock, $10.00
93200094Oil Seal 35x20x7In stock, $10.00
103225958Bearing 6204Request price
113208752SpacerIn stock, $21.00
122227220Stop Ring E 40In stock, $10.00
132222018Bolt M8x35In stock, $10.00
142224140Washer D. 8x18In stock, $10.00
152223570Nut M8In stock, $10.00
162227220Stop Ring E 40In stock, $10.00
173213898Bearing 6207In stock, $36.00
182229249Key 5x5x12In stock, $10.00
193213887GasketIn stock, $16.00
203208762PulleyIn stock, $50.00
203210689PulleyCod. 1105701Request price
212222114Bolt M8x90In stock, $10.00
223213897Key 10x8x15In stock, $10.00
232229250Key 5x5x15In stock, $10.00
243209679Bearing 6301In stock, $17.00
253227517Bolt M8x100In stock, $10.00
263213899Bearing 6209In stock, $59.00
273213896Oil Seal 72x52x8In stock, $10.00
282228360Shear Pin D. 8x16In stock, $10.00
291227330Stop Ring E 15In stock, $10.00

04Specifications

Part details

Part number
3227517(3227-517)
Brand
IMER (genuine OEM)
Condition
New
Size
M8×100
Assembly
Koine 4 Housing Kit (1107491)
Fits
3 machines

This M8x100 screw is a genuine IMER part, part number 3227517. The IMER Koine 4 parts book lists it in Table 12, kit 1107491, as ref. 6.

The Syntesi parts book lists the same part number as bolt TE 8.8 5739 M8x100 Z in Table 2/A, gear box, for the Syntesi 190 EL and 250 EL (ref. 25). Check the part number in your machine's parts list before ordering.
