01Where it fits
Where this part sits on your machine
Also on this drawing
All 34 parts on Drawing 4, Gear Box (3226385)02Fits
Fits these machines
4 machines · 3 IMER parts books
From IMER parts books 3230425 r07 (2019-02), 3226875 r16 (2018-09), 3228768 r12 (2019-02).
03Where it sits

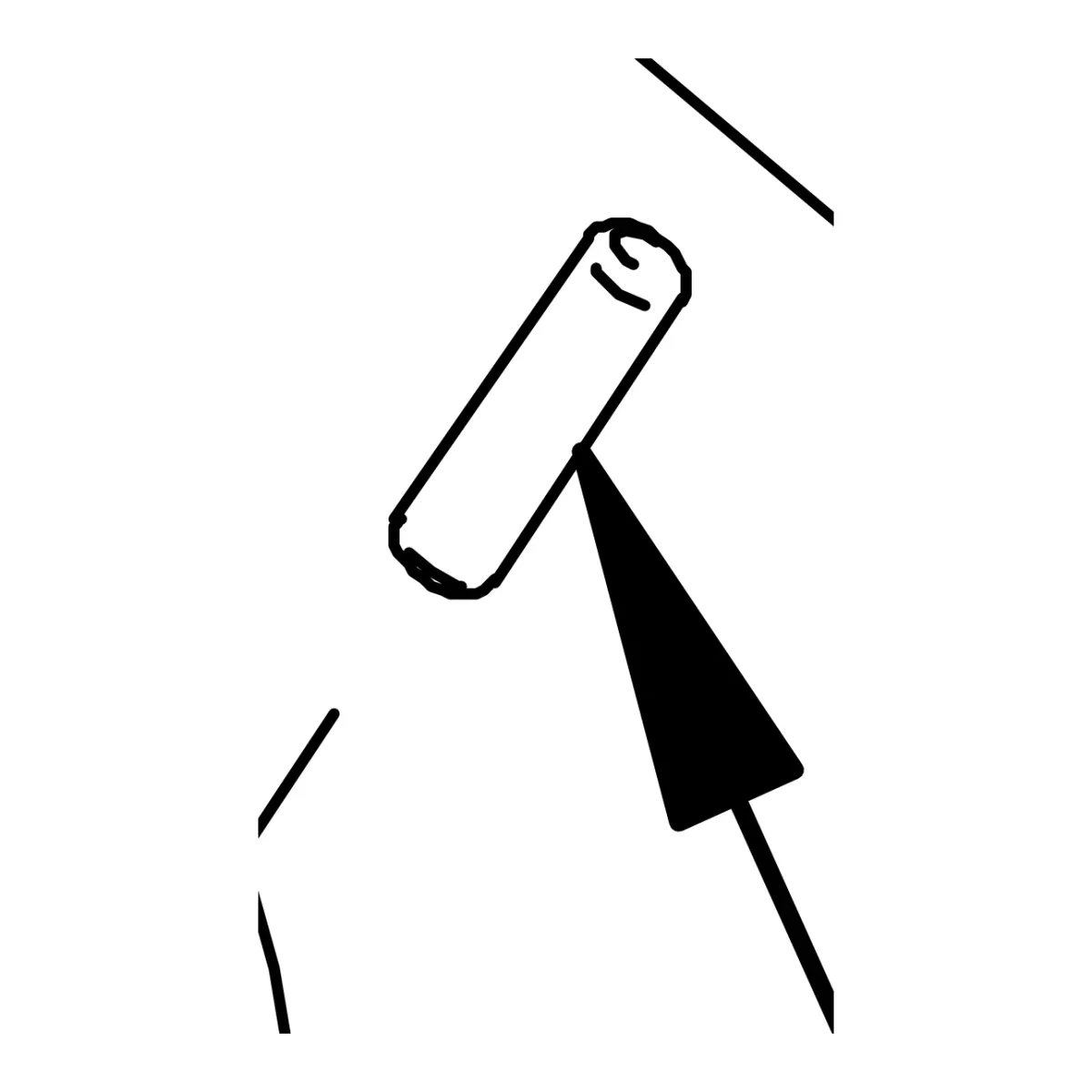

Ref 26 on the Mortarman 120 Plus drawing
04Specifications
Part details
This gudgeon pin Ø8x30 is a genuine IMER part, part number 3213180. The IMER parts books list it in three gear boxes.
In the Step 120 parts book it is Gudgeon Pin Ø8x30, ref. 26, in Tav. 15 Mixing Gear Box. In the Syntesi 190-250-300-350 EL parts book it is Pin D.8x30, ref. 8, in Tav. 2/B Gear Box 3210475, the table for the Syntesi 300 and 350; on the Syntesi 190 and 250 (Tav. 2/A) the book lists pin D.6x14 2228820 in this position instead. In the Mortarman 120 Plus parts book it is Pin D.8x30, ref. 26, in Tav. 4 Gear Box 3226385.
Check that the part number in your machine's parts list matches 3213180 before ordering, or contact us with your machine's model and serial number.
05Used with
Often replaced together
Wear parts next to it on the same drawing
06Documents
Parts books
Guides
Guides for this part
Troubleshooting
IMER Pump Rotor and Stator Wear: Signs, Checks, Parts
Falling material flow or a BLOC message on an IMER Step-Up 120, Small 50 or Koine 4? What the manuals say to check, how to swap the pump, and the parts listed.
4 min read
Answers
Questions about the machines it fits
07Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
