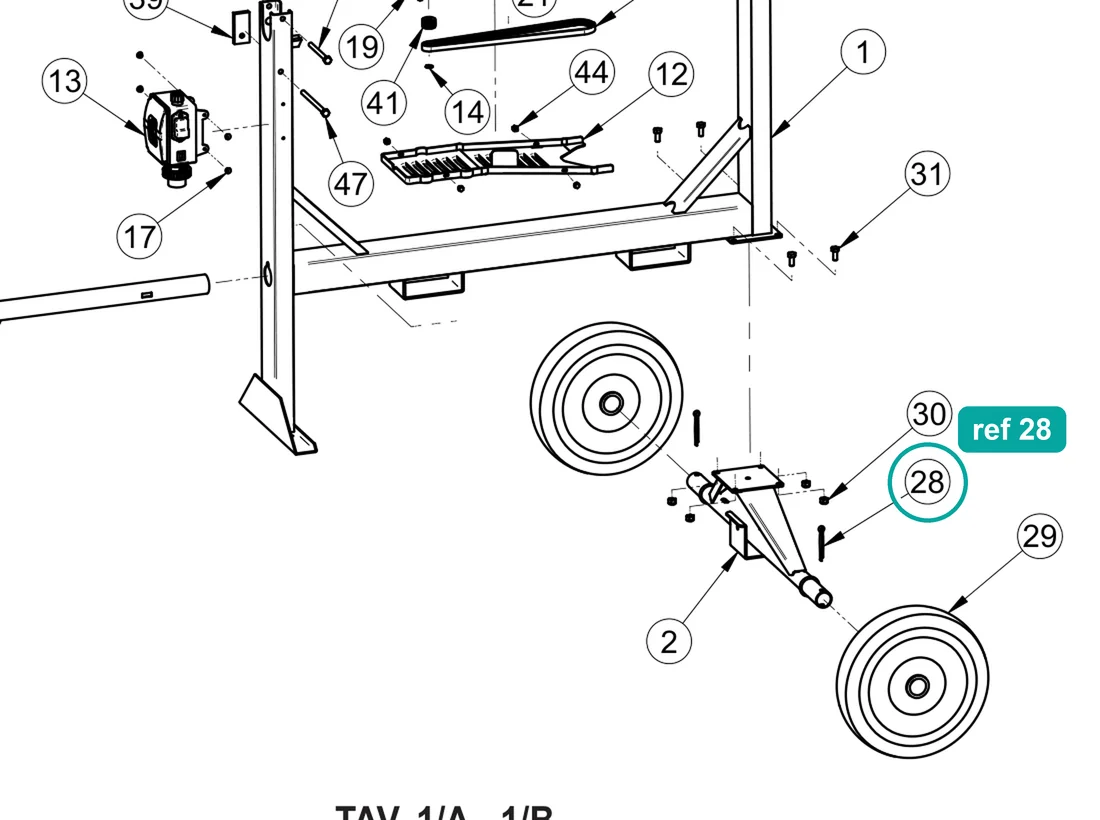

Split Pin D. 8x63 for IMER Equipment — IMER parts diagram, ref 28

01Where it fits

Where this part sits on your machine

Also on this drawing

All 58 parts on Drawing 1/A, Machine Structure (Syntesi 190-250)
  • 28
    Split pin 3.5/72

    2226700

    $10.00In stock

  • 30
    Self-locking nut M8

    2223923

    $10.00In stock

  • 29
    Wheel

    2211100

    $38.00In stock

  • 29
    Wheel

    2211200

    $56.00In stock

  • 2
    Wheel axle

    3228743

    $176.00In stock

  • 2
    Wheel axle

    3228744

    $196.00In stock

02Fits

Fits these machines

5 machines · 2 IMER parts books

From IMER parts books 3236275 r02 (2019-03), 3228768 r12 (2019-02).

03Where it sits

Ref 28 on the Syntesi 190 EL drawing

Open full diagram →
Syntesi 190 EL — Machine Structure (Syntesi 190-250), parts list
RefPart no.NamePrice
13208817FrameIn stock, $832.00
23228743Wheel AxleCod. 1105650 - 1105650A - 1105655In stock, $176.00
23228744Wheel AxleCod. 1105700 - 1105701 - 1105703 - 1105705In stock, $196.00
33208782ArmIn stock, $652.00
43208746Gear BoxIn stock, $787.00
43210691Gear BoxCod. 1105701In stock, $1,008.00
53208811Complete Tank AssemblyCod. 1105700 - 1105701 - 1105703 - 1105705In stock, $1,055.00
53208830Complete Tank AssemblyCod. 1105650 - 1105655In stock, $967.00
63209786Drum Movement Reduction UnitIn stock, $358.00
73209429CoverNot sold onlineAsk a parts specialist
83228750HandwheelIn stock, $182.00
93234487MotorCod. 1105650 - 1105700 - 1105650-AIn stock, $537.00
93210698MotorCod. 1105703Not sold onlineAsk a parts specialist
93209552MotorCod. 1105655 - 1105705In stock, $758.00
93228382MotorCod. 1105701Not sold onlineAsk a parts specialist
103208804Motor SupportIn stock, $50.00
113228745Tow BarIn stock, $94.00
123208795GuardIn stock, $32.00
133229075Electric PanelCod. 1105650 - 1105650A - 1105700 - 1105701In stock, $190.00
133210700Electric PanelCod. 1105703Not sold onlineAsk a parts specialist
133228436Electric PanelCod. 1105655 - 1105705In stock, $250.00
142227214Stop Ring E 14In stock, $10.00
153208770BushingIn stock, $16.00
163203917Washer D. 8x25x4In stock, $10.00
173211175Rivet Stavex 4.8In stock, $10.00
183208791BeltIn stock, $41.00
192222002Bolt M6x16In stock, $10.00
202222064Bolt M8x16In stock, $10.00
212223570Nut M8In stock, $10.00
223230876Ground Cable 300 mmNot sold onlineAsk a parts specialist
233206690Drum Locking ScrewIn stock, $41.00
243207225Washer D. 61x19x8In stock, $15.00
253208773GearIn stock, $117.00
263208792SupportIn stock, $18.00
272222114Bolt M8x90In stock, $10.00
282226700Split PinCod. 1105650 - 1105650A - 1105655In stock, $10.00
282226503Split Pin 8x63Cod. 1105700 - 1105701 - 1105703 - 1105705In stock, $10.00
292211100WheelCod. 1105650 - 1105650A - 1105655In stock, $38.00
292211200WheelCod. 1105700 - 1105701 - 1105703 - 1105705In stock, $56.00
302223923Self-Locking Nut M8In stock, $10.00
312222060Bolt M8x20In stock, $10.00
322230350Greaser M8x1.25In stock, $10.00
333228746Arm ClosureIn stock, $25.00
343208776Key 14x9x25In stock, $10.00
352222467Bolt M5x20In stock, $10.00
363206748Knob M10In stock, $15.00
373225036Stop Ring E 20Not sold onlineAsk a parts specialist
382224220Washer D. 10x40In stock, $10.00
393208944Shock AbsorberIn stock, $23.00
403228116Key 5x5x16In stock, $10.00
413208828PulleyIn stock, $49.00
422222190Bolt M8x40In stock, $10.00
432222112Bolt M8x100In stock, $10.00
443225750Bolt M6x10In stock, $10.00
452227205Stop Ring E 50In stock, $10.00
463208790Shock AbsorberIn stock, $10.00
473210606Bolt M10x160In stock, $10.00
482223920Self-Locking Nut M10In stock, $10.00

04Specifications

Part details

Part number
2226503(2226-503)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure
Fits
5 machines

This is genuine IMER part number 2226503. The official IMER parts books list it as "Split Pin D. 8x63" and show it for the IMER Syntesi 190 EL, Syntesi 250 EL, Syntesi 300 EL and 2 more models.

Parts-book listings: Syntesi 190 EL, table 1/A (Machine Structure (Syntesi 190-250)), ref 28; Syntesi 250 EL, table 1/A (Machine Structure (Syntesi 190-250)), ref 28; Syntesi 300 EL, table 1/B (Machine Structure (Syntesi 300-350)), ref 28; Syntesi 350 EL, table 1/B (Machine Structure (Syntesi 300-350)), ref 28; Masonry 750 Plus, table 1 (Machine Structure), ref 34.

Check that the part number on your old part or in your machine's parts list matches 2226503 before ordering, or contact us with your machine's model and serial number.
