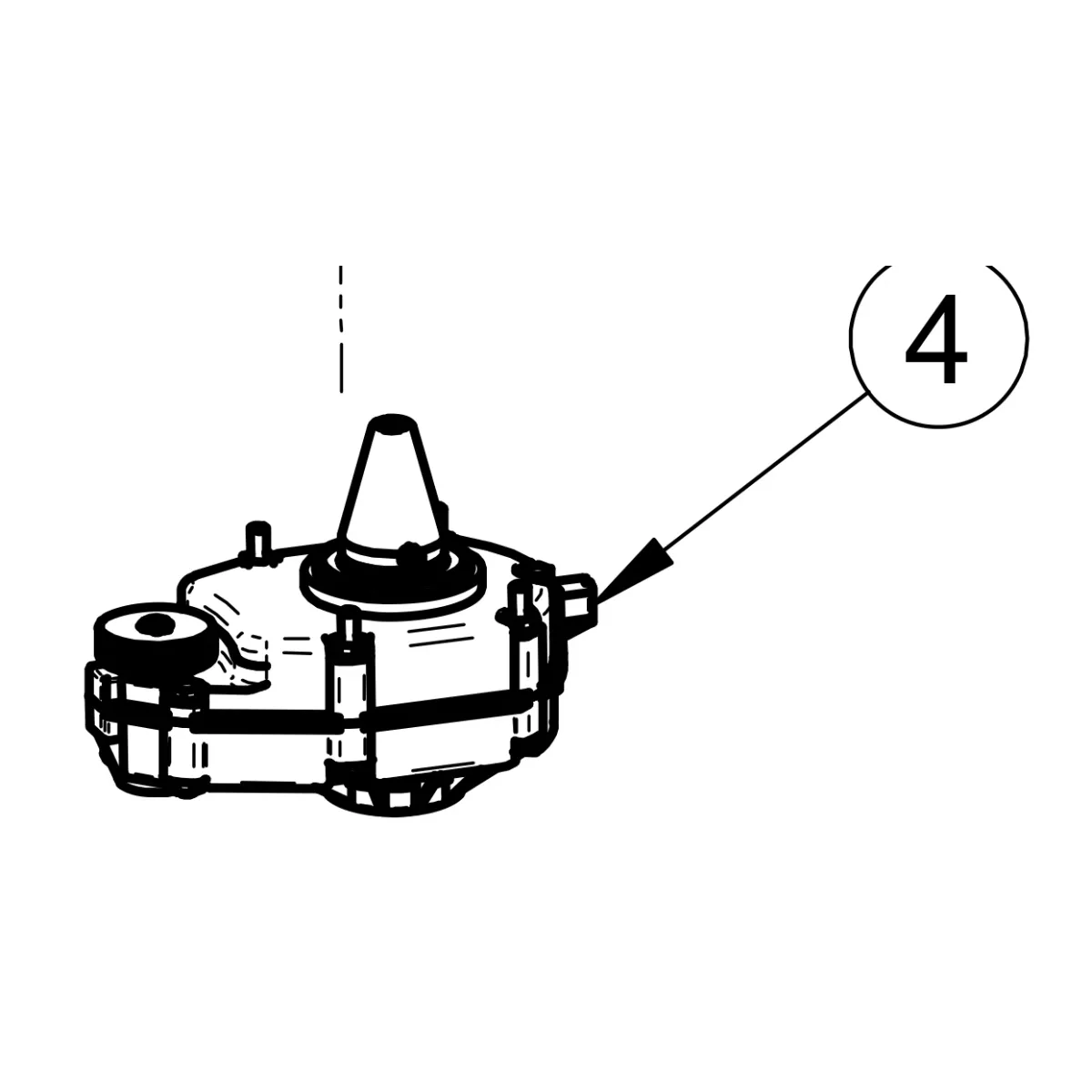

Gear box – genuine IMER part 3210691

01Where it fits

Where this part sits on your machine

Also on this drawing

All 58 parts on Drawing 1/A, Machine Structure (Syntesi 190-250)
  • 4
    Gear box

    3208746

    $787.00In stock

  • 16
    Washer D8×25×4 z

    3203917

    $10.00In stock

  • 3
    Arm

    3208782

    $652.00In stock

  • 27
    Bolt M8×90

    2222114

    $10.00In stock

  • 18
    Belt

    3208791

    $41.00In stock

  • 20
    Screw M8×16

    2222064

    $10.00In stock

02Fits

Fits these machines

4 machines · 1 IMER parts book

From IMER parts book 3228768 r12 (2019-02).

03Where it sits

Ref 4 on the Syntesi 190 EL drawing

Open full diagram →
Syntesi 190 EL — Machine Structure (Syntesi 190-250), parts list
RefPart no.NamePrice
13208817FrameIn stock, $832.00
23228743Wheel AxleCod. 1105650 - 1105650A - 1105655In stock, $176.00
23228744Wheel AxleCod. 1105700 - 1105701 - 1105703 - 1105705Request price
33208782ArmIn stock, $652.00
43208746Gear BoxIn stock, $787.00
43210691Gear BoxCod. 1105701In stock, $1,008.00
53208811Complete Tank AssemblyCod. 1105700 - 1105701 - 1105703 - 1105705In stock, $1,055.00
53208830Complete Tank AssemblyCod. 1105650 - 1105655In stock, $967.00
63209786Drum Movement Reduction UnitIn stock, $358.00
73209429CoverRequest price
83228750HandwheelIn stock, $182.00
93234487MotorCod. 1105650 - 1105700 - 1105650-AIn stock, $537.00
93210698MotorCod. 1105703Request price
93209552MotorCod. 1105655 - 1105705Request price
93228382MotorCod. 1105701Request price
103208804Motor SupportIn stock, $50.00
113228745Tow BarIn stock, $94.00
123208795GuardIn stock, $32.00
133229075Electric PanelCod. 1105650 - 1105650A - 1105700 - 1105701In stock, $190.00
133210700Electric PanelCod. 1105703Request price
133228436Electric PanelCod. 1105655 - 1105705Request price
142227214Stop Ring E 14In stock, $10.00
153208770BushingIn stock, $16.00
163203917Washer D. 8x25x4In stock, $10.00
173211175Rivet Stavex 4.8In stock, $10.00
183208791BeltIn stock, $41.00
192222002Bolt M6x16In stock, $10.00
202222064Bolt M8x16In stock, $10.00
212223570Nut M8In stock, $10.00
223230876Ground Cable 300 mmRequest price
233206690Drum Locking ScrewIn stock, $41.00
243207225Washer D. 61x19x8In stock, $15.00
253208773GearIn stock, $117.00
263208792SupportIn stock, $18.00
272222114Bolt M8x90In stock, $10.00
282226700Split PinCod. 1105650 - 1105650A - 1105655In stock, $10.00
282226503Split Pin 8x63Cod. 1105700 - 1105701 - 1105703 - 1105705Request price
292211100WheelCod. 1105650 - 1105650A - 1105655In stock, $38.00
292211200WheelCod. 1105700 - 1105701 - 1105703 - 1105705In stock, $56.00
302223923Self-Locking Nut M8In stock, $10.00
312222060Bolt M8x20In stock, $10.00
322230350Greaser M8x1.25In stock, $10.00
333228746Arm ClosureIn stock, $25.00
343208776Key 14x9x25In stock, $10.00
352222467Bolt M5x20In stock, $10.00
363206748Knob M10In stock, $15.00
373225036Stop Ring E 20Request price
382224220Washer D. 10x40In stock, $10.00
393208944Shock AbsorberIn stock, $23.00
403228116Key 5x5x16In stock, $10.00
413208828PulleyIn stock, $49.00
422222190Bolt M8x40In stock, $10.00
432222112Bolt M8x100In stock, $10.00
443225750Bolt M6x10In stock, $10.00
452227205Stop Ring E 50In stock, $10.00
463208790Shock AbsorberIn stock, $10.00
473210606Bolt M10x160In stock, $10.00
482223920Self-Locking Nut M10In stock, $10.00

04Specifications

Part details

Part number
3210691(3210-691)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure (Syntesi 190-250)
Fits
4 machines

This gear box is a genuine IMER part, part number 3210691. The IMER Syntesi 190-250-300-350 EL parts book lists it at ref. 4 of the machine structure tables: - Tav. 1/A [Syntesi 190-250]: for machine code 1105701 - Tav. 1/B [Syntesi 300-350]: for machine codes 1105752, 1105801 and 1105802

The parts book cover lists 1105701, 1105752 and 1105801 as 220V/60Hz and 1105802 as 115V/60Hz. Model 1105802 is sold in the USA as the IMER Multi-Mix 350. Other Syntesi codes use gear box 3208746 (Syntesi 190-250) or 3210475 (Syntesi 300-350), so check the model number on your mixer before ordering.

05Used with

Often replaced together

Wear parts next to it on the same drawing
  • 3203917

    Washer D8×25×4 z

    Ref 16 on the same drawing

    $10.00

    In stock

  • 2227205

    Stop ring e 50

    Ref 45 on the same drawing

    $10.00

    In stock

  • 3208770

    Bushing

    Ref 15 on the same drawing

    $16.00

    In stock

  • 3228116

    Key 5×5×16

    Ref 40 on the same drawing

    $10.00

    In stock

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
