Arm closure – genuine IMER part 3228749

01Where it fits

Where this part sits on your machine

Also on this drawing

All 60 parts on Drawing 1/B, Machine Structure (Syntesi 300-350)
  • 34
    Key 14×9×25

    3208776

    $10.00In stock

  • 35
    Bolt M5×15

    2222465

    $10.00In stock

  • 15
    Bushing

    3208770

    $16.00In stock

  • 25
    Gear z 32

    3208773

    $117.00In stock

  • 38
    Washer d. 10×40

    2224220

    $10.00In stock

  • 9
    Motor

    3234565

    $634.00In stock

02Fits

Fits these machines

2 machines · 1 IMER parts book

From IMER parts book 3228768 r12 (2019-02).

03Where it sits

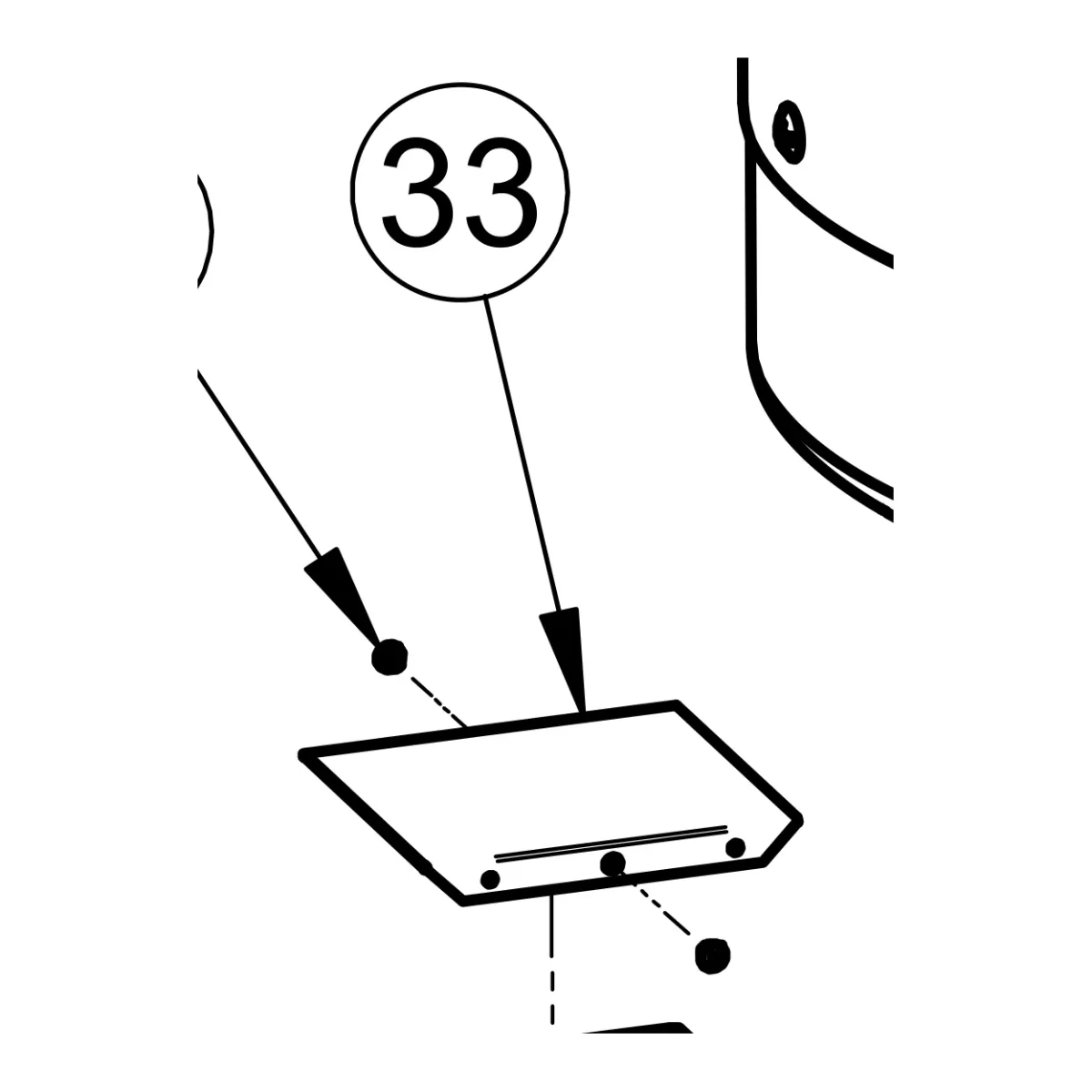

Ref 33 on the Syntesi 300 EL drawing

Open full diagram →
Syntesi 300 EL — Machine Structure (Syntesi 300-350), parts list
RefPart no.NamePrice
13209021FrameIn stock, $769.00
23228747Wheel AxleIn stock, $474.00
33209022ArmIn stock, $770.00
43210691Gear BoxCod. 1105752 - 1105801 - 1105802In stock, $1,008.00
43210475Gear BoxCod. 1105750 - 1105755 - 1105800 - 1105803 - 1105805In stock, $983.00
53209311Complete Tank AssemblyCod. 1105750 - 1105752 - 1105755In stock, $1,184.00
53206635Complete Tank AssemblyCod. 1105800 - 1105801 - 1105802 - 1105803 - 1105805In stock, $1,225.00
63209786Drum Movement Reduction UnitIn stock, $358.00
73209429CoverRequest price
83228750HandwheelIn stock, $182.00
93234565MotorCod. 1105750 - 1105800In stock, $634.00
93210697MotorCod. 1105803Request price
93226678MotorCod. 1105752Request price
93228383MotorCod. 1105801Request price
93209560MotorCod. 1105755 - 1105805Request price
93210674MotorCod. 1105802In stock, $950.00
103209006Motor SupportIn stock, $63.00
113228748Tow BarIn stock, $104.00
123209005GuardIn stock, $40.00
133229076Electric PanelCod. 1105750 - 1105800In stock, $207.00
133210699Electric PanelCod. 1105803Request price
133209025Electric PanelCod. 1105752Request price
133228320Electric PanelCod. 1105755 - 1105805Request price
133231997Electric PanelCod. 1105801Request price
133210677Electric PanelCod. 1105802In stock, $461.00
142227214Stop Ring E 14In stock, $10.00
153208770BushingIn stock, $16.00
163209178Washer D. 10x30x4In stock, $10.00
173211175Rivet Stavex 4.8In stock, $10.00
183235727Belt220V/50HzIn stock, $44.00
183236052Belt115V/60HzRequest price
192222002Bolt M6x16In stock, $10.00
202222060Bolt M8x20In stock, $10.00
212223570Nut M8In stock, $10.00
223230876Ground Cable 300 mmRequest price
233210467Drum Locking ScrewIn stock, $48.00
243210466Washer D. 61x19x8In stock, $13.00
253208773GearIn stock, $117.00
263209009SupportIn stock, $32.00
271222694Bolt M10x110Request price
282226503Split Pin D. 8x63Request price
292211250WheelIn stock, $68.00
302223920Self-Locking Nut M10In stock, $10.00
312222056Bolt M10x25In stock, $10.00
322230350Greaser M8x1.25In stock, $10.00
333228749Arm ClosureIn stock, $24.00
343208776Key 14x9x25In stock, $10.00
352222465Bolt M5x15In stock, $10.00
363206748Knob M10In stock, $15.00
373225036Stop Ring E 20Request price
382224220Washer D. 10x40In stock, $10.00
393208789Shock AbsorberIn stock, $11.00
403228116Key 5x5x16In stock, $10.00
413208828PulleyIn stock, $49.00
422222190Bolt M8x40In stock, $10.00
432222154Bolt M10x120In stock, $10.00
443225750Bolt M6x10In stock, $10.00
452227205Stop Ring E 50In stock, $10.00
463208790Shock AbsorberIn stock, $10.00
473210606Bolt M10x160In stock, $10.00
482223920Self-Locking Nut M10In stock, $10.00

04Specifications

Part details

Part number
3228749(3228-749)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure (Syntesi 300-350)
Fits
2 machines

This arm closure is a genuine IMER part, part number 3228749. The IMER Syntesi 190-250-300-350 EL parts book lists it as ref. 33 in Tav. 1/B, Machine Structure (Syntesi 300-350). The Syntesi 190-250 table (Tav. 1/A) lists arm closure 3228746 instead, so this part is for the Syntesi 300 EL and 350 EL.

In the manual's machine overview (fig. 1) the arm closure is item 9, one of the protection guards that must be correctly replaced when repairs are completed.

Check part number 3228749 against your machine's parts list before you order.
