Belt – genuine IMER part 3235727

01Where it fits

Where this part sits on your machine

Also on this drawing

All 60 parts on Drawing 1/B, Machine Structure (Syntesi 300-350)
  • 12
    Guard

    3209005

    $40.00In stock

  • 44
    Bolt TEFR M6×10

    3225750

    $10.00In stock

  • 21
    Nut M8

    2223570

    $10.00In stock

  • 20
    Bolt M8×20

    2222060

    $10.00In stock

  • 1
    Frame

    3209021

    $769.00In stock

  • 14
    Stop ring e 14

    2227214

    $10.00In stock

02Fits

Fits these machines

2 machines · 1 IMER parts book

From IMER parts book 3228768 r12 (2019-02).

03Where it sits

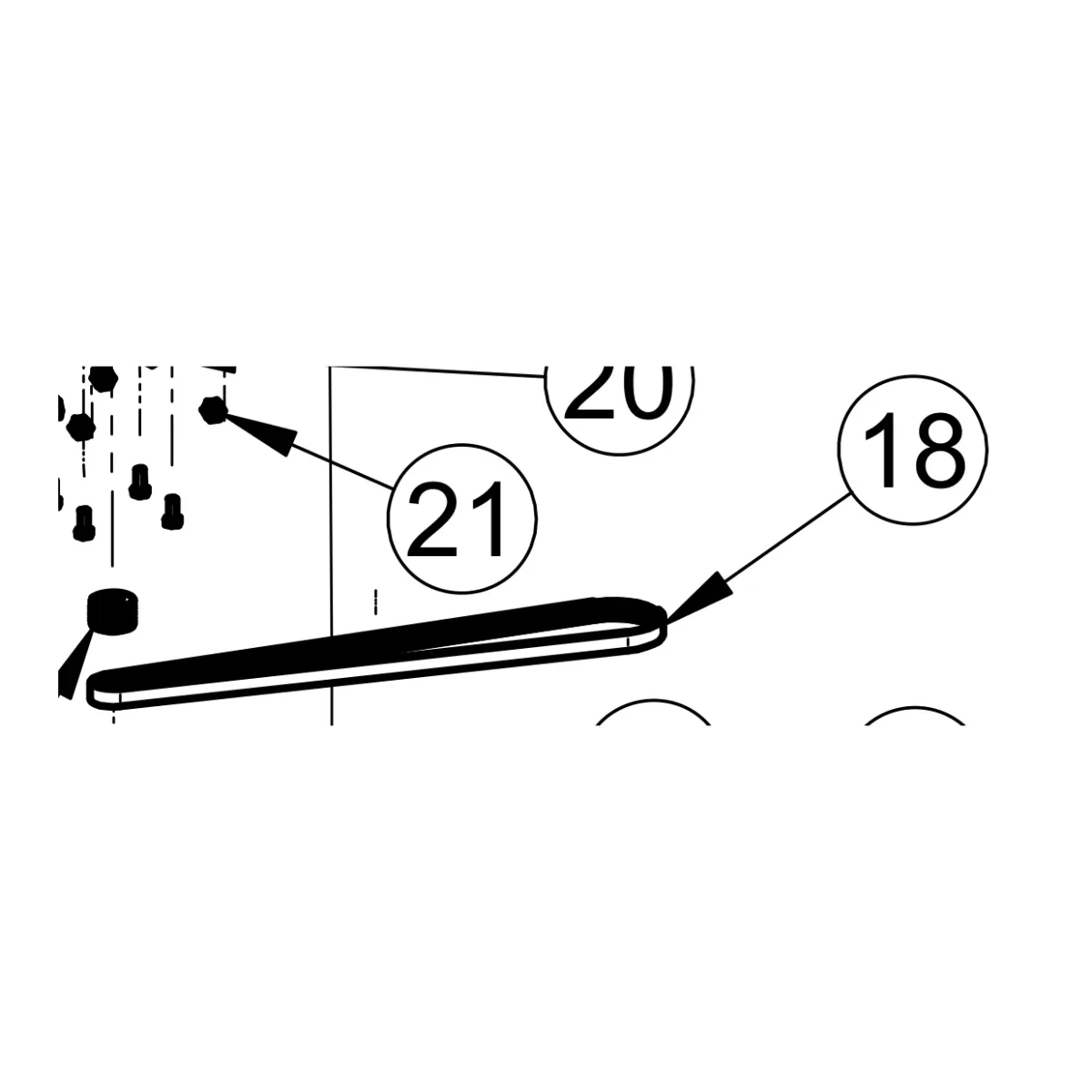

Ref 18 on the Syntesi 300 EL drawing

Open full diagram →
Syntesi 300 EL — Machine Structure (Syntesi 300-350), parts list
RefPart no.NamePrice
13209021FrameIn stock, $769.00
23228747Wheel AxleIn stock, $474.00
33209022ArmIn stock, $770.00
43210691Gear BoxCod. 1105752 - 1105801 - 1105802In stock, $1,008.00
43210475Gear BoxCod. 1105750 - 1105755 - 1105800 - 1105803 - 1105805In stock, $983.00
53209311Complete Tank AssemblyCod. 1105750 - 1105752 - 1105755In stock, $1,184.00
53206635Complete Tank AssemblyCod. 1105800 - 1105801 - 1105802 - 1105803 - 1105805In stock, $1,225.00
63209786Drum Movement Reduction UnitIn stock, $358.00
73209429CoverRequest price
83228750HandwheelIn stock, $182.00
93234565MotorCod. 1105750 - 1105800In stock, $634.00
93210697MotorCod. 1105803Request price
93226678MotorCod. 1105752Request price
93228383MotorCod. 1105801Request price
93209560MotorCod. 1105755 - 1105805Request price
93210674MotorCod. 1105802In stock, $950.00
103209006Motor SupportIn stock, $63.00
113228748Tow BarIn stock, $104.00
123209005GuardIn stock, $40.00
133229076Electric PanelCod. 1105750 - 1105800In stock, $207.00
133210699Electric PanelCod. 1105803Request price
133209025Electric PanelCod. 1105752Request price
133228320Electric PanelCod. 1105755 - 1105805Request price
133231997Electric PanelCod. 1105801Request price
133210677Electric PanelCod. 1105802In stock, $461.00
142227214Stop Ring E 14In stock, $10.00
153208770BushingIn stock, $16.00
163209178Washer D. 10x30x4In stock, $10.00
173211175Rivet Stavex 4.8In stock, $10.00
183235727Belt220V/50HzIn stock, $44.00
183236052Belt115V/60HzRequest price
192222002Bolt M6x16In stock, $10.00
202222060Bolt M8x20In stock, $10.00
212223570Nut M8In stock, $10.00
223230876Ground Cable 300 mmRequest price
233210467Drum Locking ScrewIn stock, $48.00
243210466Washer D. 61x19x8In stock, $13.00
253208773GearIn stock, $117.00
263209009SupportIn stock, $32.00
271222694Bolt M10x110Request price
282226503Split Pin D. 8x63Request price
292211250WheelIn stock, $68.00
302223920Self-Locking Nut M10In stock, $10.00
312222056Bolt M10x25In stock, $10.00
322230350Greaser M8x1.25In stock, $10.00
333228749Arm ClosureIn stock, $24.00
343208776Key 14x9x25In stock, $10.00
352222465Bolt M5x15In stock, $10.00
363206748Knob M10In stock, $15.00
373225036Stop Ring E 20Request price
382224220Washer D. 10x40In stock, $10.00
393208789Shock AbsorberIn stock, $11.00
403228116Key 5x5x16In stock, $10.00
413208828PulleyIn stock, $49.00
422222190Bolt M8x40In stock, $10.00
432222154Bolt M10x120In stock, $10.00
443225750Bolt M6x10In stock, $10.00
452227205Stop Ring E 50In stock, $10.00
463208790Shock AbsorberIn stock, $10.00
473210606Bolt M10x160In stock, $10.00
482223920Self-Locking Nut M10In stock, $10.00

04Specifications

Part details

Part number
3235727(3235-727)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure (Syntesi 300-350)
Fits
2 machines

This belt is a genuine IMER part, part number 3235727. The IMER Syntesi 190-250-300-350 EL parts book lists it as ref. 18 in Tav. 1/B, Machine Structure (Syntesi 300-350), with the note 220V/50 Hz; the same row gives belt 3236052 for 115V/60Hz machines. The Syntesi 190-250 table (Tav. 1/A) lists belt 3208791 instead.

The Syntesi manual describes the drive: the electric motor sets the reduction unit in motion via a poly-V belt.

Check the voltage and frequency of your machine before you order. For a 115V/60Hz Syntesi 300 or 350 EL the parts book gives belt 3236052.

05Used with

Often replaced together

Wear parts next to it on the same drawing
  • 2227214

    Stop ring e 14

    Ref 14 on the same drawing

    $10.00

    In stock

  • 3228116

    Key 5×5×16

    Ref 40 on the same drawing

    $10.00

    In stock

  • 3209178

    Washer d. 10×30×4

    Ref 16 on the same drawing

    $10.00

    In stock

  • 3208770

    Bushing

    Ref 15 on the same drawing

    $16.00

    In stock

06Documents

Parts books

Answers

Questions about this part

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER machines does part 3235727 fit?

The IMER parts book lists it in Tav. 1/B, the machine structure of the Syntesi 300 EL and 350 EL, with the note 220V/50 Hz. The Syntesi 190 EL and 250 EL use belt 3208791.

Which belt does a 115V/60Hz Syntesi 300 or 350 EL use?

The same parts-book row gives belt 3236052 for 115V/60Hz machines.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
