Motor for IMER Syntesi 300 EL and Syntesi 350 EL — IMER parts diagram, ref 9

01Where it fits

Where this part sits on your machine

Also on this drawing

All 60 parts on Drawing 1/B, Machine Structure (Syntesi 300-350)
  • 9
    Motor

    3234565

    $634.00In stock

  • 9
    Motor

    3228383

    $985.00In stock

  • 9
    Motor

    3210674

    $950.00In stock

  • 40
    Key 5×5×16

    3228116

    $10.00In stock

  • 15
    Bushing

    3208770

    $16.00In stock

  • 46
    Shock absorber

    3208790

    $10.00In stock

02Fits

Fits these machines

2 machines · 1 IMER parts book

From IMER parts book 3228768 r12 (2019-02).

03Where it sits

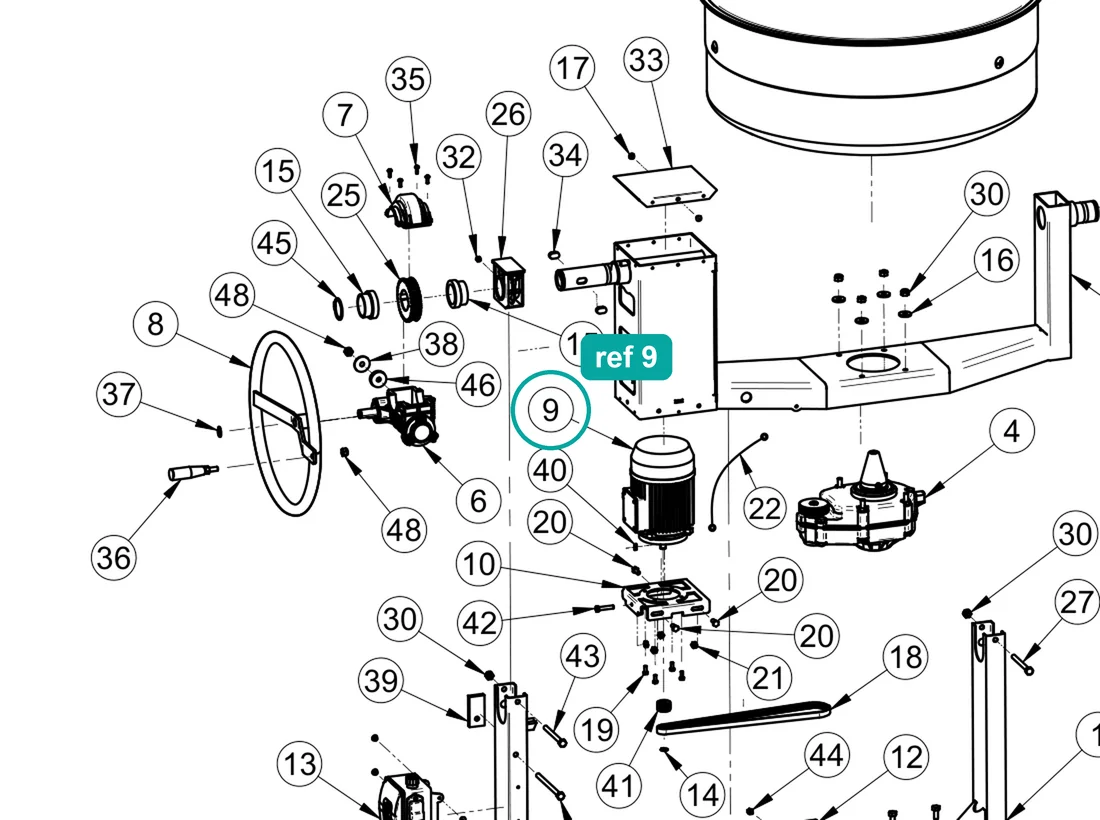

Ref 9 on the Syntesi 300 EL drawing

Open full diagram →
Syntesi 300 EL — Machine Structure (Syntesi 300-350), parts list
RefPart no.NamePrice
13209021FrameIn stock, $769.00
23228747Wheel AxleIn stock, $474.00
33209022ArmIn stock, $770.00
43210691Gear BoxCod. 1105752 - 1105801 - 1105802In stock, $1,008.00
43210475Gear BoxCod. 1105750 - 1105755 - 1105800 - 1105803 - 1105805In stock, $983.00
53209311Complete Tank AssemblyCod. 1105750 - 1105752 - 1105755In stock, $1,184.00
53206635Complete Tank AssemblyCod. 1105800 - 1105801 - 1105802 - 1105803 - 1105805In stock, $1,225.00
63209786Drum Movement Reduction UnitIn stock, $358.00
73209429CoverNot sold onlineAsk a parts specialist
83228750HandwheelIn stock, $182.00
93234565MotorCod. 1105750 - 1105800In stock, $634.00
93210697MotorCod. 1105803Not sold onlineAsk a parts specialist
93226678MotorCod. 1105752Not sold onlineAsk a parts specialist
93228383MotorCod. 1105801In stock, $985.00
93209560MotorCod. 1105755 - 1105805In stock, $869.00
93210674MotorCod. 1105802In stock, $950.00
103209006Motor SupportIn stock, $63.00
113228748Tow BarIn stock, $104.00
123209005GuardIn stock, $40.00
133229076Electric PanelCod. 1105750 - 1105800In stock, $207.00
133210699Electric PanelCod. 1105803Not sold onlineAsk a parts specialist
133209025Electric PanelCod. 1105752In stock, $221.00
133228320Electric PanelCod. 1105755 - 1105805In stock, $337.00
133231997Electric PanelCod. 1105801In stock, $257.00
133210677Electric PanelCod. 1105802In stock, $461.00
142227214Stop Ring E 14In stock, $10.00
153208770BushingIn stock, $16.00
163209178Washer D. 10x30x4In stock, $10.00
173211175Rivet Stavex 4.8In stock, $10.00
183235727Belt220V/50HzIn stock, $44.00
183236052Belt115V/60HzNot sold onlineAsk a parts specialist
192222002Bolt M6x16In stock, $10.00
202222060Bolt M8x20In stock, $10.00
212223570Nut M8In stock, $10.00
223230876Ground Cable 300 mmNot sold onlineAsk a parts specialist
233210467Drum Locking ScrewIn stock, $48.00
243210466Washer D. 61x19x8In stock, $13.00
253208773GearIn stock, $117.00
263209009SupportIn stock, $32.00
271222694Bolt M10x110Not sold onlineAsk a parts specialist
282226503Split Pin D. 8x63In stock, $10.00
292211250WheelIn stock, $68.00
302223920Self-Locking Nut M10In stock, $10.00
312222056Bolt M10x25In stock, $10.00
322230350Greaser M8x1.25In stock, $10.00
333228749Arm ClosureIn stock, $24.00
343208776Key 14x9x25In stock, $10.00
352222465Bolt M5x15In stock, $10.00
363206748Knob M10In stock, $15.00
373225036Stop Ring E 20Not sold onlineAsk a parts specialist
382224220Washer D. 10x40In stock, $10.00
393208789Shock AbsorberIn stock, $11.00
403228116Key 5x5x16In stock, $10.00
413208828PulleyIn stock, $49.00
422222190Bolt M8x40In stock, $10.00
432222154Bolt M10x120In stock, $10.00
443225750Bolt M6x10In stock, $10.00
452227205Stop Ring E 50In stock, $10.00
463208790Shock AbsorberIn stock, $10.00
473210606Bolt M10x160In stock, $10.00
482223920Self-Locking Nut M10In stock, $10.00

04Specifications

Part details

Part number
3209560(3209-560)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure (Syntesi 300-350)
Fits
2 machines

This is genuine IMER part number 3209560. The official IMER parts books list it as "Motor" and show it for the IMER Syntesi 300 EL and Syntesi 350 EL.

Parts-book listings: Syntesi 300 EL, table 1/B (Machine Structure (Syntesi 300-350)), ref 9; Syntesi 350 EL, table 1/B (Machine Structure (Syntesi 300-350)), ref 9.

Check that the part number on your old part or in your machine's parts list matches 3209560 before ordering, or contact us with your machine's model and serial number.

05Used with

Often replaced together

Wear parts next to it on the same drawing
  • 3228116

    Key 5×5×16

    Ref 40 on the same drawing

    $10.00

    In stock

  • 3208770

    Bushing

    Ref 15 on the same drawing

    $16.00

    In stock

  • 2224220

    Washer d. 10×40

    Ref 38 on the same drawing

    $10.00

    In stock

  • 3208776

    Key 14×9×25

    Ref 34 on the same drawing

    $10.00

    In stock

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
