Guard – genuine IMER part 3209005

01Where it fits

Where this part sits on your machine

Also on this drawing

All 60 parts on Drawing 1/B, Machine Structure (Syntesi 300-350)
  • 44
    Bolt TEFR M6×10

    3225750

    $10.00In stock

  • 18
    Belt

    3235727

    $44.00In stock

  • 21
    Nut M8

    2223570

    $10.00In stock

  • 1
    Frame

    3209021

    $769.00In stock

  • 14
    Stop ring e 14

    2227214

    $10.00In stock

  • 20
    Bolt M8×20

    2222060

    $10.00In stock

02Fits

Fits these machines

2 machines · 1 IMER parts book

From IMER parts book 3228768 r12 (2019-02).

03Where it sits

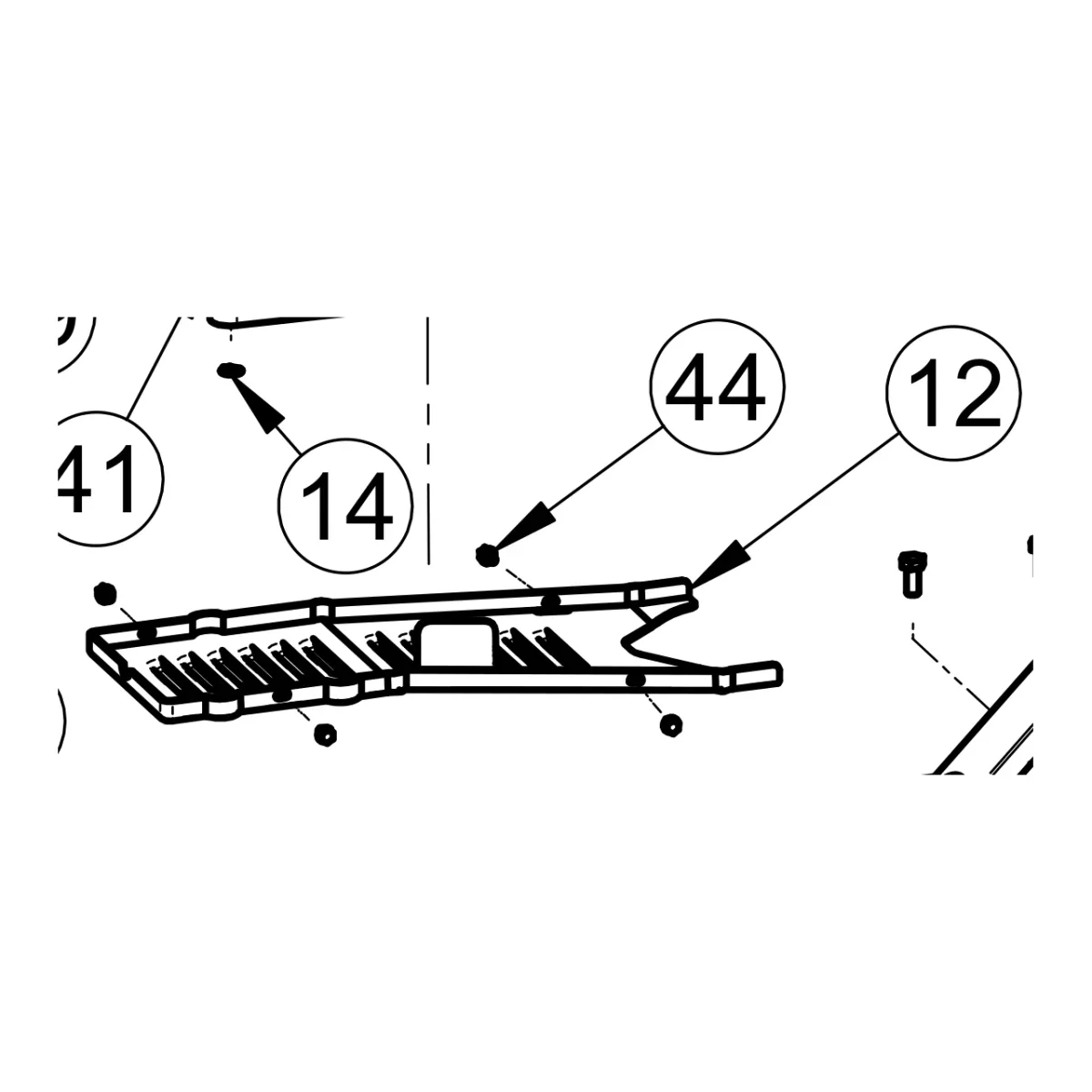

Ref 12 on the Syntesi 300 EL drawing

Open full diagram →
Syntesi 300 EL — Machine Structure (Syntesi 300-350), parts list
RefPart no.NamePrice
13209021FrameIn stock, $769.00
23228747Wheel AxleIn stock, $474.00
33209022ArmIn stock, $770.00
43210691Gear BoxCod. 1105752 - 1105801 - 1105802In stock, $1,008.00
43210475Gear BoxCod. 1105750 - 1105755 - 1105800 - 1105803 - 1105805In stock, $983.00
53209311Complete Tank AssemblyCod. 1105750 - 1105752 - 1105755In stock, $1,184.00
53206635Complete Tank AssemblyCod. 1105800 - 1105801 - 1105802 - 1105803 - 1105805In stock, $1,225.00
63209786Drum Movement Reduction UnitIn stock, $358.00
73209429CoverRequest price
83228750HandwheelIn stock, $182.00
93234565MotorCod. 1105750 - 1105800In stock, $634.00
93210697MotorCod. 1105803Request price
93226678MotorCod. 1105752Request price
93228383MotorCod. 1105801Request price
93209560MotorCod. 1105755 - 1105805Request price
93210674MotorCod. 1105802In stock, $950.00
103209006Motor SupportIn stock, $63.00
113228748Tow BarIn stock, $104.00
123209005GuardIn stock, $40.00
133229076Electric PanelCod. 1105750 - 1105800In stock, $207.00
133210699Electric PanelCod. 1105803Request price
133209025Electric PanelCod. 1105752Request price
133228320Electric PanelCod. 1105755 - 1105805Request price
133231997Electric PanelCod. 1105801Request price
133210677Electric PanelCod. 1105802In stock, $461.00
142227214Stop Ring E 14In stock, $10.00
153208770BushingIn stock, $16.00
163209178Washer D. 10x30x4In stock, $10.00
173211175Rivet Stavex 4.8In stock, $10.00
183235727Belt220V/50HzIn stock, $44.00
183236052Belt115V/60HzRequest price
192222002Bolt M6x16In stock, $10.00
202222060Bolt M8x20In stock, $10.00
212223570Nut M8In stock, $10.00
223230876Ground Cable 300 mmRequest price
233210467Drum Locking ScrewIn stock, $48.00
243210466Washer D. 61x19x8In stock, $13.00
253208773GearIn stock, $117.00
263209009SupportIn stock, $32.00
271222694Bolt M10x110Request price
282226503Split Pin D. 8x63Request price
292211250WheelIn stock, $68.00
302223920Self-Locking Nut M10In stock, $10.00
312222056Bolt M10x25In stock, $10.00
322230350Greaser M8x1.25In stock, $10.00
333228749Arm ClosureIn stock, $24.00
343208776Key 14x9x25In stock, $10.00
352222465Bolt M5x15In stock, $10.00
363206748Knob M10In stock, $15.00
373225036Stop Ring E 20Request price
382224220Washer D. 10x40In stock, $10.00
393208789Shock AbsorberIn stock, $11.00
403228116Key 5x5x16In stock, $10.00
413208828PulleyIn stock, $49.00
422222190Bolt M8x40In stock, $10.00
432222154Bolt M10x120In stock, $10.00
443225750Bolt M6x10In stock, $10.00
452227205Stop Ring E 50In stock, $10.00
463208790Shock AbsorberIn stock, $10.00
473210606Bolt M10x160In stock, $10.00
482223920Self-Locking Nut M10In stock, $10.00

04Specifications

Part details

Part number
3209005(3209-005)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure (Syntesi 300-350)
Fits
2 machines

This guard is a genuine IMER OEM part, part number 3209005.

The IMER Syntesi parts book lists it as Guard, ref. 12, in Tav. 1/B Machine Structure, the table for the Syntesi 300 and 350. On the Syntesi 190 and 250 (Tav. 1/A) it lists guard 3208795 in this position instead. Our product records describe 3209005 as the mixer's plastic gearbox cover.

Replace it if the original guard is cracked, broken or missing.

05Used with

Often replaced together

Wear parts next to it on the same drawing
  • 2227214

    Stop ring e 14

    Ref 14 on the same drawing

    $10.00

    In stock

  • 3228116

    Key 5×5×16

    Ref 40 on the same drawing

    $10.00

    In stock

  • 3209178

    Washer d. 10×30×4

    Ref 16 on the same drawing

    $10.00

    In stock

  • 3208770

    Bushing

    Ref 15 on the same drawing

    $16.00

    In stock

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER machines does part 3209005 fit?

The IMER parts book lists it for the Syntesi 300 EL and Syntesi 350 EL mixers, as Guard ref. 12 in the machine structure (Tav. 1/B). The Syntesi 190 EL and 250 EL use guard 3208795.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
