Bolt M5×15 – genuine IMER part 2222465

01Where it fits

Where this part sits on your machine

+ 3 more machines

Also on this drawing

All 20 parts on Drawing 7, Electric Panel
  • 10
    Power supply

    3228251

    $77.00In stock

  • 12
    Screw TCB PH 7687 5×20 z

    3207152

    $10.00In stock

  • 18
    Electric panel

    3231700

    $361.00In stock

  • 1
    Electric motor

    3234570

    $965.00In stock

  • 1
    Electric motor 220V 60Hz

    3231950

    $921.00In stock

  • 5
    Grower washer D.5

    1224780

    $10.00In stock

02Fits

Fits these machines

7 machines · 4 IMER parts books

From IMER parts books 3231790 r07 (2018-09), 3231378 r05 (2019-06), 3228768 r12 (2019-02), 3209290 r11 (2019-02).

03Where it sits

Ref 6 on the Combicut 350 iPower drawing

Open full diagram →
Combicut 350 iPower — Electric Panel, parts list
RefPart no.NamePrice
13234570Electric Motor230V 50HzIn stock, $965.00
13231950Electric Motor220V 60HzIn stock, $921.00
23231483Motor PulleyIn stock, $130.00
32227270Stop Ring 7435 E/24In stock, $10.00
42223352Nut 5588 M5In stock, $10.00
51224780Grower Washer D.5In stock, $10.00
62222465Trilobular Screw TC PH M5x15In stock, $10.00
73231429Panel Support PlateRequest price
83231442GasketIn stock, $22.00
93231995Capacitor 60µF 450VRequest price
103228251Laser Power SupplyIn stock, $77.00
113231770Electrical EnclosureIn stock, $33.00
123207152Screw TCB PH 7687 5x20 ZIn stock, $10.00
133201217Cable Clamp PG11Request price
143209692Cable Clamp PG13.5Request price
153209337SwitchIn stock, $70.00
163206170SwitchIn stock, $53.00
173206171Switch ProtectionRequest price
183231700Electric Panel220-230V 50/60HzIn stock, $361.00
193203504Plug 2P+GNDIn stock, $55.00

04Specifications

Part details

Part number
2222465(2222-465)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Electric Panel
Fits
7 machines

This M5x15 bolt (trilobular TC PH screw) is a genuine IMER part, part number 2222465.

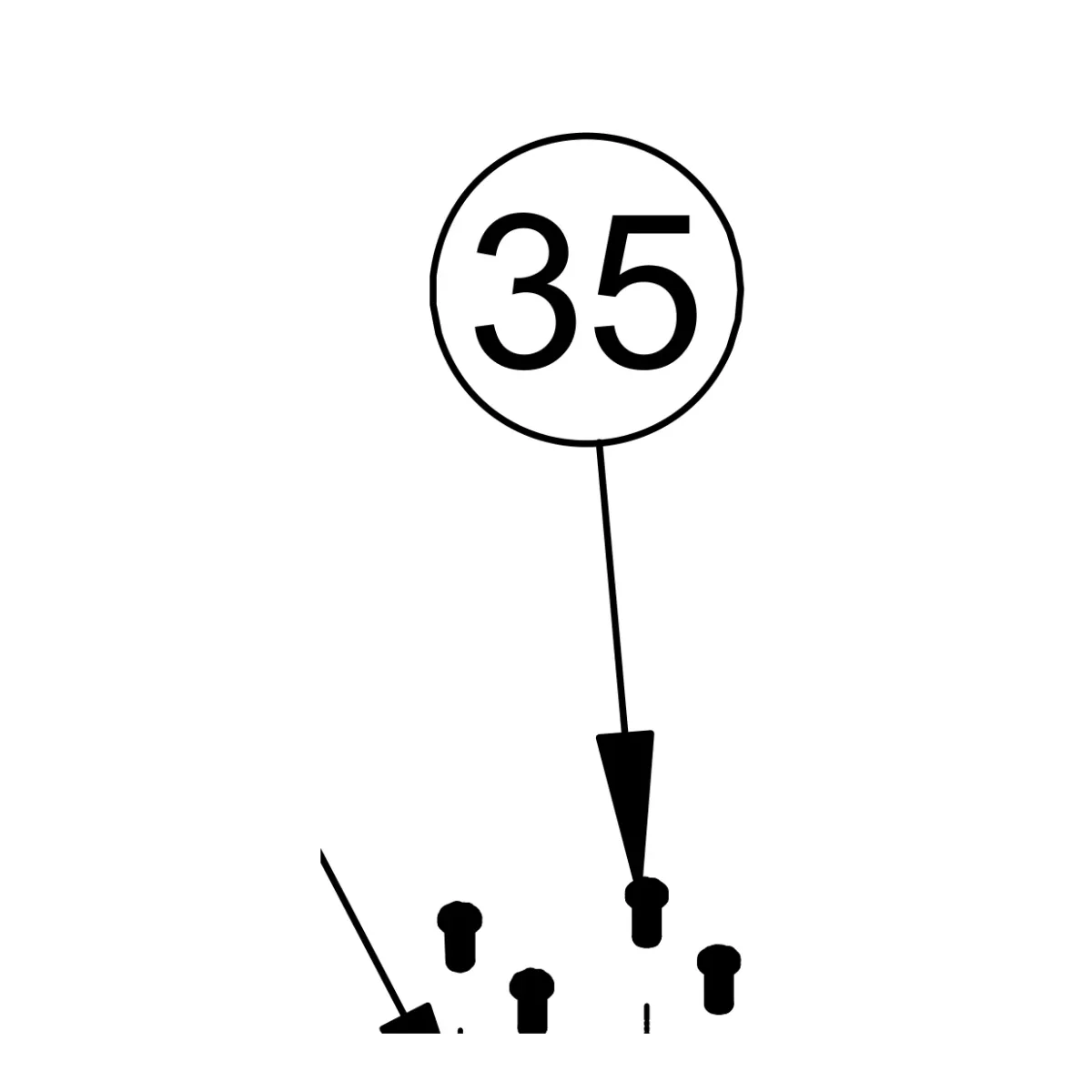

IMER parts books list 2222465 in these machines: - Syntesi 300 EL and 350 EL: Tav. 1/B Machine Structure, ref. 35 (TRILOB. TC PH M5X15). Syntesi 350 EL model 1105802 (115V/60Hz) is sold in the USA as the IMER Multi-Mix 350. - Syntesi 190 EL, 250 EL, 300 EL and 350 EL: drum tipping reduction unit 3209786 (Tav. 4, ref. 15) - Workman II 250 mixer: drum reduction unit 3209786 (Table 3, ref. 15) - Smart Cut 350 14" saw: arm assembly (Tav. 5, ref. 3) - C 350 iPower saw: electric panel (Tav. 7, ref. 6)

Check the part number against the parts list for your machine before ordering.
