Screw TB M12×25 – genuine IMER part 2222193

01Where it fits

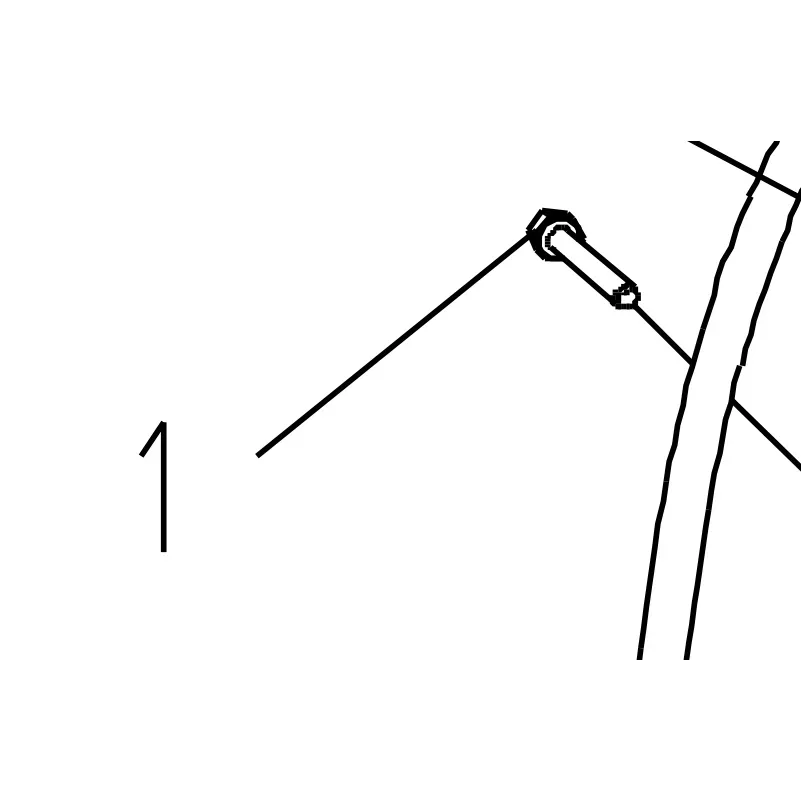

Where this part sits on your machine

Also on this drawing

All 5 parts on Drawing 3, Steel Drum
  • 1
    Paddle

    2250069

    $89.00In stock

  • 1
    Paddle

    2250087

    $117.00In stock

  • 1
    Paddle

    2250088

    $99.00In stock

  • 1
    Paddle

    2250089

    $97.00In stock

02Fits

Fits these machines

6 machines · 3 IMER parts books

From IMER parts books 3210929 r01 (2012-12), 3228768 r12 (2019-02), 3210884 r05 (2012-12).

03Where it sits

Ref 2 on the Syntesi 190 EL drawing

Open full diagram →
Syntesi 190 EL — Steel Drum, parts list
RefPart no.NamePrice
12250069PaddleCod. 1105650 - 1105655In stock, $89.00
12250087PaddleCod. 1105700 - 1105703 - 1105705In stock, $117.00
12250088PaddleCod. 1105750 - 1105755In stock, $99.00
12250089PaddleCod. 1105800 - 1105803 - 1105805In stock, $97.00
22222193Bolt M12x25In stock, $10.00

04Specifications

Part details

Part number
2222193(2222-193)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Frame and Drum Assembly
Fits
6 machines

The Screw TB M12x25 is a genuine IMER OEM part, part number 2222193. The IMER parts books list it on six mixers. On the Wheelman and Minuteman it appears as Screw TB M12x25 in the Frame and Drum Assembly. On the Syntesi 190 EL, 250 EL, 300 EL and 350 EL it appears as Bolt TB M12x25 in the Steel Drum table (TAV. 3).

It is an M12x25 fastener used in the drum assembly of these machines. Four of these bolts come with the IMER steel drum 2250719. Order by part number 2222193 to match the original fastener.

05Documents

Parts books

Guides

A guide for this part

Answers

Questions about the machines it fits

All answers

06Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

07Questions

Good to know

Which IMER machines does part 2222193 fit?

The IMER parts books list part 2222193 for the Wheelman and Minuteman (Frame and Drum Assembly) and the Syntesi 190 EL, 250 EL, 300 EL and 350 EL (Steel Drum, TAV. 3).

What size is screw 2222193?

The parts books list it as TB M12x25.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
Ask about the fitCall +1 (307) 301-7723
