01Where it fits
Where this part sits on your machine
Also on this drawing
All 58 parts on Drawing 1/A, Machine Structure (Syntesi 190-250)02Fits
Fits these machines
6 machines · 3 IMER parts books
From IMER parts books 3225890 r11 (2018-09), 3228768 r12 (2019-02), 3209290 r11 (2019-02).
03Where it sits

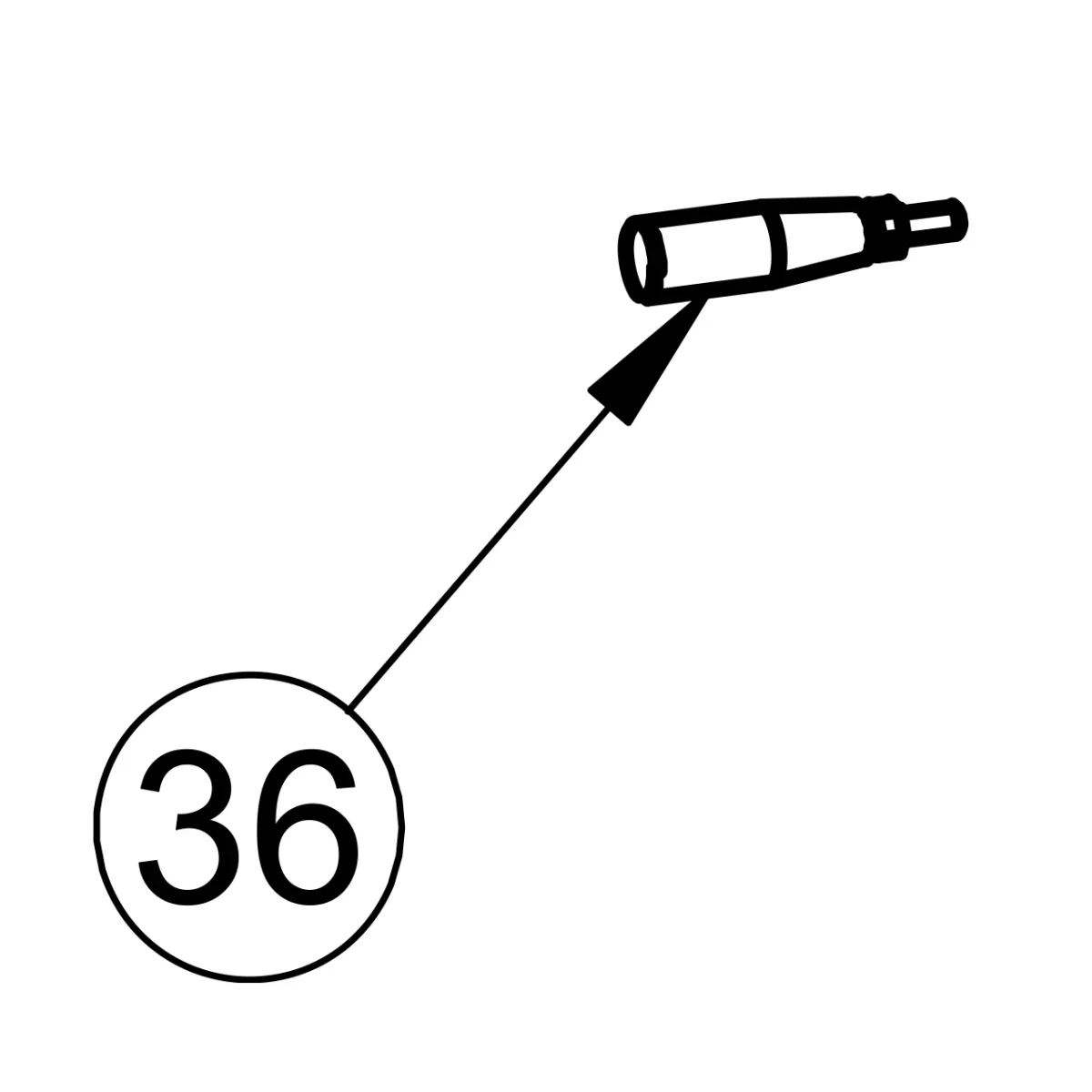

Ref 36 on the Syntesi 190 EL drawing
04Specifications
Part details
This M10 knob is a genuine IMER part, part number 3206748.
The IMER Syntesi parts book lists it as ref. 36 in the machine structure tables for the Syntesi 190 EL and 250 EL (TAV. 1/A) and the Syntesi 300 EL and 350 EL (TAV. 1/B). The IMER Workman II 250 parts book lists the same part number as ref. 44, "dump handle", on drawing 1.3, and the Small 50 parts book lists it as a 28x88 M10 sleeve handle in bag crusher 1107511 (TAV. 16, ref. 3).
Check that the part number in your machine's parts list matches 3206748 before ordering, or contact us with your machine's model and serial number.
05Used with
Often replaced together
Wear parts next to it on the same drawing
06Documents
Parts books
Guides
Guides for this part
Maintenance
IMER Mixer and Pump Cleaning, Storage and Winter Care
End-of-shift cleaning, freeze draining and storage steps from the IMER manuals for the Mix 750, Mix 120 Plus, Step-Up 120, Small 50, Koine 4 and more.
5 min read
Answers
Questions about the machines it fits
07Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
