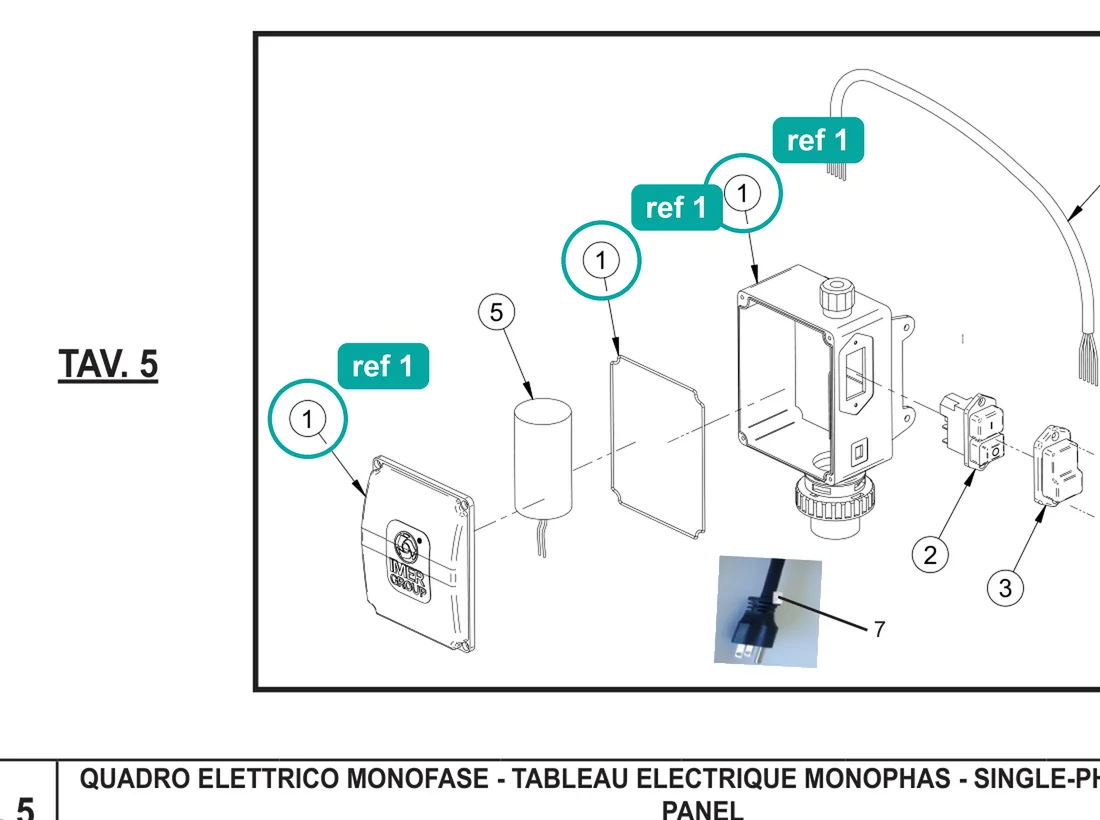

Junction Box for IMER Mixers — IMER parts diagram, ref 1

01Where it fits

Where this part sits on your machine

Also on this drawing

All 20 parts on Drawing 5, Single-Phase Electrical Panel
  • 5
    Capacitor 450V 35uF

    3229078

    $31.00In stock

  • 5
    Capacitor 250V 120uF

    3213013

    $96.00In stock

  • 5
    Capacitor 450V 60uF

    3229080

    $31.00In stock

  • 5
    Capacitor 250V 110uF

    3210707

    $164.00In stock

  • 5
    Capacitor 450V 50uF

    3209504

    $31.00In stock

  • 5
    Capacitor 100 µF 250V

    3229797

    $85.00In stock

02Fits

Fits these machines

4 machines · 1 IMER parts book

From IMER parts book 3228768 r12 (2019-02).

03Where it sits

Ref 1 on the Syntesi 190 EL drawing

Open full diagram →
Syntesi 190 EL — Single-Phase Electrical Panel, parts list
RefPart no.NamePrice
13228752Junction BoxCod. 1105650 - 1105700In stock, $144.00
13228754Junction BoxCod. 1105703Not sold onlineAsk a parts specialist
13228753Junction BoxCod. 1105750 - 1105752 - 1105800 - 1105801 (1105800-A Australia version)In stock, $160.00
13228755Junction BoxCod. 1105803Not sold onlineAsk a parts specialist
13234949Junction BoxCod. 1105802In stock, $122.00
23209337SwitchCod. 1105650 - 1105700 - 1105750 - 1105752 - 1105800 - 1105801 (1105800-A Australia version)In stock, $70.00
23210872SwitchCod. 1105703 - 1105803In stock, $80.00
23234950SwitchCod. 1105802In stock, $122.00
33209340Transparent Protection CoverGB text prints 'Leakage Protection'; uncertain translationNot sold onlineAsk a parts specialist
43210116BoltIn stock, $10.00
53229078Capacitor 450V 35uFCod. 1105650 - 1105700In stock, $31.00
53213013Capacitor 250V 120uFCod. 1105703In stock, $96.00
53229080Capacitor 450V 60uFCod. 1105750 - 1105800In stock, $31.00
53210707Capacitor 250V 110uFCod. 1105803In stock, $164.00
53209504Capacitor 450V 50uFCod. 1105752 (1105800-A Australia version)In stock, $31.00
53231995Capacitor 450V 60uFCod. 1105801Not sold onlineAsk a parts specialist
53229797Capacitor 250V 100uFCod. 1105802In stock, $85.00
63226030Electric CableCod. 1105650 - 1105700 - 1105750 - 1105752 - 1105800 - 1105801 - 1105800/AIn stock, $41.00
63228762Electric CableCod. 1105703 - 1105803 - 1105802In stock, $122.00
73209542USA PlugCod. 1105802In stock, $27.00

04Specifications

Part details

Part number
3228753(3228-753)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Single-Phase Electrical Panel
Fits
4 machines

This is genuine IMER part number 3228753. The official IMER parts books list it as "Junction Box" and show it for the IMER Syntesi 190 EL, Syntesi 250 EL, Syntesi 300 EL and 1 more models.

Parts-book listings: Syntesi 190 EL, table 5 (Single-Phase Electrical Panel), ref 1; Syntesi 250 EL, table 5 (Single-Phase Electrical Panel), ref 1; Syntesi 300 EL, table 5 (Single-Phase Electrical Panel), ref 1; Syntesi 350 EL, table 5 (Single-Phase Electrical Panel), ref 1.

Check that the part number on your old part or in your machine's parts list matches 3228753 before ordering, or contact us with your machine's model and serial number.

05Documents

Parts books

Answers

Questions about the machines it fits

All answers

06Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
