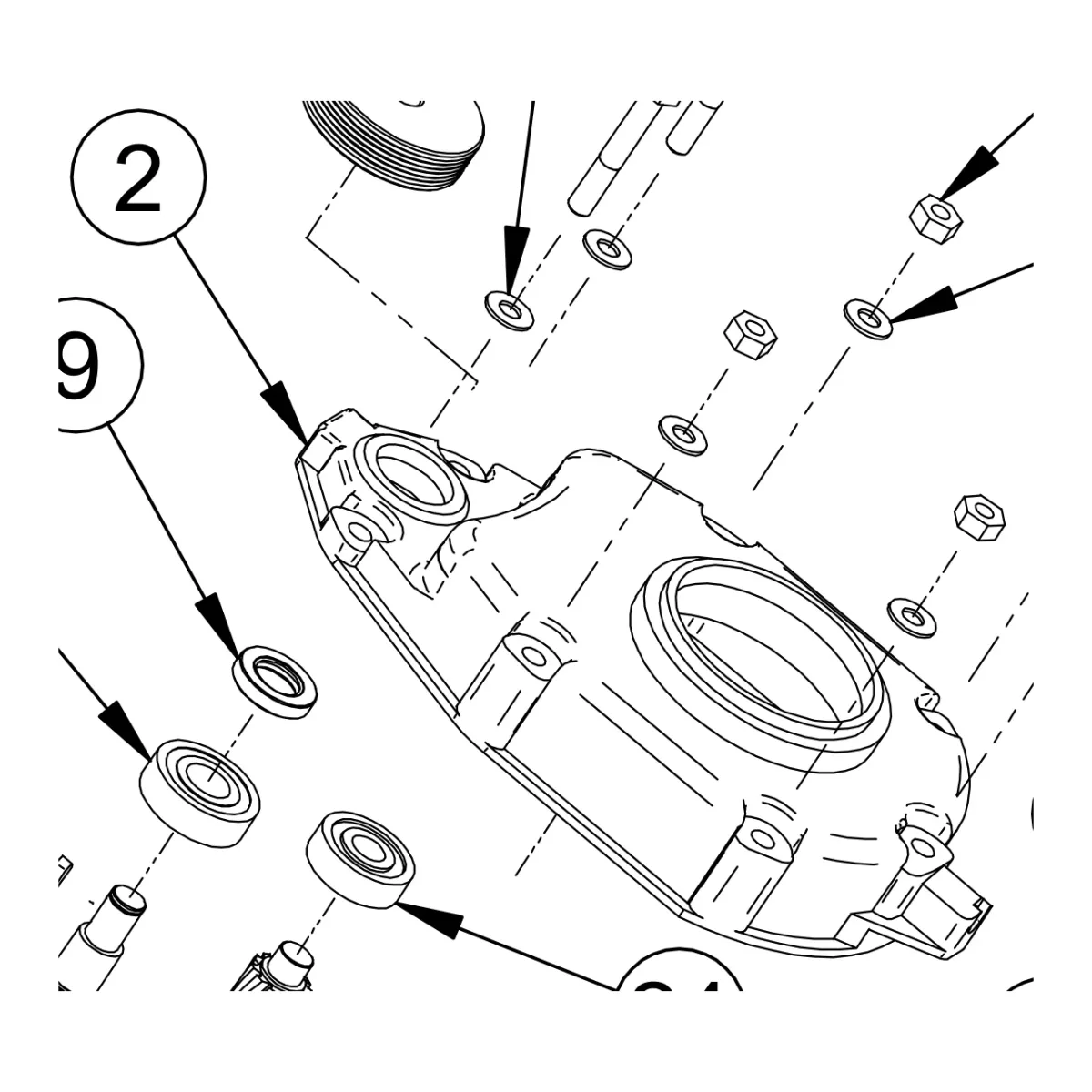

Gear box casing – genuine IMER part 3209515

01Where it fits

Where this part sits on your machine

Also on this drawing

All 30 parts on Drawing 2/B, Gear Box (Syntesi 300-350)
  • 9
    Gearbox oil seal 35×20×7

    3200094

    $10.00In stock

  • 20
    Pulley D.70

    3235725

    $39.00In stock

  • 20
    Gear box pulley 115V/60Hz

    3210688

    $97.00In stock

  • 10
    Bearing 6204

    3208983

    $17.00In stock

  • 29
    Stop ring E15

    1227330

    $10.00In stock

  • 23
    Key 5×5×15

    2229250

    $10.00In stock

02Fits

Fits these machines

2 machines · 1 IMER parts book

From IMER parts book 3228768 r12 (2019-02).

03Where it sits

Ref 2 on the Syntesi 300 EL drawing

Open full diagram →
Syntesi 300 EL — Gear Box (Syntesi 300-350), parts list
RefPart no.NamePrice
13209514Gear Box CasingIn stock, $109.00
23209515Gear Box CasingIn stock, $124.00
33209801GearIn stock, $99.00
43209799ShaftIn stock, $82.00
53208975PinionIn stock, $63.00
63208970GearIn stock, $120.00
73210474Main ShaftIn stock, $163.00
83213180Pin D. 8x30In stock, $10.00
93200094Oil Seal 35x20x7In stock, $10.00
103208983Bearing 6204In stock, $17.00
113208966SpacerIn stock, $20.00
122227207Stop Ring E 55In stock, $10.00
132222148Bolt M10x65In stock, $10.00
142224340Washer D. 10x21In stock, $10.00
152223650Nut M10In stock, $10.00
162227320Stop Ring E 20In stock, $10.00
173213282Bearing 6208In stock, $45.00
182229259Key 6x6x14In stock, $10.00
193209811GasketIn stock, $16.00
203235725Pulley220V/50HzIn stock, $39.00
203210688Pulley115V/60HzIn stock, $97.00
212222145Bolt M10x80In stock, $10.00
223213178Key 10x8x20In stock, $10.00
232229250Key 5x5x15In stock, $10.00
243209682Bearing 6302In stock, $15.00
252222153Bolt M10x100Request price
262204569Bearing 6211In stock, $79.00
273213179Oil Seal 90x65x10In stock, $10.00
283213177Shear Pin D. 12x40In stock, $10.00
291227330Stop Ring E 15In stock, $10.00

04Specifications

Part details

Part number
3209515(3209-515)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Gear Box (Syntesi 300-350)
Fits
2 machines

This gear box casing is a genuine IMER part, part number 3209515.

In the Syntesi 190-250-300-350 EL parts book it is Gear Box Casing, ref. 2, in Tav. 2/B Gear Box 3210475, the table for the Syntesi 300 and 350. The same table also lists a second Gear Box Casing, part 3209514 (ref. 1). The Syntesi 190 and 250 gear box (Tav. 2/A) uses casing 3209681 at ref. 2.

Check that the part number in your machine's parts list matches 3209515 before ordering, or contact us with your machine's model and serial number.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
Ask about the fitCall +1 (307) 301-7723
