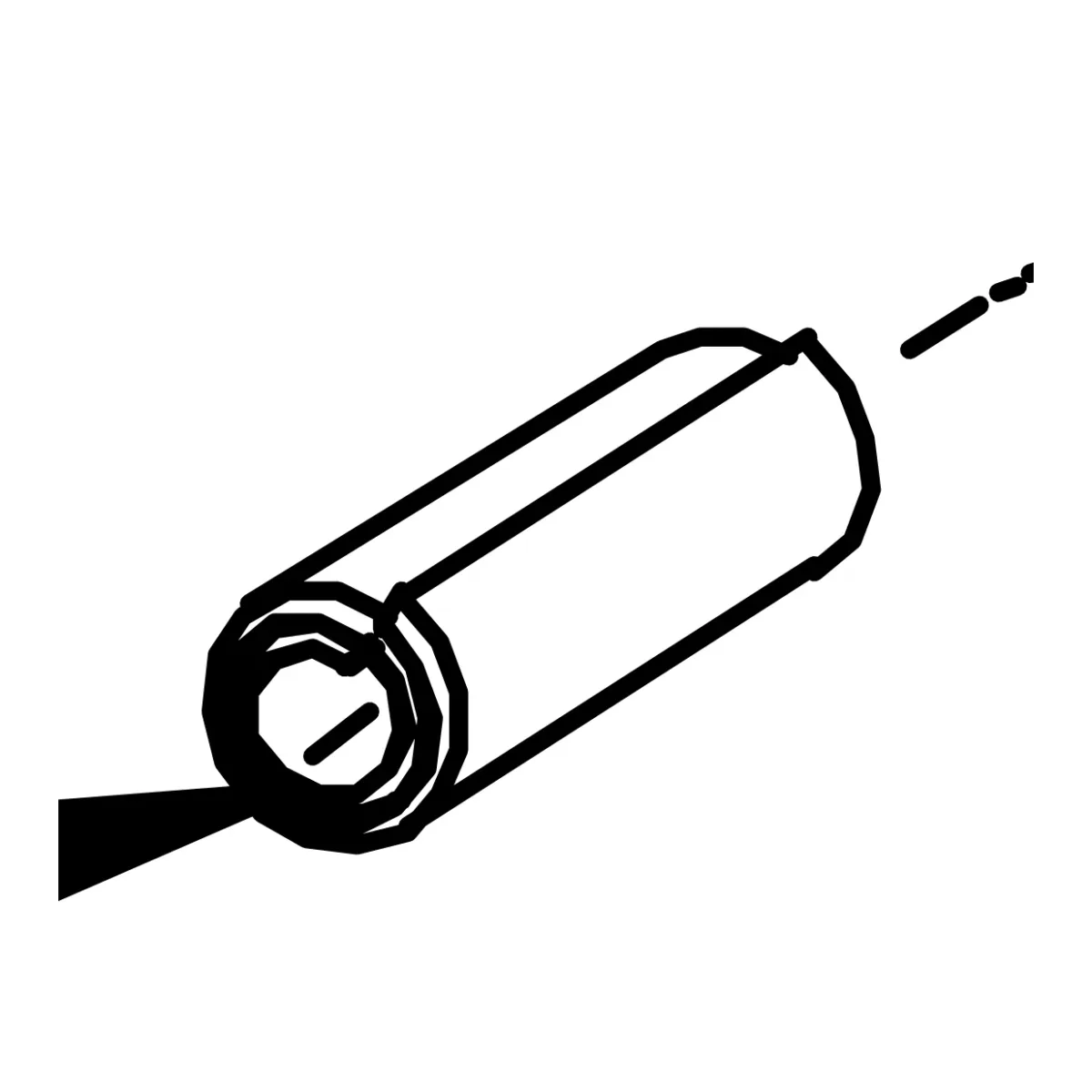

Gear box shear pin D.12×40 – genuine IMER part 3213177

01Where it fits

Where this part sits on your machine

Also on this drawing

All 30 parts on Drawing 2/B, Gear Box (Syntesi 300-350)
  • 22
    Key 10×8×20

    3213178

    $10.00In stock

  • 24
    Bearing 6302

    3209682

    $15.00In stock

  • 14
    Washer M10×20 z

    2224340

    $10.00In stock

  • 5
    Pinion Z11 M2

    3208975

    $63.00In stock

  • 21
    Screw M10×80

    2222145

    $10.00In stock

  • 26
    Bearing 6211

    2204569

    $79.00In stock

02Fits

Fits these machines

2 machines · 1 IMER parts book

From IMER parts book 3228768 r12 (2019-02).

03Where it sits

Ref 28 on the Syntesi 300 EL drawing

Open full diagram →
Syntesi 300 EL — Gear Box (Syntesi 300-350), parts list
RefPart no.NamePrice
13209514Gear Box CasingIn stock, $109.00
23209515Gear Box CasingIn stock, $124.00
33209801GearIn stock, $99.00
43209799ShaftIn stock, $82.00
53208975PinionIn stock, $63.00
63208970GearIn stock, $120.00
73210474Main ShaftIn stock, $163.00
83213180Pin D. 8x30In stock, $10.00
93200094Oil Seal 35x20x7In stock, $10.00
103208983Bearing 6204In stock, $17.00
113208966SpacerIn stock, $20.00
122227207Stop Ring E 55In stock, $10.00
132222148Bolt M10x65In stock, $10.00
142224340Washer D. 10x21In stock, $10.00
152223650Nut M10In stock, $10.00
162227320Stop Ring E 20In stock, $10.00
173213282Bearing 6208In stock, $45.00
182229259Key 6x6x14In stock, $10.00
193209811GasketIn stock, $16.00
203235725Pulley220V/50HzIn stock, $39.00
203210688Pulley115V/60HzIn stock, $97.00
212222145Bolt M10x80In stock, $10.00
223213178Key 10x8x20In stock, $10.00
232229250Key 5x5x15In stock, $10.00
243209682Bearing 6302In stock, $15.00
252222153Bolt M10x100Request price
262204569Bearing 6211In stock, $79.00
273213179Oil Seal 90x65x10In stock, $10.00
283213177Shear Pin D. 12x40In stock, $10.00
291227330Stop Ring E 15In stock, $10.00

04Specifications

Part details

Part number
3213177(3213-177)
Brand
IMER (genuine OEM)
Condition
New
Size
D.12×40 as listed in the parts book
Assembly
Gear Box (Syntesi 300-350)
Fits
2 machines

This shear pin D.12x40 is a genuine IMER part, part number 3213177. The IMER Syntesi 190-250-300-350 EL parts book lists it in Tav. 2/B, Gear Box [Syntesi 300-350] (code 3210475), ref. 28.

The same table lists the 115V/60Hz pulley 3210688. The 115V/60Hz Syntesi is model 1105802, sold in the USA as the IMER Multi-Mix 350. The Syntesi 190 and 250 gear box (Tav. 2/A) uses a different shear pin, part 2228360 (D.8X16). Check part number 3213177 against your machine's parts list before you order.

05Used with

Often replaced together

Wear parts next to it on the same drawing
  • 3213178

    Key 10×8×20

    Ref 22 on the same drawing

    $10.00

    In stock

  • 3209682

    Bearing 6302

    Ref 24 on the same drawing

    $15.00

    In stock

  • 2224340

    Washer M10×20 z

    Ref 14 on the same drawing

    $10.00

    In stock

  • 2204569

    Bearing 6211

    Ref 26 on the same drawing

    $79.00

    In stock

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
