01Where it fits
Where this part sits on your machine
Also on this drawing
All 18 parts on Drawing 2, Arm Assembly02Fits
Fits these machines
4 machines · 4 IMER parts books
From IMER parts books 3231790 r07 (2018-09), 3231378 r05 (2019-06), 3230425 r07 (2019-02), 3226875 r16 (2018-09).
03Where it sits

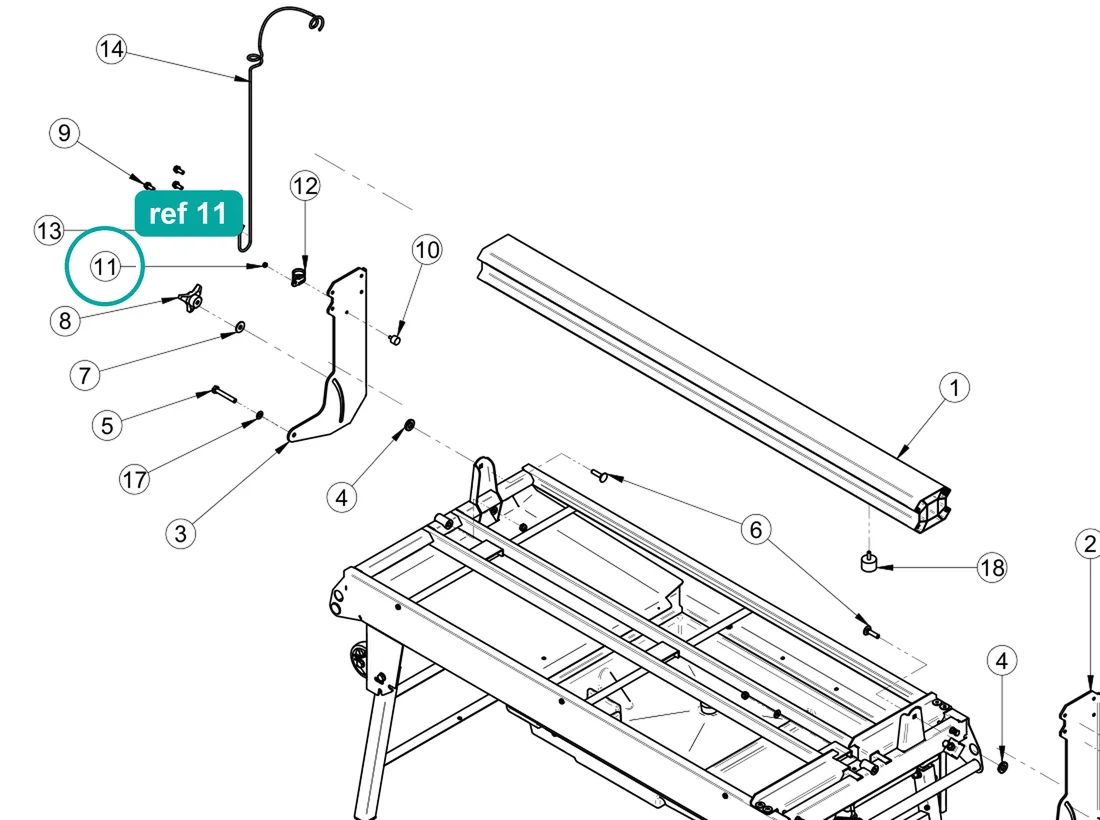

Ref 11 on the Combicut 350 iPower drawing
04Specifications
Part details
This is genuine IMER part number 3211470. The official IMER parts books list it as "Self-Locking Nut M6 Low" and show it for the IMER Step-Up 120, Mortarman 120 Plus, Masonry 350 Smart Cut and 1 more models.
Parts-book listings: Step-Up 120, table 14.3 (Mixer - Tank Protection), ref 19; Mortarman 120 Plus, table 2 (Tank), ref 38; Masonry 350 Smart Cut, table 6 (Disc Guard and Motor Assembly), ref 11; Combicut 350 iPower, table 2 (Arm Assembly), ref 11; Combicut 350 iPower, table 6 (Disc Guard And Motor Assembly), ref 5.
Check that the part number on your old part or in your machine's parts list matches 3211470 before ordering, or contact us with your machine's model and serial number.
05Used with
Often replaced together
Wear parts next to it on the same drawing
