IMER Mortarman 120 Plus parts book · Drawing 2
Ref 4
01Where it fits
Where this part sits on your machine
Also on this drawing
All 42 parts on Drawing 2, Tank02Fits
Fits these machines
2 machines · 2 IMER parts books
From IMER parts books 3230425 r07 (2019-02), 3226875 r16 (2018-09).
03Where it sits

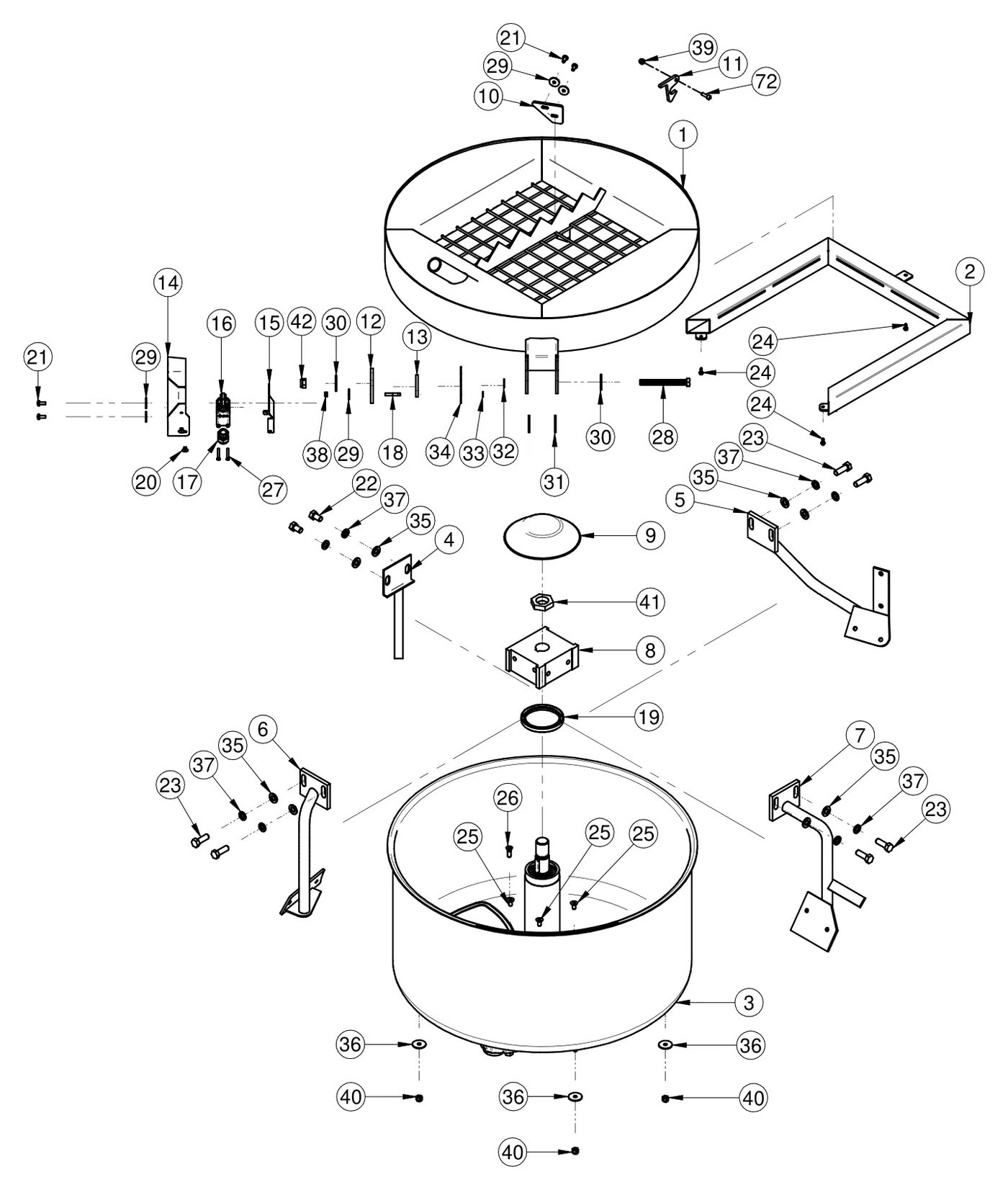

Ref 4 on the Mortarman 120 Plus drawing
04Specifications
Part details
This paddle is a genuine IMER OEM part, part number 3230013.

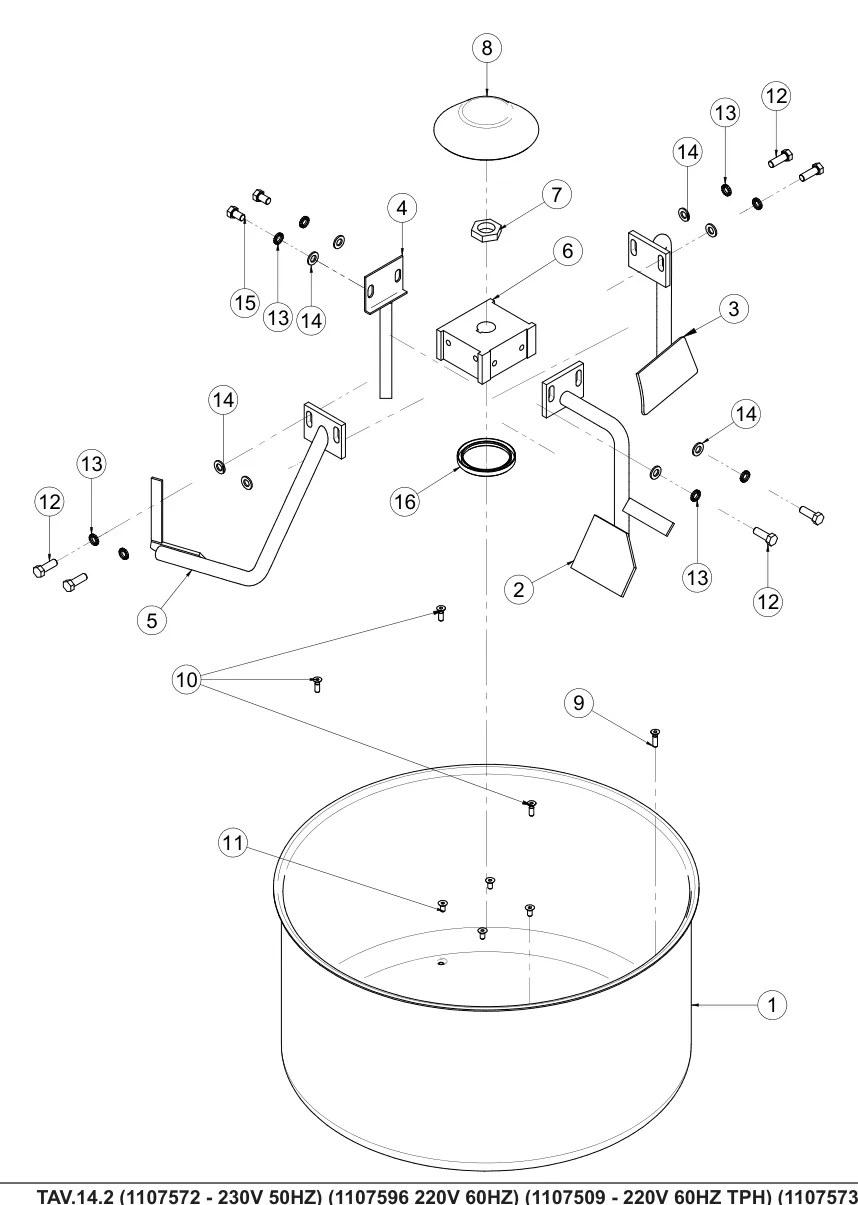

The Step-Up 120 parts book lists it as the candle paddle, ref. 4 in table 14.2, the mixer, from serial number 0003010074. The Mortarman 120 Plus parts book lists the same part number as the scraper, ref. 4 in table 2, Tank; the same table lists the scraper rubber as 3236609 (ref. 10).
The rubber scraper is not included. For the rubber, order kit 1107618 separately; the Mortarman 120 Plus parts book lists 1107618 as the rubber blades kit (table 2.1).
Check part number 3230013 against the parts book for your machine before ordering.
05Used with
Often replaced together
Wear parts next to it on the same drawing
06Documents
Parts books
Guides
Guides for this part
Troubleshooting
IMER Pump Rotor and Stator Wear: Signs, Checks, Parts
Falling material flow or a BLOC message on an IMER Step-Up 120, Small 50 or Koine 4? What the manuals say to check, how to swap the pump, and the parts listed.
4 min read
Answers
Questions about the machines it fits
07Shipping & returns
Shipped from the USA
08Questions
Good to know
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
