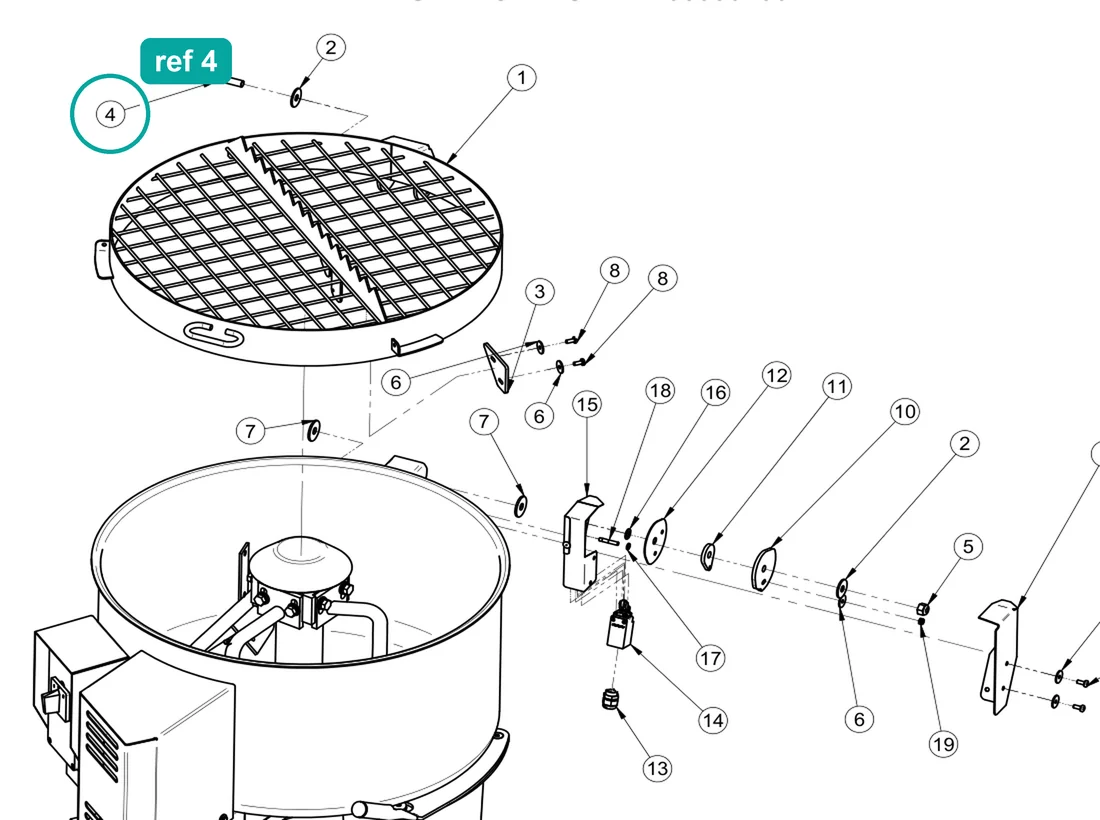

Bolt for IMER Equipment — IMER parts diagram, ref 4

01Where it fits

Where this part sits on your machine

Also on this drawing

All 42 parts on Drawing 2, Tank
  • 30
    Plain washer 12×36

    3206904

    $10.00In stock

  • 5
    Outer mixer paddle

    3229588

    $167.00In stock

  • 24
    Self-tapping bolt 4.2×13 zinc

    2222425

    $10.00In stock

  • 31
    Plain washer PVC 13×40×3

    3229622

    $10.00In stock

  • 8
    Mixer head

    3230009

    $395.00In stock

  • 4
    Candle paddle

    3230013

    $106.00In stock

02Fits

Fits these machines

3 machines · 3 IMER parts books

From IMER parts books 3211212 r03 (2018-09), 3230425 r07 (2019-02), 3226875 r16 (2018-09).

03Where it sits

Ref 28 on the Mortarman 120 Plus drawing

Open full diagram →
Mortarman 120 Plus — Tank, parts list
RefPart no.NamePrice
13236608Suction HoodNot sold onlineAsk a parts specialist
23236713Slotted TubeIn stock, $442.00
33229602TankIn stock, $535.00
43230013ScraperIn stock, $106.00
53229588Outer BladeIn stock, $167.00
63229594Inner BladeIn stock, $166.00
73230023Middle BladeIn stock, $183.00
83230009Mixer HeadIn stock, $395.00
93229562DiffuserNot sold onlineAsk a parts specialist
103236609Scraper RubberNot sold onlineAsk a parts specialist
113236731Safety HookIn stock, $20.00
123234521CamIn stock, $10.00
133234816Cam SpacerIn stock, $10.00
143234817Switch SupportNot sold onlineAsk a parts specialist
153234818Limit Switch SupportNot sold onlineAsk a parts specialist
163214791Limit Switch PizzatoIn stock, $89.00
173201216Cable Clamp PG 13.5In stock, $10.00
183234822Captive Screw M6x30 ZincIn stock, $10.00
192207750Seal 100x80x10In stock, $12.00
202288788RivetIn stock, $10.00
213209728Trilobular Bolt 12x20 ZincNot sold onlineAsk a parts specialist
222222034Hex Head Bolt 12x20 ZincIn stock, $10.00
232222007Hex Head Bolt 12x35 ZincIn stock, $10.00
242222425Self-Tapping Bolt 4.2x13 ZincIn stock, $10.00
252222586Countersunk Socket Bolt 8x16 ZincIn stock, $10.00
263201339Countersunk Socket Bolt 8x25 ZincIn stock, $10.00
273204186Cheese Head Bolt 4x40 ZincIn stock, $10.00
283206902Hex Head Bolt 12x110 ZincIn stock, $10.00
292224049Washer D.6x24 ZincIn stock, $10.00
303206904Washer 12x36In stock, $10.00
313229622PVC Washer 13x40x3In stock, $10.00
323234811Washer 20x12.5x1.5Not sold onlineAsk a parts specialist
333234812Washer 12x6.5x1.5Not sold onlineAsk a parts specialist
343234814Spacer ProtectionNot sold onlineAsk a parts specialist
352224380Washer D.12x25 ZincIn stock, $10.00
362224190Fender Washer 8x32 ZincIn stock, $10.00
373206659Washer M12In stock, $10.00
383211470Nut M6In stock, $10.00
392223924Nut M6In stock, $10.00
402223923Nut M8In stock, $10.00
413226385Nut 30x2Code as printed; same code is used for the gear box in Tav. 3/4Not sold onlineAsk a parts specialist
422223921Self-Locking Nut D.12In stock, $10.00

04Specifications

Part details

Part number
3206902(3206-902)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Mixer drum and paddle assembly
Fits
3 machines

This is genuine IMER part number 3206902. The official IMER parts books list it as "Bolt" and show it for the IMER Step-Up 120, Mortarman 120 Plus and Mix 750.

Parts-book listings: Step-Up 120, table 14.3 (Mixer - Tank Protection), ref 4; Mortarman 120 Plus, table 2 (Tank), ref 28; Mix 750, table 1 (Mixer drum and paddle assembly), ref 39; Mix 750, table 1 (Mixer drum and paddle assembly), ref 49.

Check that the part number on your old part or in your machine's parts list matches 3206902 before ordering, or contact us with your machine's model and serial number.
