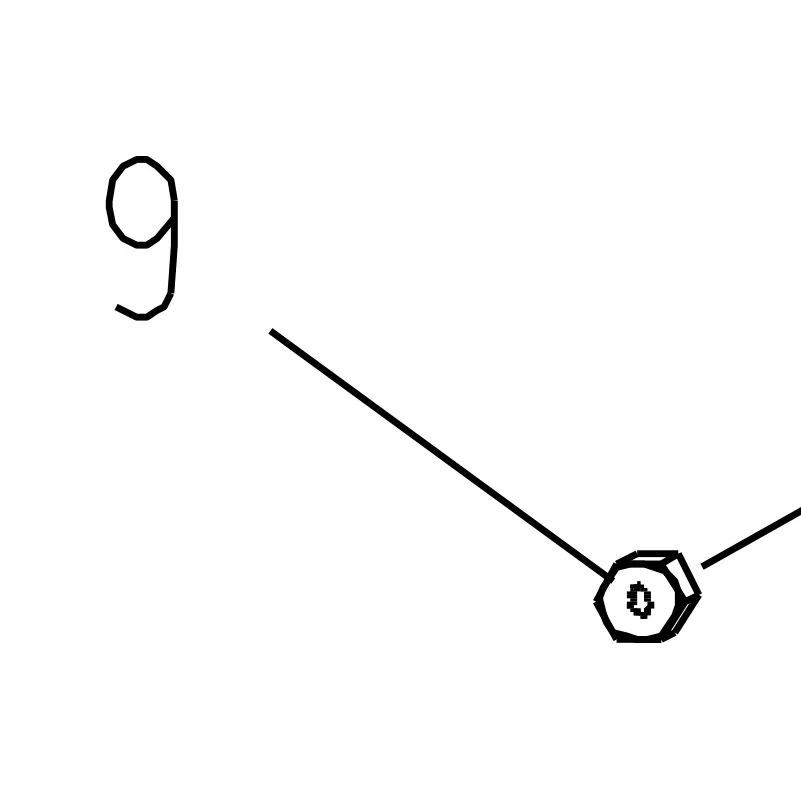

Self-locking nut M6 – genuine IMER part 2223924

01Where it fits

Where this part sits on your machine

+ 11 more machines

Also on this drawing

All 27 parts on Drawing 4, Blade Protection Motor Assembly
  • 13
    Water cock

    3207884

    $11.00In stock

  • 23
    Nut M6 5588

    2223280

    $10.00In stock

  • 4
    Inner blade guard

    3226079

    $29.00In stock

  • 16
    Nut 5588 D.5

    2223352

    $10.00In stock

  • 27
    Electric motor fan cover

    3230644

    $31.00In stock

  • 14
    Bolt TE 8.8 5737 M6×35

    3209060

    $10.00In stock

02Fits

Fits these machines

13 machines · 12 IMER parts books

From IMER parts books 3226123 r07 (2018-09), Combicut 250 VA, 3227118 r14 (2018-09), 3231790 r07 (2018-09), 3223425 r18 (2018-09), 3231378 r05 (2019-06), 3211378 r02 (2018-09), Mix 60 Plus, 3211212 r03 (2018-09), 3230425 r07 (2019-02), 3225890 r11 (2018-09), 3210884 r05 (2012-12).

03Where it sits

Ref 24 on the Combicut 200 VA drawing

Open full diagram →
Combicut 200 VA — Blade Protection Motor Assembly, parts list
RefPart no.NamePrice
13228553MotorRequest price
23230255Motor SupportIn stock, $61.00
33210087SpringIn stock, $27.00
43226079Blade GuardIn stock, $29.00
53210043Spacer BracketIn stock, $22.00
63210238Inner FlangeIn stock, $117.00
71193849BladeRequest price
83210046Outer FlangeIn stock, $58.00
93226080Blade GuardIn stock, $26.00
102224535WasherIn stock, $10.00
112222587Bolt TSPEI 5933 M8x20In stock, $10.00
123204399Bolt TCEI 5931 M5x25In stock, $10.00
133207884CockIn stock, $11.00
143209060Bolt TE 8.8 5737 M6x35In stock, $10.00
152222001Bolt TE 8.8 5737 M4x20In stock, $10.00
162223352Nut 5588 D.5In stock, $10.00
172223920Nut 7474 M10In stock, $10.00
182223926Nut 7473 M4In stock, $10.00
193210050Spray ShieldIn stock, $28.00
203210053Nut 5588 M12 Z SXRequest price
212222541Bolt TCEI 5931 6x25In stock, $10.00
222224380Washer 6592 D.12x25In stock, $10.00
232223280Nut 5588 M6In stock, $10.00
242223924Nut 7473 M6In stock, $10.00
253230251Bushing GFM-1012-6In stock, $10.00
263230250PinRequest price
273230644Fan CoverIn stock, $31.00

04Specifications

Part details

Part number
2223924(2223-924)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Blade Protection Motor Assembly
Fits
13 machines

The Self-Locking Nut M6 is a genuine IMER part, part number 2223924. The Combicut 250/1000 VA and 250/1500 VA parts book lists it as Self-Locking Nut M6, and the Mix 360 book as Nut autobl. M 6. The Wheelman parts book lists the same part number as Nut 5588 M6z in the Frame and Drum Assembly (ref. 9).

Part number 2223924 also appears in the IMER parts books of the Koine 4, Small 50 (Vibrating Screen 1107548), Combicut 200 VA, Combicut 250 VA, Mortarman 120 Plus, Masonry 350 Smart Cut, Combicut 350 iPower and Mix 60 Plus.

Order by part number 2223924 to match the original IMER nut.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER machines does part 2223924 fit?

The IMER parts books list it for the Wheelman, Mix 360, Mix 60 Plus, Mortarman 120 Plus, Koine 4, Small 50 (Vibrating Screen 1107548), Combicut 200 VA, 250 VA, 250/1000 VA, 250/1500 VA and 350 iPower, and the Masonry 350 Smart Cut.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
Ask about the fitCall +1 (307) 301-7723
