IMER Booster 15 parts book · Drawing 5

Ref 34
Screw M12×80 (ref 34) on the IMER Booster 15 Pumping Group and Hopper drawing
Booster 15 parts book · Drawing 5, Pumping Group and Hopper · Ref 34 · Open full diagram

01Where it fits

Where this part sits on your machine

  • Screw M12×80, ref 34, on the IMER Booster 15 drawing

    Drawing 5 · Ref 34

    IMER Booster 15

    Pumping Group and Hopper

    View on the drawing

  • Drawing 8 · Ref 10

    IMER Mix 750

    Drive train Honda (1194620)

    View on the drawing

Also on this drawing

All 74 parts on Drawing 5, Pumping Group and Hopper
  • 32
    Closure seal

    3229093

    $42.00In stock

  • 39
    Hopper closing

    3229318

    $106.00In stock

  • 33
    Seal guard

    3229327

    $41.00In stock

  • 65
    O-Ring 28×3

    3229042

    $10.00In stock

  • 28
    Hopper closing

    3228978

    $630.00In stock

  • 48
    Blade RH

    3227614

    $84.00In stock

02Fits

Fits these machines

2 machines · 2 IMER parts books

From IMER parts books 3234441 r08 (2019-01), 3211212 r03 (2018-09).

03Where it sits

Ref 34 on the Booster 15 drawing

Open full diagram →

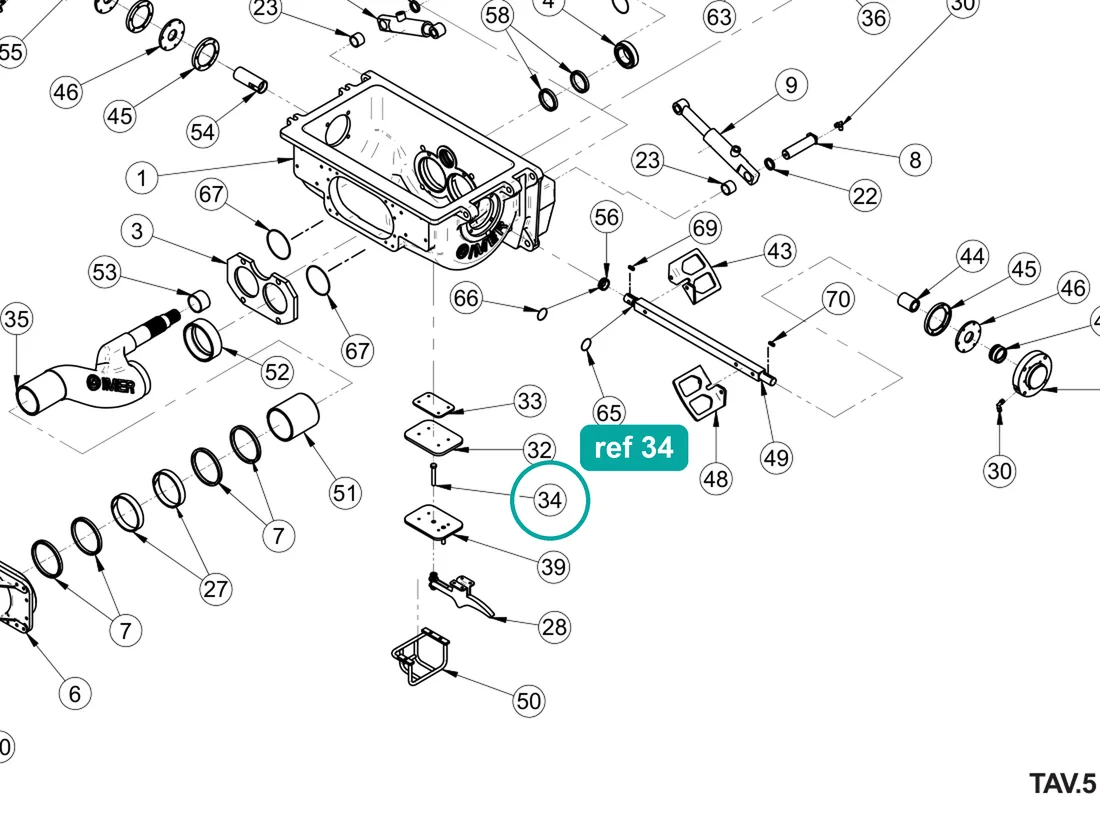

Booster 15 Pumping Group and Hopper, exploded view with reference numbers
IMER Booster 15 · Drawing 5, Pumping Group and Hopper. Select a number on the drawing to find its row.
Booster 15 — Pumping Group and Hopper, parts list
RefPart no.NamePrice
13227248HopperNot sold onlineAsk a parts specialist
23227583Chrome BarrelIn stock, $3,338.00
33229495Anti-Wear PlateIn stock, $2,971.00
43228972BearingIn stock, $396.00
52223650NutIn stock, $10.00
63227577Discharge Side FlangeNot sold onlineAsk a parts specialist
73227640Seal 130x145x11In stock, $302.00
83229342PinNot sold onlineAsk a parts specialist
93234599CylinderS/N column: F009463478Not sold onlineAsk a parts specialist
103229345Tie-RodNot sold onlineAsk a parts specialist
113227576Cooling TankIn stock, $1,380.00
123228975Nut M24Not sold onlineAsk a parts specialist
133228798Closure SupportIn stock, $41.00
143228977Cooling Tank ClosureIn stock, $376.00
153228802Cap SealNot sold onlineAsk a parts specialist
163229352Cooling Tank PlugIn stock, $161.00
173228803Plug Tie-RodIn stock, $58.00
183228799Sensor SupportIn stock, $103.00
193234598Pumping CylinderS/N column: F009463478Not sold onlineAsk a parts specialist
193237121Pumping CylinderFrom S/N j009677345In stock, $4,381.00
203229351Tank Sensor FlangeIn stock, $302.00
213227823Piston 35x43x7Only Italian printed; translatedIn stock, $707.00
223229354Spacer 35x43x31In stock, $30.00
233229357SpacerIn stock, $35.00
243228976Washer 17x60x6In stock, $21.00
251222173ScrewIn stock, $10.00
263229380Wired SensorIn stock, $1,089.00
273227639RingIn stock, $297.00
283228978Hopper ClosingIn stock, $630.00
293229350Discharge FlangeVersions 1106120-1106121In stock, $337.00
293230606Discharge FlangeVersion 1106126Not sold onlineAsk a parts specialist
303224345Fitting 1/4" M. 90°Only Italian printed; translatedNot sold onlineAsk a parts specialist
313229456Washer D.24In stock, $10.00
323229093Closure SealIn stock, $42.00
333229327Seal GuardIn stock, $41.00
342222054Screw M12x80In stock, $10.00
353227567"S" Exhaust PipeIn stock, $2,089.00
363229336Piston Rod PinNot sold onlineAsk a parts specialist
373227146Hydraulic MotorIn stock, $2,157.00
383224313Opposite FlangeIn stock, $355.00
393229318Hopper ClosingIn stock, $106.00
403227619Toothed RodIn stock, $859.00
413228807Nut BlockIn stock, $25.00
423228974Nut M42x3In stock, $102.00
433227615Blade LHIn stock, $90.00
443224284Bushing Blind SideIn stock, $210.00
453224311Seal FlangeIn stock, $78.00
463224315Seal D.48In stock, $66.00
473224314Greasing BushingIn stock, $93.00
483227614Blade RHIn stock, $84.00
493229343Hopper ShaftIn stock, $318.00
503229086Closure Protection GrilleIn stock, $157.00
513227636Bushing for "S" PipeIn stock, $646.00
523229497FlangeNot sold onlineAsk a parts specialist
533228973Ring JR 68x60x45In stock, $157.00
543224285Engine ExtensionIn stock, $442.00
552207510Oil Seal RingIn stock, $10.00
563227622Shaft RingIn stock, $114.00
573229353Connecting Rod FlangeIn stock, $273.00
583227641Seal 68x83x11In stock, $223.00
593229048O-Ring 100x3In stock, $10.00
603229044O-Ring 30x3In stock, $10.00
613229049O-Ring 124.5x3In stock, $10.00
623229045O-Ring 50x3In stock, $10.00
633229046O-Ring 65x3In stock, $10.00
643229047O-Ring 95x3In stock, $10.00
653229042O-Ring 28x3In stock, $10.00
663229043O-Ring 36x3In stock, $10.00
673229386O-Ring 129.5x3In stock, $10.00
683229050O-Ring 139.5x3In stock, $10.00
692229549Key 10x8x30In stock, $10.00
703226187Key 5x5x40In stock, $10.00
713230286Trapezoidal Seal Ø138 H.11.6From S/N 0003007231In stock, $74.00
723230363O-Ring Ø135x2.5From S/N 0003007231In stock, $10.00

04Specifications

Part details

Part number
2222054(2222-054)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Pumping Group and Hopper
Fits
2 machines

This is genuine IMER part number 2222054. The official IMER parts books list it as "Screw M12x80" and show it for the IMER Booster 15.

Parts-book listings: Booster 15, table 5 (Pumping Group and Hopper), ref 34.

Check that the part number on your old part or in your machine's parts list matches 2222054 before ordering, or contact us with your machine's model and serial number.
