IMER Mortarman 120 Plus parts book · Drawing 1

Ref 2
Outlet (ref 2) on the IMER Mortarman 120 Plus Machine Structure drawing
Mortarman 120 Plus parts book · Drawing 1, Machine Structure · Ref 2 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 28 parts on Drawing 1, Machine Structure

02Fits

Fits these machines

2 machines · 2 IMER parts books

From IMER parts books 3230425 r07 (2019-02), 3226875 r16 (2018-09).

03Where it sits

Ref 2 on the Mortarman 120 Plus drawing

Open full diagram →

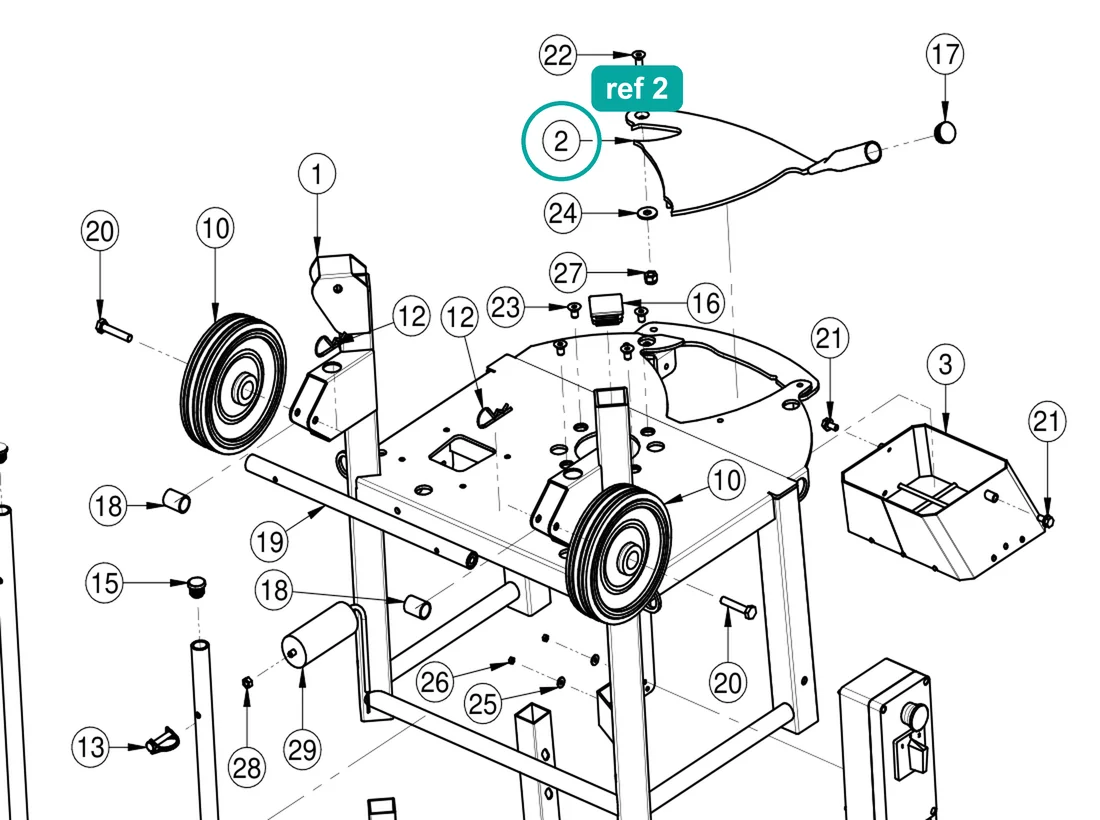

Mortarman 120 Plus Machine Structure, exploded view with reference numbers
IMER Mortarman 120 Plus · Drawing 1, Machine Structure. Select a number on the drawing to find its row.
Mortarman 120 Plus — Machine Structure, parts list
RefPart no.NamePrice
13234510FrameIn stock, $398.00
23229559OutletIn stock, $200.00
33229598Outlet ProtectionIn stock, $179.00
43234541Electric PanelNot sold onlineAsk a parts specialist
53229773RH Rear LegIn stock, $242.00
63229775LH Rear LegIn stock, $182.00
73229566Front LegIn stock, $206.00
83229778HandleIn stock, $156.00
92211150Wheel 250x50 Ø36.5In stock, $41.00
103209809Wheel 200x50 Ø26.5In stock, $18.00
112226700Split Pin 3.5/72In stock, $10.00
122226700Split Pin 3.5/72In stock, $10.00
133229800Pin 8x45 ZincIn stock, $12.00
143231248Pin 9.5x67In stock, $15.00
152235452Plug GPN 320 D.22In stock, $10.00
162257705Plug GPN 260 40x40Not sold onlineAsk a parts specialist
173208452Plug GPN 320 30x2In stock, $10.00
183235355SpacerIn stock, $10.00
193235361AxleIn stock, $181.00
202222144Bolt M10x55 ZincIn stock, $10.00
213227870Hex Flange Trilobular Bolt 8x16 ZincIn stock, $10.00
222222601Countersunk Socket Bolt M10x30 ZincIn stock, $10.00
232222605Countersunk Socket Bolt M10x16 ZincIn stock, $10.00
242224260Washer D.10x30 ZincIn stock, $10.00
252224528Washer D.5x15 ZincNot sold onlineAsk a parts specialist
262223352Nut 5588 D.5 ZincIn stock, $10.00
272223920Self-Locking Nut M10 7474In stock, $10.00
282223570Nut 5588 D.8 ZincIn stock, $10.00
293229797Capacitor 100 µF 250V 50x120In stock, $85.00

04Specifications

Part details

Part number
3229559(3229-559)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure
Fits
2 machines

This is genuine IMER part number 3229559. The official IMER parts books list it as "Outlet" and show it for the IMER Mortarman 120 Plus and Step-Up 120.

Parts-book listings: Step-Up 120, table 14 (Mixer - Drive Assembly), ref 15; Mortarman 120 Plus, table 1 (Machine Structure), ref 2.

Check that the part number on your old part or in your machine's parts list matches 3229559 before ordering, or contact us with your machine's model and serial number.
