Cheese Head Bolt 4x40 Zinc for IMER Mortarman 120 Plus and Mix 60 Plus — IMER parts diagram, ref 27

01Where it fits

Where this part sits on your machine

Also on this drawing

All 42 parts on Drawing 2, Tank

02Fits

Fits these machines

2 machines · 2 IMER parts books

From IMER parts books Mix 60 Plus, 3230425 r07 (2019-02).

03Where it sits

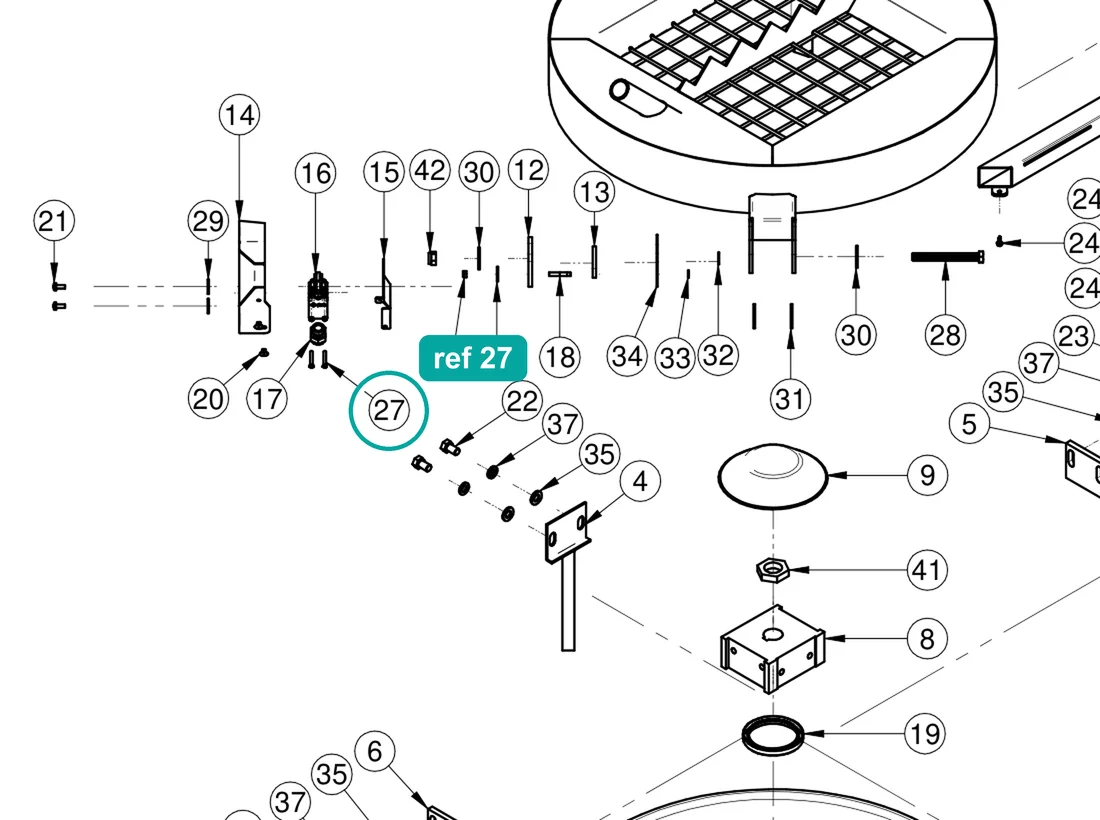

Ref 27 on the Mortarman 120 Plus drawing

Open full diagram →
Mortarman 120 Plus — Tank, parts list
RefPart no.NamePrice
13236608Suction HoodNot sold onlineAsk a parts specialist
23236713Slotted TubeIn stock, $442.00
33229602TankIn stock, $535.00
43230013ScraperIn stock, $106.00
53229588Outer BladeIn stock, $167.00
63229594Inner BladeIn stock, $166.00
73230023Middle BladeIn stock, $183.00
83230009Mixer HeadIn stock, $395.00
93229562DiffuserNot sold onlineAsk a parts specialist
103236609Scraper RubberNot sold onlineAsk a parts specialist
113236731Safety HookIn stock, $20.00
123234521CamIn stock, $10.00
133234816Cam SpacerIn stock, $10.00
143234817Switch SupportNot sold onlineAsk a parts specialist
153234818Limit Switch SupportNot sold onlineAsk a parts specialist
163214791Limit Switch PizzatoIn stock, $89.00
173201216Cable Clamp PG 13.5In stock, $10.00
183234822Captive Screw M6x30 ZincIn stock, $10.00
192207750Seal 100x80x10In stock, $12.00
202288788RivetIn stock, $10.00
213209728Trilobular Bolt 12x20 ZincNot sold onlineAsk a parts specialist
222222034Hex Head Bolt 12x20 ZincIn stock, $10.00
232222007Hex Head Bolt 12x35 ZincIn stock, $10.00
242222425Self-Tapping Bolt 4.2x13 ZincIn stock, $10.00
252222586Countersunk Socket Bolt 8x16 ZincIn stock, $10.00
263201339Countersunk Socket Bolt 8x25 ZincIn stock, $10.00
273204186Cheese Head Bolt 4x40 ZincIn stock, $10.00
283206902Hex Head Bolt 12x110 ZincIn stock, $10.00
292224049Washer D.6x24 ZincIn stock, $10.00
303206904Washer 12x36In stock, $10.00
313229622PVC Washer 13x40x3In stock, $10.00
323234811Washer 20x12.5x1.5Not sold onlineAsk a parts specialist
333234812Washer 12x6.5x1.5Not sold onlineAsk a parts specialist
343234814Spacer ProtectionNot sold onlineAsk a parts specialist
352224380Washer D.12x25 ZincIn stock, $10.00
362224190Fender Washer 8x32 ZincIn stock, $10.00
373206659Washer M12In stock, $10.00
383211470Nut M6In stock, $10.00
392223924Nut M6In stock, $10.00
402223923Nut M8In stock, $10.00
413226385Nut 30x2Code as printed; same code is used for the gear box in Tav. 3/4Not sold onlineAsk a parts specialist
422223921Self-Locking Nut D.12In stock, $10.00

04Specifications

Part details

Part number
3204186(3204-186)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Mortar Mixer
Fits
2 machines

This is genuine IMER part number 3204186. The official IMER parts books list it as "Cheese Head Bolt 4x40 Zinc" and show it for the IMER Mortarman 120 Plus and Mix 60 Plus.

Parts-book listings: Mortarman 120 Plus, table 2 (Tank), ref 27; Mix 60 Plus, table 2 (Mortar Mixer), ref 28.

Check that the part number on your old part or in your machine's parts list matches 3204186 before ordering, or contact us with your machine's model and serial number.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
