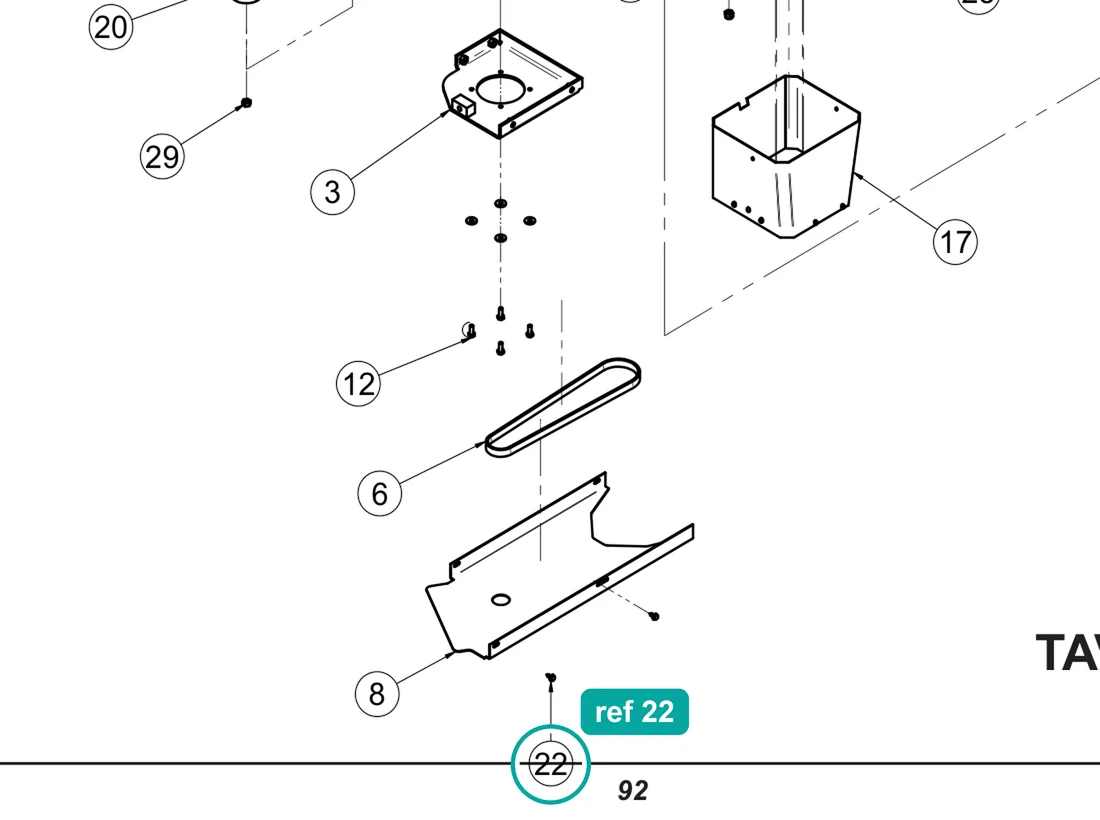

Bolt 4.8×13 (ref 22) highlighted on the IMER Step-Up 120 parts diagram, Mixer - Drive Assembly – part 2222420

01Where it fits

Where this part sits on your machine

Also on this drawing

All 20 parts on Drawing 3, Transmission
  • 15
    Washer 8×32 z

    2224190

    $10.00In stock

  • 18
    Self-locking nut M8

    2223923

    $10.00In stock

  • 1
    Frame

    3234510

    $398.00In stock

  • 16
    Washer D.8×24

    2224204

    $10.00In stock

  • 14
    Bolt 8×80

    3262752

    $10.00In stock

  • 6
    Poly-v belt CP200 J6

    3229609

    $37.00In stock

02Fits

Fits these machines

4 machines · 4 IMER parts books

From IMER parts books 3236275 r02 (2019-03), 3230425 r07 (2019-02), 3226875 r16 (2018-09), 3209290 r11 (2019-02).

03Where it sits

Ref 13 on the Mortarman 120 Plus drawing

Open full diagram →
Mortarman 120 Plus — Transmission, parts list
RefPart no.NamePrice
13234510FrameIn stock, $398.00
23226385Gear BoxRequest price
33225530Motor 1.4kW 110-127V/60HzIn stock, $736.00
43229599Motor SupportIn stock, $87.00
53229605GuardIn stock, $39.00
63229609Poly-V Belt CP200 J6In stock, $37.00
73229795PulleyIn stock, $97.00
82227310Stop Ring E19In stock, $10.00
92229310Key 6x6x30In stock, $10.00
103227870Hex Flange Trilobular Bolt 8x16 ZincRequest price
112222002Hex Head Bolt 6x16 ZincIn stock, $10.00
122222605Countersunk Socket Bolt M10x16 ZincRequest price
132222420Self-Tapping Hex Head Bolt 4.8x13 ZincIn stock, $10.00
143262752Hex Head Bolt 8x80 ZincIn stock, $10.00
152224190Fender Washer 8x32 ZincIn stock, $10.00
162224204Washer M8x24 ZincIn stock, $10.00
172224055Washer M6In stock, $10.00
182223923Nut M8In stock, $10.00
193235678FanIn stock, $35.00
203235679Fan CoverRequest price

04Specifications

Part details

Part number
2222420(2222-420)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure
Fits
4 machines

This 4.8x13 bolt is a genuine IMER part, part number 2222420. The Mortarman 120 Plus parts book describes it as BOLT AUTF. TE 4.8x13z in the transmission (table 3, ref. 13).

The same part number is listed for the Workman II 250 concrete mixer (machine drawing, ref. 25), the mixing assembly of the Step 120 (table 14, ref. 22) and the machine structure of the Masonry 750 Plus saw (ref. 17). Check the part number against the parts book for your machine before ordering.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER machines use bolt 2222420?

The IMER parts books list it for the Workman II 250 concrete mixer, the Mortarman 120 Plus, the Step 120 (mixing assembly) and the Masonry 750 Plus saw.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
Ask about the fitCall +1 (307) 301-7723
