IMER Koine 4 parts book · Drawing 7

Ref 12

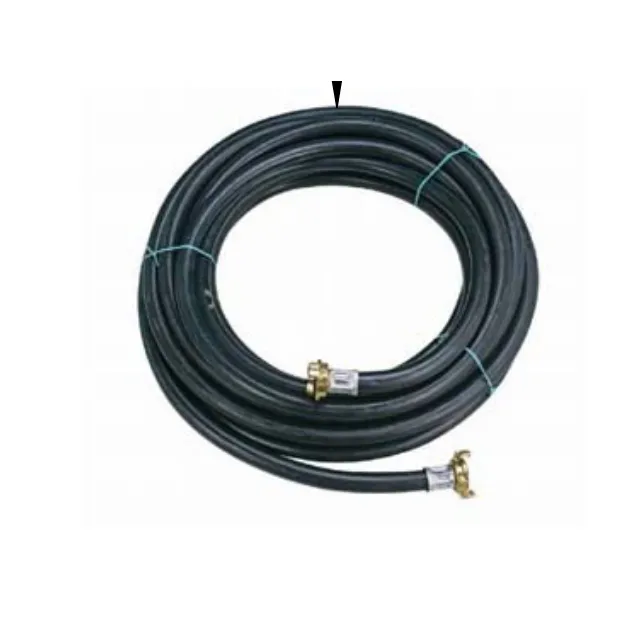

Air hose 53 ft x 13 mm with geka couplings (ref 12) on the IMER Koine 4 Material Carrier Hoses drawing
Koine 4 parts book · Drawing 7, Material Carrier Hoses · Ref 12 · Open full diagram

01Where it fits

Where this part sits on your machine

  • Drawing 7 · Ref 12

    IMER Koine 4

    Material Carrier Hoses

    View on the drawing

  • Drawing 13 · Ref 14

    IMER Prestige 300

    Standard Accessories

    View on the drawing

  • Drawing 11 · Ref 7

    IMER Small 50

    Traditional Pre-Mixed Mortar Kit (1107005)

    View on the drawing

  • Drawing 12 · Ref 16

    IMER Small 50

    Leveller and Grout Kit (1107010)

    View on the drawing

  • Drawing 13 · Ref 12

    IMER Small 50

    Paint Kit (1107009)

    View on the drawing

Also on this drawing

All 18 parts on Drawing 7, Material Carrier Hoses

02Fits

Fits these machines

3 machines · 3 IMER parts books

From IMER parts books 3223425 r18 (2018-09), 3234338 r03 (2018-09), 3225890 r11 (2018-09).

03Where it sits

Ref 12 on the Koine 4 drawing

Open full diagram →
Koine 4 Material Carrier Hoses, exploded view with reference numbers
IMER Koine 4 · Drawing 7, Material Carrier Hoses. Select a number on the drawing to find its row.
Koine 4 — Material Carrier Hoses, parts list
RefPart no.NamePrice
111075275m Material Carrier Hose D25 with Cam Couplings DN25 M + DN25 F5 m Ø25, DN27 M + DN27 FIn stock, $349.00
1110752610m Material Carrier Hose D25 with Cam Couplings DN25 M + DN25 F10 m Ø25, DN27 M + DN27 FIn stock, $449.00
1110752515m Material Carrier Hose D25 with Cam Couplings DN25 M + DN25 F15 m Ø25, DN27 M + DN27 FIn stock, $559.00
23225933Cam-Lock Coupling for Clamping DN 27 MFor hose DN25In stock, $35.00
33225942Pipe Clamp 32-40For hose 25x37In stock, $13.00
43225934Cam-Lock Coupling for Clamping DN 27 FFor hose DN25In stock, $95.00
53224830Cam Coupling Seal DN 25In stock, $10.00
6110752810m Material Carrier Hose D35 with Cam Couplings DN35 M + DN35 F10 m Ø35In stock, $629.00
73225935Cam-Lock Coupling for Clamping DN 35 MFor hose DN35In stock, $45.00
83225943Pipe Clamp 39-48For hose 35x49In stock, $16.00
93225936Cam-Lock Coupling for Clamping DN 35 FFor hose DN35In stock, $87.00
103224831Cam Coupling Seal DN 35In stock, $10.00
113224498Lever DN 25-35-50In stock, $16.00
1211075305m Air Hose D13 with GEKA ConnectorsD.13x23Not sold onlineAsk a parts specialist
12110753110m Air Hose D13 with GEKA ConnectorsD.13x23In stock, $199.00
12110753216m Air Hose D13 with GEKA ConnectorsD.13x23In stock, $289.00
1332284654m Water Hose D13 with GEKA Connectors4 m, D.19x30In stock, $174.00
133228464Water Hose D13 with GEKA ConnectorsNote column says 30 m, D.19x30 (description printed as 4 m)In stock, $562.00

04Specifications

Part details

Part number
1107532(1107-532)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Material Carrier Hoses
Fits
3 machines

This 53 ft air hose with Geka couplings is a genuine IMER OEM part, part number 1107532. It is a 13 mm diameter rubber hose, 16 m long, with Geka twist couplings.

The IMER parts book lists it for three machines: the Koine 4 (Material Carrier Hoses, noted as D.13x23), the Small 50 (Accessories) and the Prestige 300 (Standard Accessories). On the Small 50 it is also part of the Traditional Pre-Mixed Mortar Kit 1107005, the Leveller and Grout Kit 1107010 and the Paint Kit 1107009. It is intended for IMER pumps equipped with an IMER air compressor.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped by IMER USA

Shipping & delivery →Returns & warranty →

  • Ships from IMER USA

    Shipped directly by IMER USA from its US warehouse, within 1–3 business days; ground delivery usually takes 5–7 business days.

  • Flat-rate shipping by size

    Parts ship at a flat rate by size, from $20. IMER machines ship free to commercial addresses in the contiguous US.

  • 30-day returns, restocking fee may apply

    30-day returns on unused items with a return authorization. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns

08Questions

Good to know

Which IMER machines does air hose 1107532 fit?

The IMER parts book lists it for the Koine 4, the Small 50 and the Prestige 300 (standard accessories).

Which Small 50 kits include air hose 1107532?

The Traditional Pre-Mixed Mortar Kit (1107005), the Leveller and Grout Kit (1107010) and the Paint Kit (1107009).
