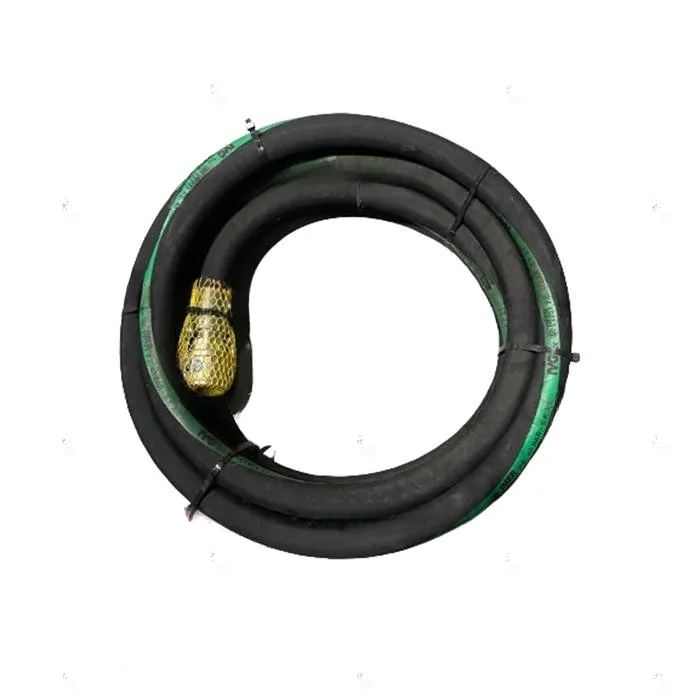

Material Hose 33 ft x 1-3/8 in (35 mm) for IMER Koine 4, Step-Up 120 – genuine IMER part 1107528

01Where it fits

Where this part sits on your machine

Also on this drawing

All 18 parts on Drawing 7, Material Carrier Hoses

02Fits

Fits these machines

3 machines · 3 IMER parts books

From IMER parts books 3223425 r18 (2018-09), 3234338 r03 (2018-09), 3226875 r16 (2018-09).

03Where it sits

Ref 6 on the Koine 4 drawing

Open full diagram →
Koine 4 — Material Carrier Hoses, parts list
RefPart no.NamePrice
111075275m Material Carrier Hose D25 with Cam Couplings DN25 M + DN25 F5 m Ø25, DN27 M + DN27 FIn stock, $349.00
1110752610m Material Carrier Hose D25 with Cam Couplings DN25 M + DN25 F10 m Ø25, DN27 M + DN27 FIn stock, $449.00
1110752515m Material Carrier Hose D25 with Cam Couplings DN25 M + DN25 F15 m Ø25, DN27 M + DN27 FIn stock, $559.00
23225933Cam-Lock Coupling for Clamping DN 27 MFor hose DN25In stock, $35.00
33225942Pipe Clamp 32-40For hose 25x37In stock, $13.00
43225934Cam-Lock Coupling for Clamping DN 27 FFor hose DN25In stock, $95.00
53224830Cam Coupling Seal DN 25In stock, $10.00
6110752810m Material Carrier Hose D35 with Cam Couplings DN35 M + DN35 F10 m Ø35In stock, $629.00
73225935Cam-Lock Coupling for Clamping DN 35 MFor hose DN35In stock, $45.00
83225943Pipe Clamp 39-48For hose 35x49In stock, $16.00
93225936Cam-Lock Coupling for Clamping DN 35 FFor hose DN35In stock, $87.00
103224831Cam Coupling Seal DN 35In stock, $10.00
113224498Lever DN 25-35-50In stock, $16.00
1211075305m Air Hose D13 with GEKA ConnectorsD.13x23Not sold onlineAsk a parts specialist
12110753110m Air Hose D13 with GEKA ConnectorsD.13x23In stock, $199.00
12110753216m Air Hose D13 with GEKA ConnectorsD.13x23In stock, $289.00
1332284654m Water Hose D13 with GEKA Connectors4 m, D.19x30In stock, $174.00
133228464Water Hose D13 with GEKA ConnectorsNote column says 30 m, D.19x30 (description printed as 4 m)In stock, $562.00

04Specifications

Part details

Part number
1107528(1107-528)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Material Carrier Hoses
Fits
3 machines

This 33 ft material hose with cam-lock couplings is a genuine IMER part, part number 1107528, with a 35 mm (1-3/8 in) diameter. The Koine 4 parts book describes it as a 10 m D35 hose with DN35 male and DN35 female cam couplings.

The IMER parts books list it for the Koine 4 (Material Carrier Hoses) and the Step-Up 120 (Accessories). The Prestige 300 and Step-Up 120 product sheets and the imerusa.com Prestige 300 and Koine Dual pages list the 33 ft x 35 mm hose, part 1107528, as optional equipment. It carries pumped material from the machine to the work area.

The Prestige 300 parts book describes this part number as a 5 m D.35 hose with M50/F50 cam-lock couplings. If you are ordering for a Prestige 300, contact us to confirm length and coupling size first.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER machines does material hose 1107528 fit?

The IMER parts books list it for the Koine 4 and the Step-Up 120, and IMER lists it as optional equipment for the Prestige 300 and the Koine Dual. The Prestige 300 parts book describes this number differently (5 m, M50/F50 couplings), so confirm before ordering for that machine.
