03Where it sits

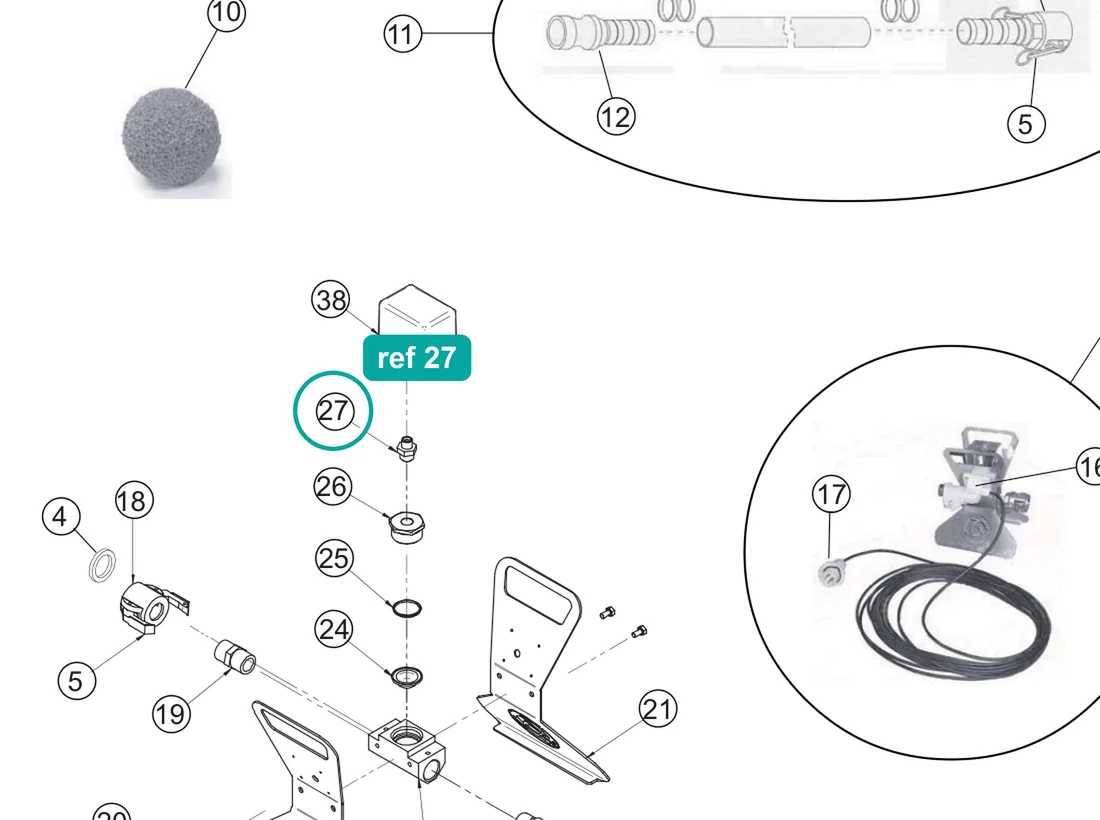

Ref 27 on the Prestige 300 drawing
04Specifications
Part details
This is genuine IMER part number 3224928. The official IMER parts books list it as "Reduced Nipple 1/2"-3/8"" and show it for the IMER Koine 4, Prestige 300, Small 50 and 1 more models.
Parts-book listings: Koine 4, table 4 (Compressor 380V (3224528)), ref 36; Small 50, table 7 (Compressor (1107546 110V/60Hz - 1107547 115V/50Hz)), ref 22; Small 50, table 10 (Pressure Gauge + Pressure Switch (1107515)), ref 5; Step-Up 120, table 4 (Compressor 220V), ref 5; Step-Up 120, table 17 (Injection Kit (1107575)), ref 29; Prestige 300, table 16 (Injection Kit (1107082)), ref 27.
Check that the part number on your old part or in your machine's parts list matches 3224928 before ordering, or contact us with your machine's model and serial number.
