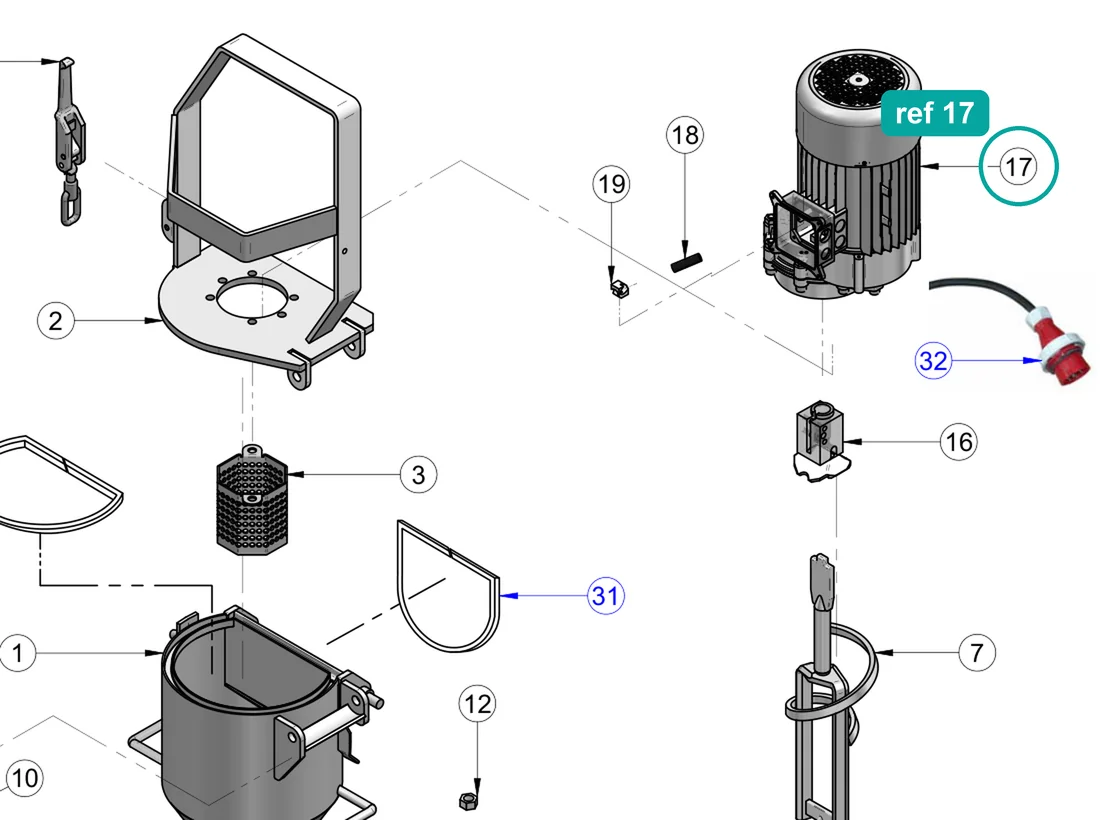

Ref 17 on the Koine 4 drawing
04Specifications
Part details
This mixer gearmotor is a genuine IMER part, part number 3228422. The IMER Koine 4 parts book lists it in Table 2, Mixing Chamber, as ref. 17, for 400V 50Hz machines with codes 1106005-1106320.
For 220V-400V 60Hz machines (codes 1106003, 1106004 and 1106112) the same parts book lists a different mixer gearmotor, part 3231671. Check your machine's voltage, code and the part number on the installed gearmotor before ordering.
