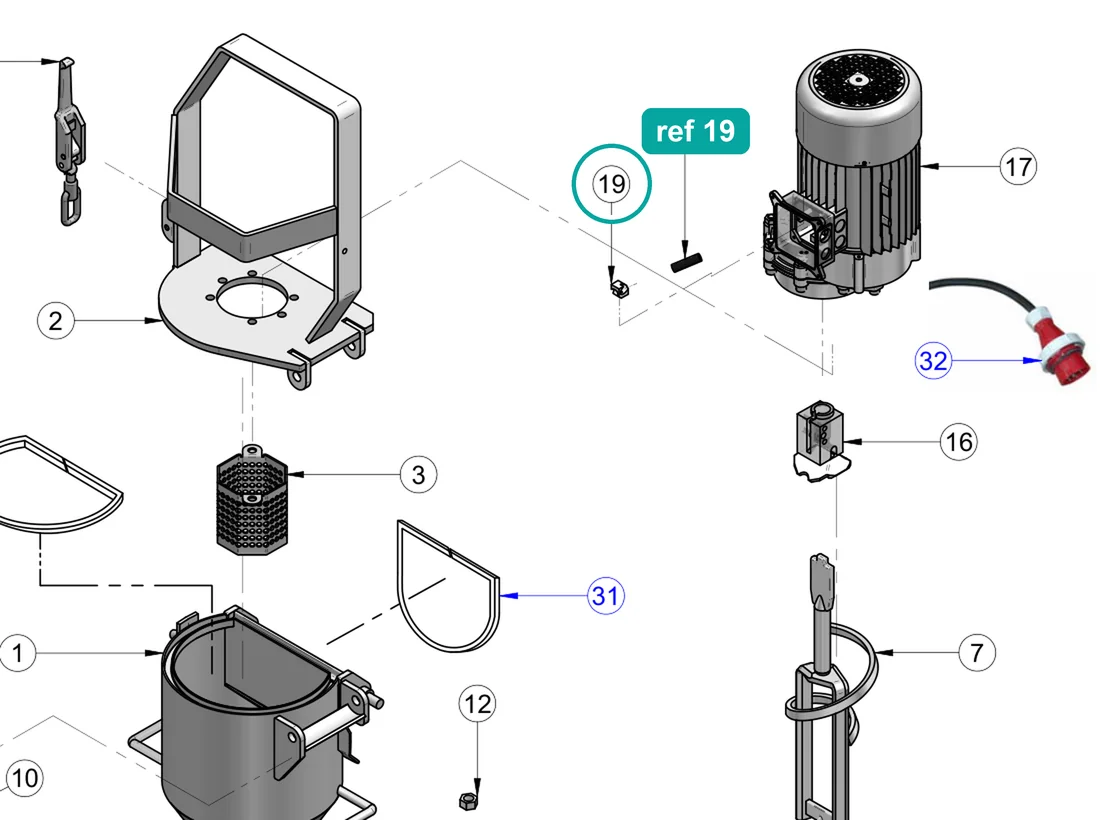

Ref 19 on the Koine 4 drawing
04Specifications
Part details
This is genuine IMER part number 3236115. The official IMER parts books list it as "Sensor Support" and show it for the IMER Koine 4.
Parts-book listings: Koine 4, table 2 (Mixing Chamber), ref 19.
Check that the part number on your old part or in your machine's parts list matches 3236115 before ordering, or contact us with your machine's model and serial number.
