Electric motor 1.4 kW 110-127V 60Hz – genuine IMER part 3225530 for IMER Mortarman 120 Plus

01Where it fits

Where this part sits on your machine

Also on this drawing

All 20 parts on Drawing 3, Transmission
  • 4
    Motor support

    3229599

    $87.00In stock

  • 10
    Hex flange trilobular bolt 8×16 zinc

    3227870

    $10.00In stock

  • 9
    Key 6×6×30

    2229310

    $10.00In stock

  • 19
    Fan

    3235678

    $35.00In stock

  • 17
    Grower washer D6

    2224055

    $10.00In stock

  • 11
    Bolt TE M6×16 z

    2222002

    $10.00In stock

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3230425 r07 (2019-02).

03Where it sits

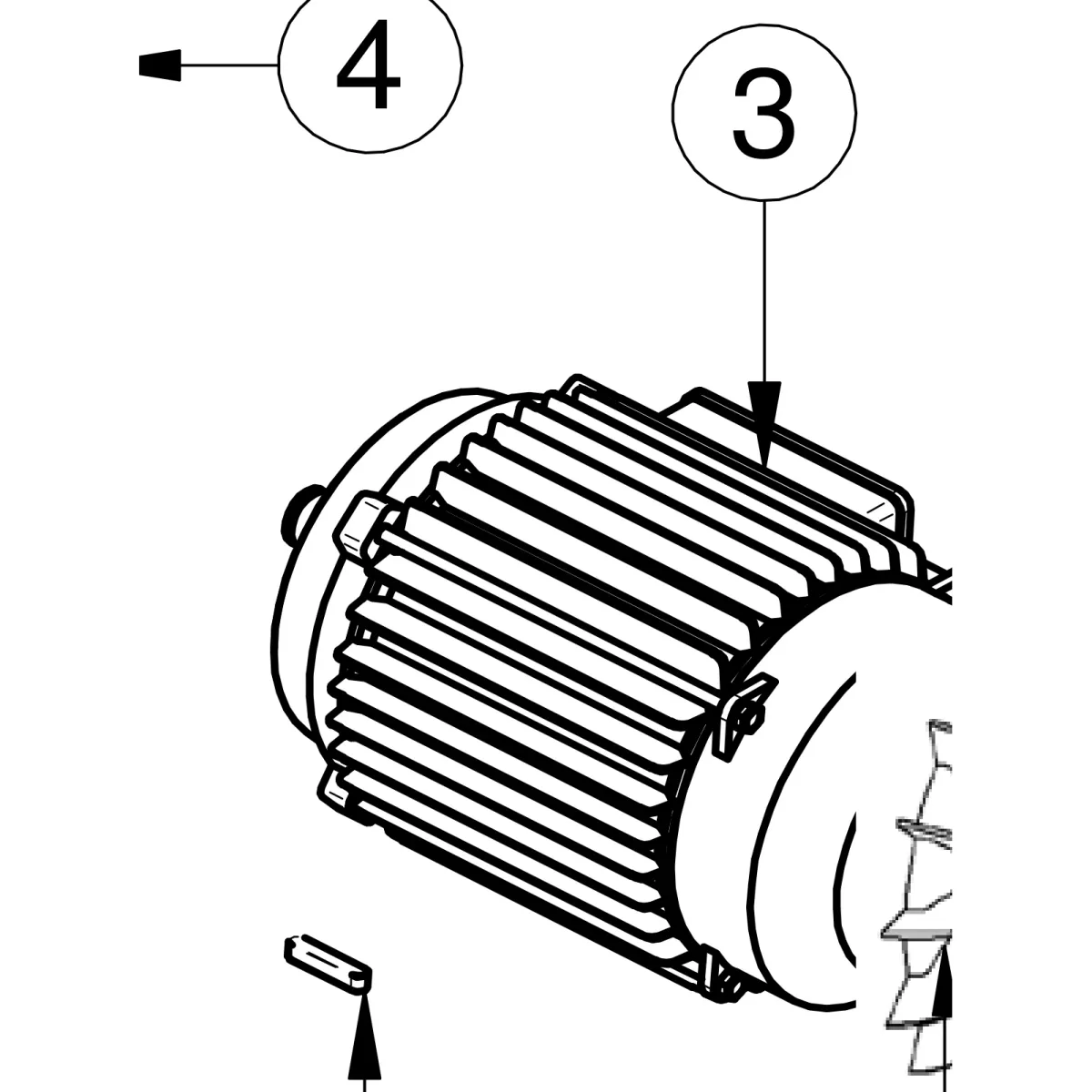

Ref 3 on the Mortarman 120 Plus drawing

Open full diagram →
Mortarman 120 Plus — Transmission, parts list
RefPart no.NamePrice
13234510FrameIn stock, $398.00
23226385Gear BoxNot sold onlineAsk a parts specialist
33225530Motor 1.4kW 110-127V/60HzIn stock, $736.00
43229599Motor SupportIn stock, $87.00
53229605GuardIn stock, $39.00
63229609Poly-V Belt CP200 J6In stock, $37.00
73229795PulleyIn stock, $97.00
82227310Stop Ring E19In stock, $10.00
92229310Key 6x6x30In stock, $10.00
103227870Hex Flange Trilobular Bolt 8x16 ZincIn stock, $10.00
112222002Hex Head Bolt 6x16 ZincIn stock, $10.00
122222605Countersunk Socket Bolt M10x16 ZincIn stock, $10.00
132222420Self-Tapping Hex Head Bolt 4.8x13 ZincIn stock, $10.00
143262752Hex Head Bolt 8x80 ZincIn stock, $10.00
152224190Fender Washer 8x32 ZincIn stock, $10.00
162224204Washer M8x24 ZincIn stock, $10.00
172224055Washer M6In stock, $10.00
182223923Nut M8In stock, $10.00
193235678FanIn stock, $35.00
203235679Fan CoverNot sold onlineAsk a parts specialist

04Specifications

Part details

Part number
3225530(3225-530)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Transmission
Fits
1 machine

The 1.4 kW electric motor is a genuine IMER OEM part, part number 3225530. The IMER parts book for the Mortarman 120 Plus lists it in the transmission assembly (TAV. 3, ref. 3) as Motor 1.4kW 110-127V/60Hz.

The parts book covers mixer 1194302, which IMER sells today as the Mix 120 Plus. The motor fan (3235678) and fan cover (3235679) are listed as separate parts.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

What voltage is motor 3225530?

110-127V, 60Hz, rated 1.4 kW, per the IMER parts book.

Which IMER mixer does motor 3225530 fit?

The IMER Mortarman 120 Plus (mixer 1194302, sold today as the Mix 120 Plus), in the transmission assembly, per the IMER parts book.
