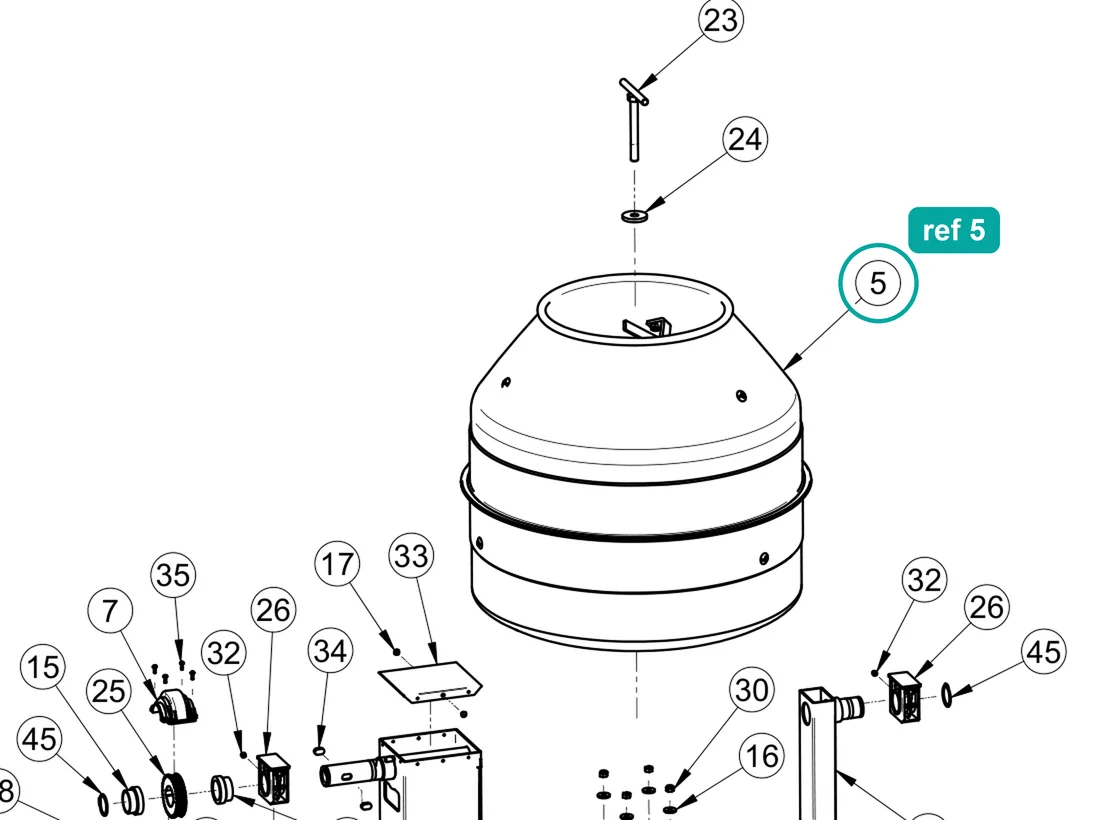

Drum assembly (ref 5) highlighted on an IMER parts-book drawing – part 3208811

01Where it fits

Where this part sits on your machine

  • Drawing 1/A · Ref 5

    IMER Syntesi 190 EL

    Machine Structure (Syntesi 190-250)

    View on the drawing

  • Drawing 1/A · Ref 5

    IMER Syntesi 250 EL

    Machine Structure (Syntesi 190-250)

    View on the drawing

  • Drawing 1.3 · Ref 4

    IMER Workman 250

    Workman II 250 Concrete Mixer (1105849-1105850)

    View on the drawing

Also on this drawing

All 58 parts on Drawing 1/A, Machine Structure (Syntesi 190-250)
  • 5
    Complete tank assembly

    3208830

    $967.00In stock

  • 24
    Washer d. 61×19×8

    3207225

    $15.00In stock

  • 32
    Greaser M8×1.25

    2230350

    $10.00In stock

  • 26
    Nylon fiber bushing

    3208792

    $18.00In stock

  • 45
    Stop ring e 50

    2227205

    $10.00In stock

  • 16
    Washer D8×25×4 z

    3203917

    $10.00In stock

02Fits

Fits these machines

3 machines · 2 IMER parts books

From IMER parts books 3228768 r12 (2019-02), 3209290 r11 (2019-02).

03Where it sits

Ref 5 on the Syntesi 190 EL drawing

Open full diagram →
Syntesi 190 EL — Machine Structure (Syntesi 190-250), parts list
RefPart no.NamePrice
13208817FrameIn stock, $832.00
23228743Wheel AxleCod. 1105650 - 1105650A - 1105655In stock, $176.00
23228744Wheel AxleCod. 1105700 - 1105701 - 1105703 - 1105705Request price
33208782ArmIn stock, $652.00
43208746Gear BoxIn stock, $787.00
43210691Gear BoxCod. 1105701In stock, $1,008.00
53208811Complete Tank AssemblyCod. 1105700 - 1105701 - 1105703 - 1105705In stock, $1,055.00
53208830Complete Tank AssemblyCod. 1105650 - 1105655In stock, $967.00
63209786Drum Movement Reduction UnitIn stock, $358.00
73209429CoverRequest price
83228750HandwheelIn stock, $182.00
93234487MotorCod. 1105650 - 1105700 - 1105650-AIn stock, $537.00
93210698MotorCod. 1105703Request price
93209552MotorCod. 1105655 - 1105705Request price
93228382MotorCod. 1105701Request price
103208804Motor SupportIn stock, $50.00
113228745Tow BarIn stock, $94.00
123208795GuardIn stock, $32.00
133229075Electric PanelCod. 1105650 - 1105650A - 1105700 - 1105701In stock, $190.00
133210700Electric PanelCod. 1105703Request price
133228436Electric PanelCod. 1105655 - 1105705Request price
142227214Stop Ring E 14In stock, $10.00
153208770BushingIn stock, $16.00
163203917Washer D. 8x25x4In stock, $10.00
173211175Rivet Stavex 4.8In stock, $10.00
183208791BeltIn stock, $41.00
192222002Bolt M6x16In stock, $10.00
202222064Bolt M8x16In stock, $10.00
212223570Nut M8In stock, $10.00
223230876Ground Cable 300 mmRequest price
233206690Drum Locking ScrewIn stock, $41.00
243207225Washer D. 61x19x8In stock, $15.00
253208773GearIn stock, $117.00
263208792SupportIn stock, $18.00
272222114Bolt M8x90In stock, $10.00
282226700Split PinCod. 1105650 - 1105650A - 1105655In stock, $10.00
282226503Split Pin 8x63Cod. 1105700 - 1105701 - 1105703 - 1105705Request price
292211100WheelCod. 1105650 - 1105650A - 1105655In stock, $38.00
292211200WheelCod. 1105700 - 1105701 - 1105703 - 1105705In stock, $56.00
302223923Self-Locking Nut M8In stock, $10.00
312222060Bolt M8x20In stock, $10.00
322230350Greaser M8x1.25In stock, $10.00
333228746Arm ClosureIn stock, $25.00
343208776Key 14x9x25In stock, $10.00
352222467Bolt M5x20In stock, $10.00
363206748Knob M10In stock, $15.00
373225036Stop Ring E 20Request price
382224220Washer D. 10x40In stock, $10.00
393208944Shock AbsorberIn stock, $23.00
403228116Key 5x5x16In stock, $10.00
413208828PulleyIn stock, $49.00
422222190Bolt M8x40In stock, $10.00
432222112Bolt M8x100In stock, $10.00
443225750Bolt M6x10In stock, $10.00
452227205Stop Ring E 50In stock, $10.00
463208790Shock AbsorberIn stock, $10.00
473210606Bolt M10x160In stock, $10.00
482223920Self-Locking Nut M10In stock, $10.00

04Specifications

Part details

Part number
3208811(3208-811)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure (Syntesi 190-250)
Fits
3 machines

This drum assembly is a genuine IMER part, part number 3208811. The IMER Workman II 250 parts book lists it as ref. 4, "Drum Ass'y", on drawing 1.3, Workman II 250 Concrete Mixer (1105849-1105850). The Syntesi parts book lists 3208811 as ref. 5, "Complete Tank Assembly", for the Syntesi 250 EL versions 1105700, 1105701, 1105703 and 1105705.

Check part number 3208811 against your machine's parts list before you order.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
