IMER Masonry 350 Smart Cut parts book · Drawing 4
Ref 12
01Where it fits
Where this part sits on your machine
Also on this drawing
All 23 parts on Drawing 4, Machine Structure02Fits
Fits these machines
6 machines · 5 IMER parts books
From IMER parts books 3231378 r05 (2019-06), 3234338 r03 (2018-09), 3225890 r11 (2018-09), 3226875 r16 (2018-09), 3228768 r12 (2019-02).
03Where it sits

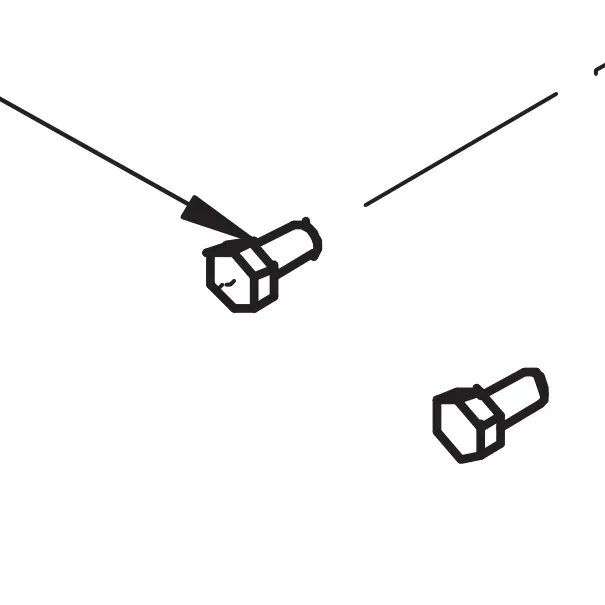

Ref 12 on the Masonry 350 Smart Cut drawing
04Specifications
Part details
This M8x16 screw is a genuine IMER part, part number 2222064. The IMER parts books list it on the Small 50 in the Pressure Gauge + Pressure Switch assembly 1107515 (ref. 9), on the Step-Up 120 in Injection Kit 1107575 (ref. 22), on the Prestige 300 in Injection Kit 1107082 (ref. 20), on the Syntesi 190 EL and 250 EL in the machine structure (Table 1/A, ref. 20) and on the Masonry 350 Smart Cut in the machine structure (Table 4, ref. 12).
The Small 50, Step 120 and Prestige books describe it as a TE screw M 8x16 Z, the Syntesi book as a bolt TE 8.8 5739 M8x16 Z and the Smart Cut 350 book as a screw 5739 - M8x16. Check part number 2222064 against your machine's parts list before ordering.
