01Where it fits
Where this part sits on your machine
Also on this drawing
All 38 parts on Drawing 2, Motor and Gearbox Assembly02Fits
Fits these machines
5 machines · 5 IMER parts books
From IMER parts books 3223425 r18 (2018-09), 3210929 r01 (2012-12), Mix 60 Plus, 3225890 r11 (2018-09), 3210884 r05 (2012-12).
03Where it sits
Ref 1 on the Minuteman drawing
04Specifications
Part details

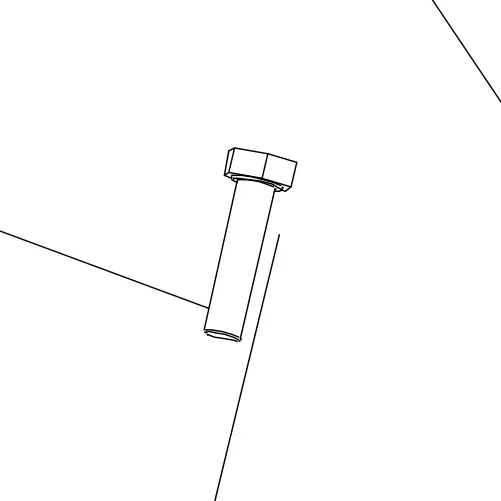

This M6x25 bolt is a genuine IMER OEM part, part number 2222010.
IMER parts books list 2222010 in the motor and gearbox assembly of the Wheelman and Minuteman mixers (ref. 1), the gearmotor assembly of the Mix 60 Plus (ref. 17), the 380V compressor of the Koine 4 (table 4, ref. 25), and the vibrating screen (table 4, ref. 11) and bag crusher (table 16, ref. 10) of the Small 50.
Check the part number against the parts book for your machine before ordering.
05Used with
Often replaced together
Wear parts next to it on the same drawing
06Documents
Parts books
Guides
Guides for this part
Troubleshooting
IMER Pump Rotor and Stator Wear: Signs, Checks, Parts
Falling material flow or a BLOC message on an IMER Step-Up 120, Small 50 or Koine 4? What the manuals say to check, how to swap the pump, and the parts listed.
4 min read
Answers
Questions about the machines it fits
07Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
