IMER Prestige 300 parts book · Drawing 4

Ref 32

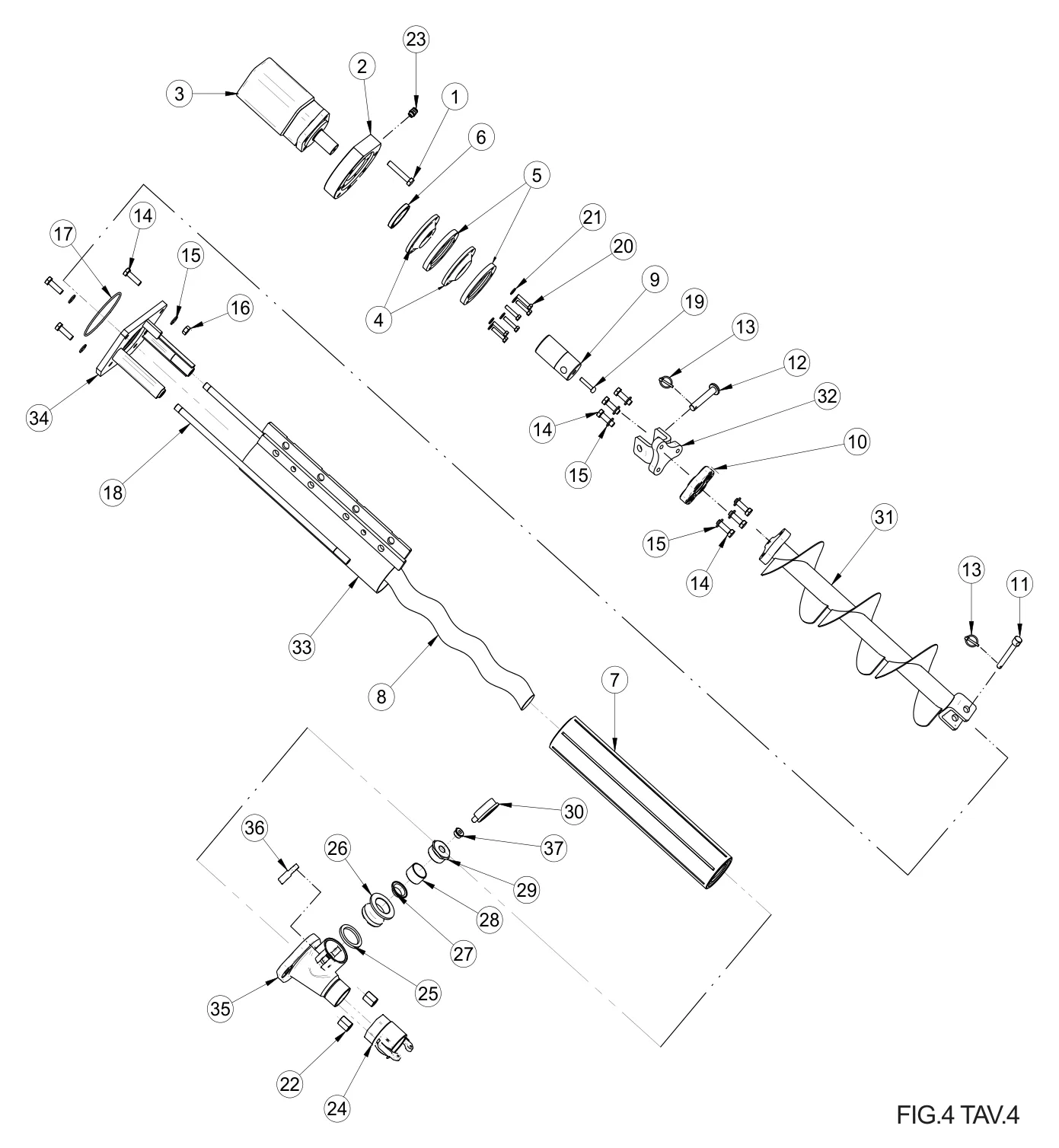

Hopper shaft joint (ref 32) on the IMER Prestige 300 Pump Unit drawing
Prestige 300 parts book · Drawing 4, Pump Unit · Ref 32 · Open full diagram

01Where it fits

Where this part sits on your machine

Also on this drawing

All 37 parts on Drawing 4, Pump Unit

02Fits

Fits these machines

2 machines · 2 IMER parts books

From IMER parts books 3234338 r03 (2018-09), 3226875 r16 (2018-09).

03Where it sits

Ref 32 on the Prestige 300 drawing

Open full diagram →
Prestige 300 Pump Unit, exploded view with reference numbers
IMER Prestige 300 · Drawing 4, Pump Unit. Select a number on the drawing to find its row.
Prestige 300 — Pump Unit, parts list
RefPart no.NamePrice
12222102ScrewNot sold onlineAsk a parts specialist
23224339Hopper Motor FlangeIn stock, $301.00
33224336Hydraulic Motor HR200 C32SamhydraulicIn stock, $1,690.00
43224337SealInt. diam. 55In stock, $66.00
53224311Seals FlangeIn stock, $78.00
63224489Sealing Ring 55x72x10In stock, $10.00
73224454Stator 2L6Not sold onlineAsk a parts specialist
83224453Rotor 2L6Not sold onlineAsk a parts specialist
93224338Motor Shaft ExtensionIn stock, $532.00
103224340Flexible CouplingIn stock, $363.00
113228470Locking Pin D=12In stock, $54.00
123224341Locking Pin D=16In stock, $54.00
133224628Snap Split Pin D=4.5In stock, $10.00
142222007Screw TE 12x35In stock, $10.00
152224380Washer 12x24 UNI 6592-69In stock, $10.00
162223921Self-Locking NutIn stock, $10.00
173224356O-Ring 4525In stock, $10.00
183224357Delivery Manifold StayIn stock, $88.00
191222252Screw TCEI M8x25In stock, $10.00
202222004Screw TE M8x35 Z UNI 5739 8.8In stock, $10.00
212224060Grower Washer D.8 ZIn stock, $10.00
223224395Special Nut M16In stock, $34.00
23322434590° Air Swivel Quick Coupling 1/4" MNot sold onlineAsk a parts specialist
243224492Cam-Lock Coupling DN50 F-2" G-FNot sold onlineAsk a parts specialist
253224499Rubber Seal DN50 Cam-LockIn stock, $10.00
263224500Pressure Gauge ConnectionIn stock, $103.00
273223392MembraneIn stock, $29.00
283225275Spacer Ring for MembraneIn stock, $53.00
293224173Reduction M1-1/2" - F1/2" BrassIn stock, $65.00
303223689Pressure Gauge D=63 0-100 Bar Conn. 1/4"In stock, $106.00
313228466Hopper Screw FeederNot sold onlineAsk a parts specialist
323226361Hopper Shaft JointIn stock, $221.00
333224334Screw ClampIn stock, $476.00
343224354Screw Support FlangeNot sold onlineAsk a parts specialist
353224390Delivery ManifoldIn stock, $356.00
363224498Cam-Lock Lever DN 25-35-50In stock, $16.00
373223609Reducer M. 1/2" - F. 1/4"In stock, $10.00

04Specifications

Part details

Part number
3226361(3226-361)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Pump Unit
Fits
2 machines

The hopper shaft joint is a genuine IMER OEM part, part number 3226361, for the IMER Prestige 300 and the IMER Step-Up 120.

In the IMER parts books it appears in the pump unit of the Prestige 300 and in the pump group of the Step-Up 120, where it is listed as the hopper shaft joint fork. Note that the Step 120 parts book uses the name "hopper shaft joint" for a different part, flexible coupling 3224340. Check the part on your machine against the pump section of your parts book before ordering.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Flat-rate shipping by size

    Parts ship at a flat rate by size, from $24. IMER machines ship free to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER machines does hopper shaft joint 3226361 fit?

The IMER Prestige 300 (pump unit) and the IMER Step-Up 120 (pump group).

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
