01Where it fits
Where this part sits on your machine
Also on this drawing
All 87 parts on Drawing 3, Machine Frame and Bodywork02Fits
Fits these machines
2 machines · 2 IMER parts books
From IMER parts books 3234441 r08 (2019-01), 3234338 r03 (2018-09).
03Where it sits
Ref 3 on the Booster 15 drawing
04Specifications
Part details
This is genuine IMER part number 3224780. The official IMER parts books list it as "Pressure Gauge Bracket" and show it for the IMER Prestige 300 and Booster 15.

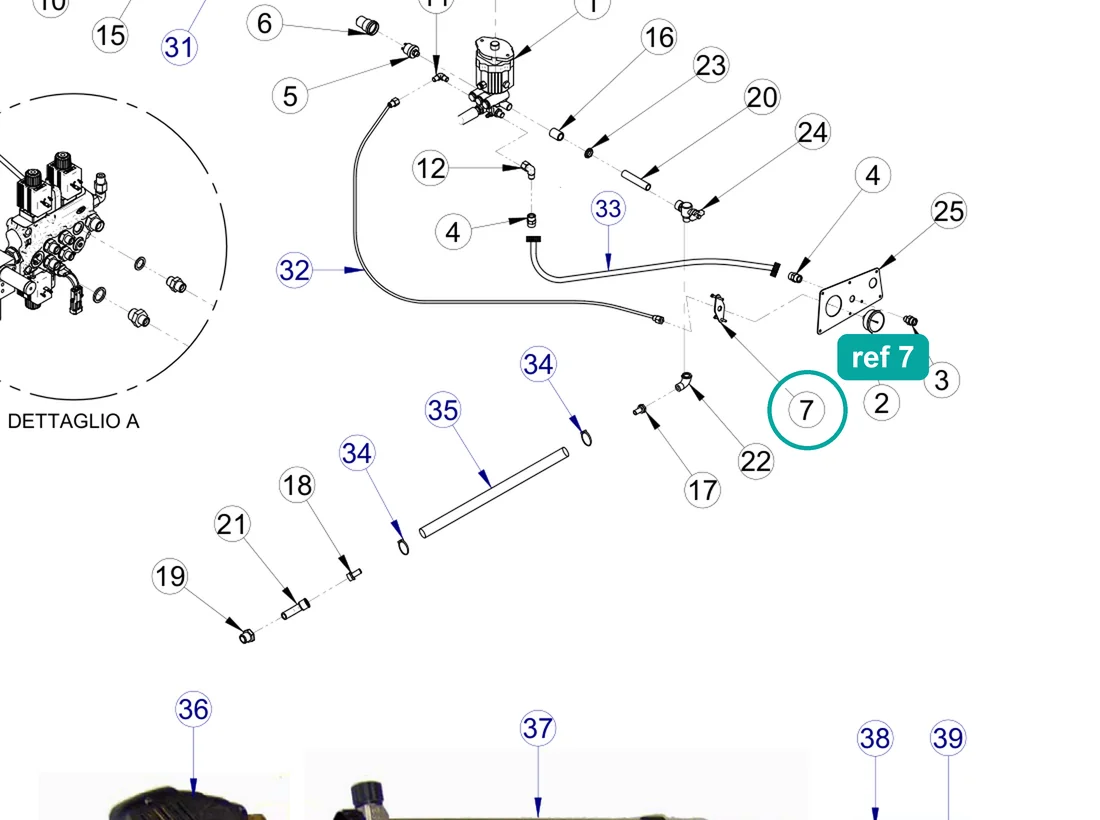

Parts-book listings: Prestige 300, table 10 (Hydraulic System Connections Assembly), ref 2; Prestige 300, table 14 (Water Cleaner Pump Kit (1107208)), ref 7; Booster 15, table 3 (Machine Frame and Bodywork), ref 3.
Check that the part number on your old part or in your machine's parts list matches 3224780 before ordering, or contact us with your machine's model and serial number.
05Used with
Often replaced together
Wear parts next to it on the same drawing
06Documents
Parts books
Answers
Questions about the machines it fits
- My Booster 15 concrete pump has lost output or pressure. What are the causes?
- When and how do I adjust the S valve on a Booster 15?
- The diesel engine on my Booster 15 will not start. What should I check?
- How much grout do I need to prime the line on a Booster 15, and what should I check before starting?
07Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
