01Where it fits
Where this part sits on your machine
Also on this drawing
All 22 parts on Drawing 2, Machine Structure - Rear02Fits
Fits these machines
2 machines · 2 IMER parts books
From IMER parts books 3234338 r03 (2018-09), 3226875 r16 (2018-09).
03Where it sits

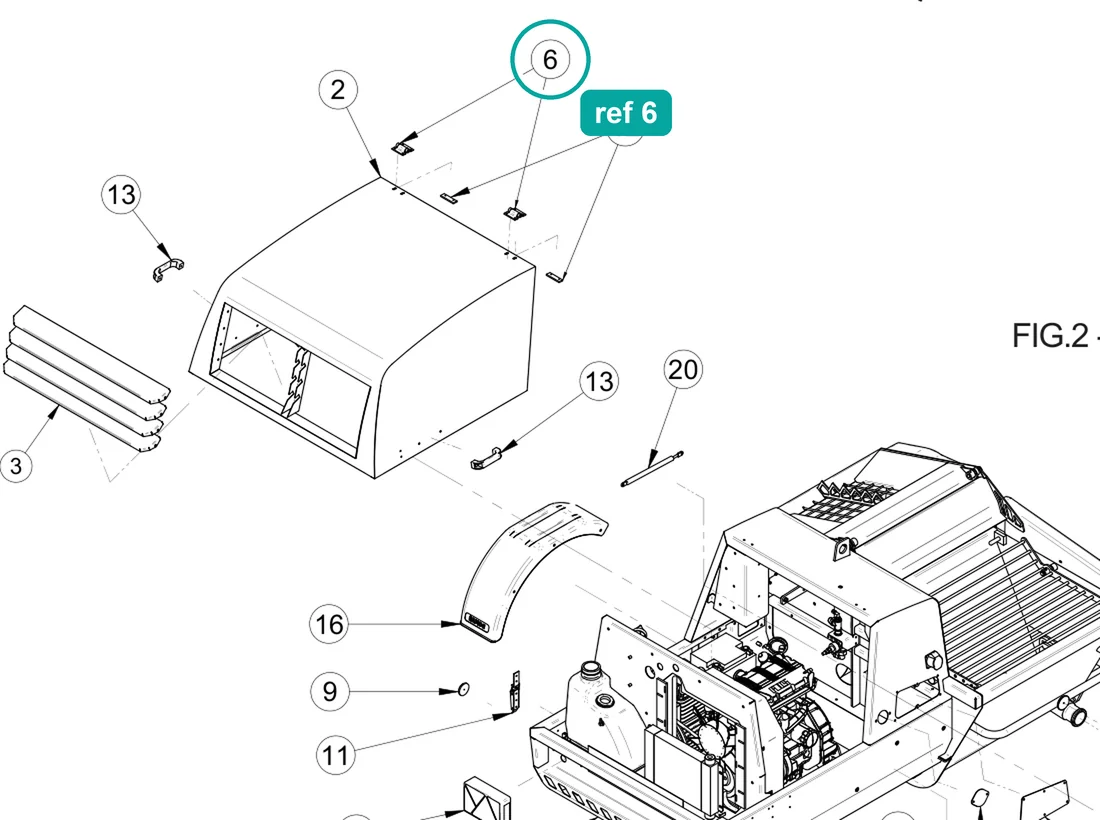

Ref 6 on the Prestige 300 drawing
04Specifications
Part details
This is genuine IMER part number 3224625. The official IMER parts books list it as "Hinge For Vans, Galvanized" and show it for the IMER Step-Up 120 and Prestige 300.
Parts-book listings: Step-Up 120, table 1 (Machine Structure), ref 12; Step-Up 120, table 2 (Street Version With Mixer), ref 12; Prestige 300, table 2 (Machine Structure - Rear), ref 6.
Check that the part number on your old part or in your machine's parts list matches 3224625 before ordering, or contact us with your machine's model and serial number.
05Used with
Often replaced together
Wear parts next to it on the same drawing
06Documents
Parts books
Guides
Guides for this part
Maintenance
IMER Mixer and Pump Cleaning, Storage and Winter Care
End-of-shift cleaning, freeze draining and storage steps from the IMER manuals for the Mix 750, Mix 120 Plus, Step-Up 120, Small 50, Koine 4 and more.
5 min read
Answers
Questions about the machines it fits
07Shipping & returns
Shipped from the USA
Fit check
Not sure it fits?
Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
