Ref 9 on the Koine 35 drawing
04Specifications
Part details
This is genuine IMER part number 3223388. The official IMER parts books list it as "Manifold" and show it for the IMER Koine 35, Koine 35 Aeroblue and Koine 4.

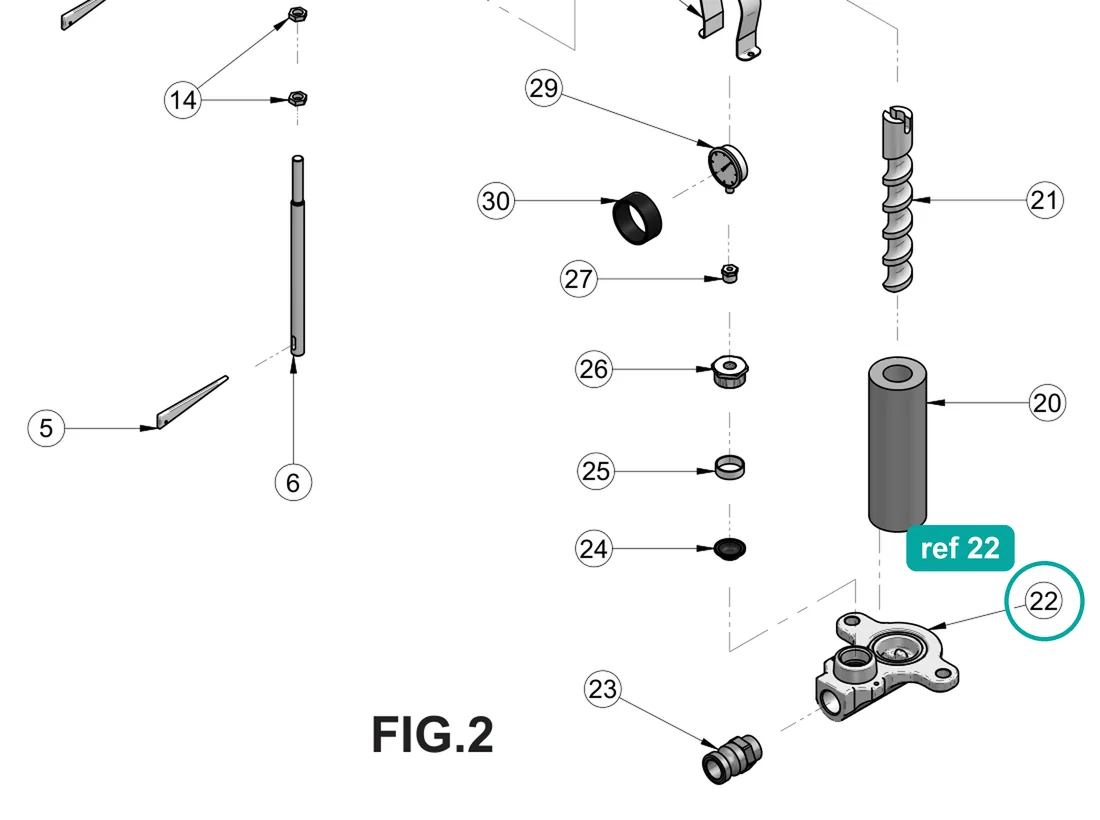

Parts-book listings: Koine 4, table 2 (Mixing Chamber), ref 22; Koine 35 and Koine 35 Aeroblue, table 1 (Machine Structure), ref 9.
Check that the part number on your old part or in your machine's parts list matches 3223388 before ordering, or contact us with your machine's model and serial number.
