IMER Masonry 350 Smart Cut parts book · Drawing 6

Ref 7
Washer Ø6×12.5 (ref 7) on the IMER Masonry 350 Smart Cut Disc Guard and Motor Assembly drawing
Masonry 350 Smart Cut parts book · Drawing 6, Disc Guard and Motor Assembly · Ref 7 · Open full diagram

01Where it fits

Where this part sits on your machine

+ 2 more machines

Also on this drawing

All 32 parts on Drawing 6, Disc Guard and Motor Assembly
  • 2
    Screw TE M6×12 5739

    1222004

    $10.00In stock

  • 15
    Bracket

    3230946

    $19.00In stock

  • 20
    Bracket mount

    3230988

    $13.00In stock

  • 3
    Screw TE M6×30 5739

    2222022

    $10.00In stock

  • 18
    Inner flange

    3230965

    $62.00In stock

  • 17
    Outer flange

    3230964

    $62.00In stock

02Fits

Fits these machines

6 machines · 6 IMER parts books

From IMER parts books 3231378 r05 (2019-06), 3210929 r01 (2012-12), 3211378 r02 (2018-09), Mix 60 Plus, 3225890 r11 (2018-09), 3210884 r05 (2012-12).

03Where it sits

Ref 7 on the Masonry 350 Smart Cut drawing

Open full diagram →
Masonry 350 Smart Cut Disc Guard and Motor Assembly, exploded view with reference numbers
IMER Masonry 350 Smart Cut · Drawing 6, Disc Guard and Motor Assembly. Select a number on the drawing to find its row.
Masonry 350 Smart Cut — Disc Guard and Motor Assembly, parts list
RefPart no.NamePrice
11193899Blade (Disc)uncertain translation: printed 'ARM DISCO'; Spanish 'disco' means disc/bladeNot sold onlineAsk a parts specialist
21222004Screw TE M6x12 5739In stock, $10.00
32222022Screw TE M6x30 5739In stock, $10.00
42222060Screw TE M8x20 5739In stock, $10.00
52224049Washer D.6x24 6593In stock, $10.00
62224204Washer D.8x24 6593In stock, $10.00
72224530Washer D.6x12.5 6592In stock, $10.00
83206223Screw TBEI M6x20In stock, $10.00
93208541Nut M20x1.5 Left-Hand 5589In stock, $10.00
103210623Nut M8Not sold onlineAsk a parts specialist
113211470Nut M6 7474In stock, $10.00
123224206Ball Valve 1/4" M/FIn stock, $41.00
133224366Air Connector 90° Quick Coupling 1/4" FNot sold onlineAsk a parts specialist
143228674Pipe Holder 1/4"x12 FNot sold onlineAsk a parts specialist
153230946BracketIn stock, $19.00
163230947Retainer RingIn stock, $38.00
173230964Outer FlangeIn stock, $62.00
183230965Inner FlangeIn stock, $62.00
193230975Splash GuardIn stock, $18.00
203230988Bracket MountIn stock, $13.00
213231004Splash Guard PlateIn stock, $12.00
223231012Handwheel M6 Relieved ThreadNot sold onlineAsk a parts specialist
233231014Air Connector Quick Coupling 1/4" MIn stock, $48.00
243231015Air Connector Quick Coupling 1/4" MIn stock, $20.00
253231162Screw TSPEI M6x16 5933In stock, $10.00
263231185Threaded Insert M6In stock, $10.00
273231366FlangeIn stock, $110.00
283237360Disc GuardIn stock, $115.00
293237361Disc Guard CoverIn stock, $100.00
303231373Sound-Absorbent PanelIn stock, $33.00
311272701Hose D.6x8In stock, $23.00
323227803Water Hose D.10x14In stock, $10.00

04Specifications

Part details

Part number
2224530(2224-530)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Disc Guard and Motor Assembly
Fits
6 machines

The Washer Ø6x12.5 is a genuine IMER part, part number 2224530.

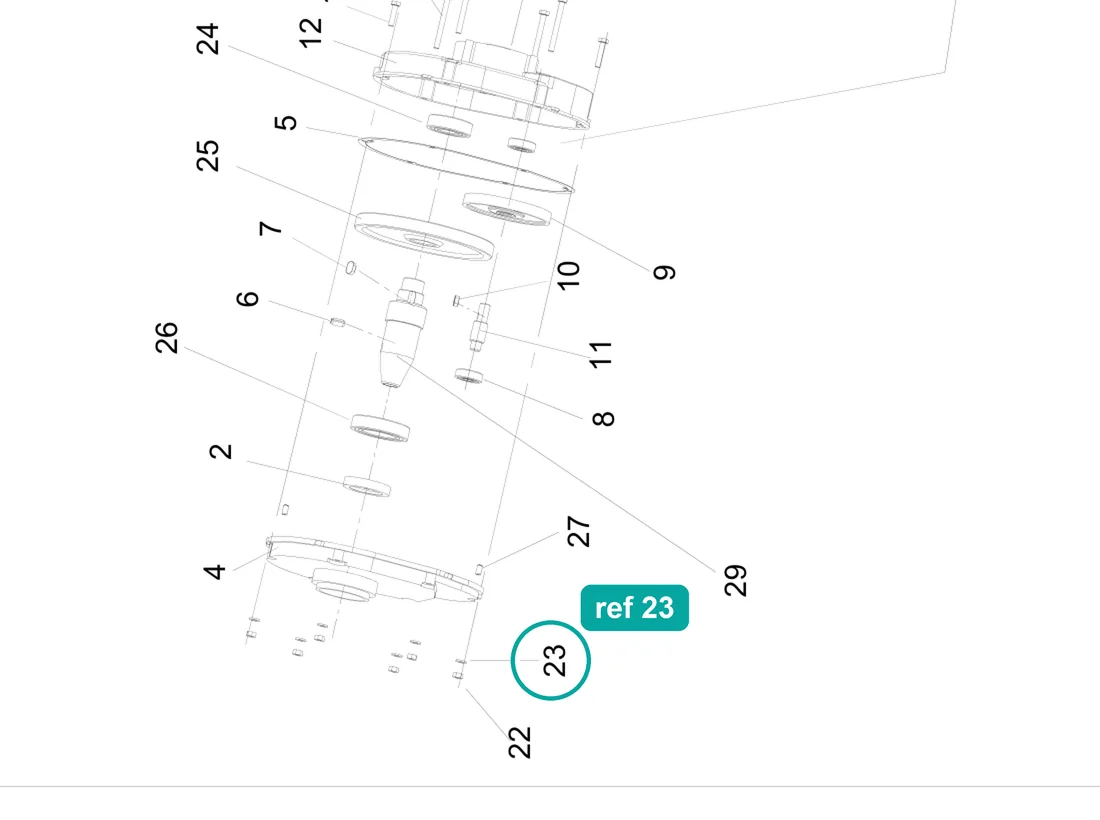

The Wheelman and Minuteman parts books list it as Washer Ø6x12.5 in the Motor and Gearbox Assembly (COD. 3210492, ref. 23), and the Mix 60 Plus book lists it in the Gearmotor Assembly (COD. 3233150, ref. 18). It also appears in the IMER parts books of the Mix 360 (TAV. 4, 7 and 8), the Masonry 350 Smart Cut (Disc Guard and Motor Assembly) and the Small 50 Vibrating Screen (1107548).

Order by part number 2224530 to match the original IMER washer.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped by IMER USA

Shipping & delivery →Returns & warranty →

  • Ships from IMER USA

    Shipped directly by IMER USA from its US warehouse, within 1–3 business days; ground delivery usually takes 5–7 business days.

  • Flat-rate shipping by size

    Parts ship at a flat rate by size, from $20. IMER machines ship free to commercial addresses in the contiguous US.

  • 30-day returns, restocking fee may apply

    30-day returns on unused items with a return authorization. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns

08Questions

Good to know

Which IMER machines does part 2224530 fit?

The IMER parts books list it for the Wheelman and Minuteman (Motor and Gearbox Assembly 3210492), the Mix 60 Plus (Gearmotor Assembly 3233150), the Mix 360, the Masonry 350 Smart Cut and the Small 50 Vibrating Screen (1107548).

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
Ask about the fitCall +1 (307) 301-7723
