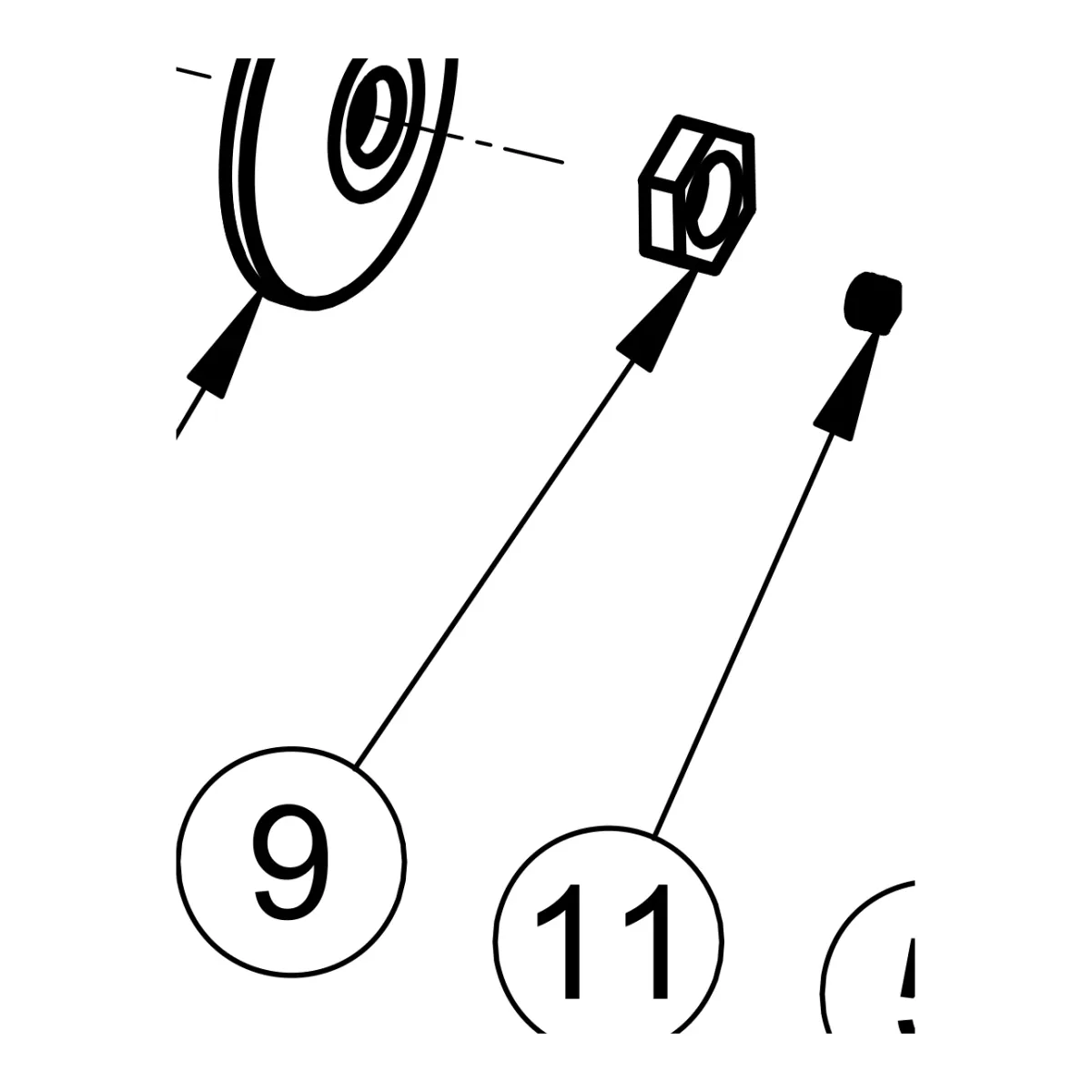

Left-hand blade nut M20×1.5 – genuine IMER part 3208541

01Where it fits

Where this part sits on your machine

Also on this drawing

All 33 parts on Drawing 6, Disc Guard And Motor Assembly
  • 9
    Outer flange

    3230964

    $62.00In stock

  • 33
    Water hose D.10×14

    3227803

    $10.00In stock

  • 7
    Inner flange

    3230965

    $62.00In stock

  • 2
    Washer 6593 6×24 z

    2224049

    $10.00In stock

  • 21
    Sound-absorbent panel

    3231373

    $33.00In stock

  • 30
    Screw TE 5739 M5×16 z

    3209797

    $10.00In stock

02Fits

Fits these machines

2 machines · 2 IMER parts books

From IMER parts books 3231790 r07 (2018-09), 3231378 r05 (2019-06).

03Where it sits

Ref 11 on the Combicut 350 iPower drawing

Open full diagram →
Combicut 350 iPower — Disc Guard And Motor Assembly, parts list
RefPart no.NamePrice
13236627Disc GuardIn stock, $233.00
22224049Washer 6593 6x24 ZIn stock, $10.00
33206223Screw TBEI 10.9 6x20 ZIn stock, $10.00
42224531Washer 6x18In stock, $10.00
53211470Self-Locking Nut M6 LowRequest price
61224780Grower Washer D.5In stock, $10.00
73230965Inner FlangeIn stock, $62.00
83231078Blade Ø 350mmRequest price
93230964Outer FlangeIn stock, $62.00
103231372Disc Guard CoverRequest price
113208541Nut 5589 M20x1.5 LH ZIn stock, $10.00
123231431Retainer RingIn stock, $29.00
133230975Splash GuardIn stock, $18.00
143224366Air Connector 90° Swivel 1/4" FRequest price
153228674Hose Barb F 1/4" x Ø12Request price
163224206Ball Valve 1/4" M-FIn stock, $41.00
173231015Air Connector Straight 1/4" DoubleRequest price
183231004Splash Guard PlateIn stock, $12.00
192222022Screw TE 5739 M6x30 ZIn stock, $10.00
203231012Handwheel 4-Lobe M6Request price
213231373Sound-Absorbent PanelIn stock, $33.00
223231014Air Connector Straight 1/4" MRequest price
233231776Laser SupportIn stock, $18.00
243227483Adjustment BlockIn stock, $59.00
253227489Nut M20x1.5In stock, $10.00
263228250Laser EmitterIn stock, $49.00
272222002Screw TE 5739 6x16 ZIn stock, $10.00
283231775Laser Support GuardIn stock, $30.00
292222458Trilobular Screw 4x6 ZRequest price
303209797Screw TE 5739 M5x16 ZIn stock, $10.00
313201217Air ConnectorRequest price
321272701Hose Ø 6x80.9 mIn stock, $23.00
333227803Water Hose Ø 10x143.7 mIn stock, $10.00

04Specifications

Part details

Part number
3208541(3208-541)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Disc Guard And Motor Assembly
Fits
2 machines

This M20x1.5 left-hand blade nut is a genuine IMER part, part number 3208541. The IMER parts books list it in Tav. 6, Disc Guard and Motor Assembly: ref. 9, "NUT M20X1,5 SX 5589", on the Smart Cut 350 14" and ref. 11, "NUT 5589 M20X1,5 SX Z", on the C 350 iPower.

Both manuals describe the blade locknut as LH thread: it is loosened by turning it clockwise and tightened anticlockwise to a torque of 40 Nm.

Check part number 3208541 against your saw's parts list before you order.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER saws does part 3208541 fit?

The IMER parts books list it for the Smart Cut 350 14" (Masonry 350 Smart Cut) and the C 350 iPower (Combicut 350 iPower), in the disc guard and motor assembly.

Which way does blade nut 3208541 turn?

It is left-hand thread. The IMER manuals say to loosen the blade locknut clockwise and tighten it anticlockwise to 40 Nm.
