Gearbox bolt M8×35 – genuine IMER part 2222018

01Where it fits

Where this part sits on your machine

Also on this drawing

All 29 parts on Drawing 2/A, Gear Box (Syntesi 190-250)
  • 15
    Nut M8

    2223570

    $10.00In stock

  • 14
    Washer M8

    2224140

    $10.00In stock

  • 21
    Bolt M8×90

    2222114

    $10.00In stock

  • 29
    Stop ring E15

    1227330

    $10.00In stock

  • 20
    Pulley

    3208762

    $50.00In stock

  • 2
    Gear box flange

    3209681

    $110.00In stock

02Fits

Fits these machines

3 machines · 2 IMER parts books

From IMER parts books 3228768 r12 (2019-02), 3209290 r11 (2019-02).

03Where it sits

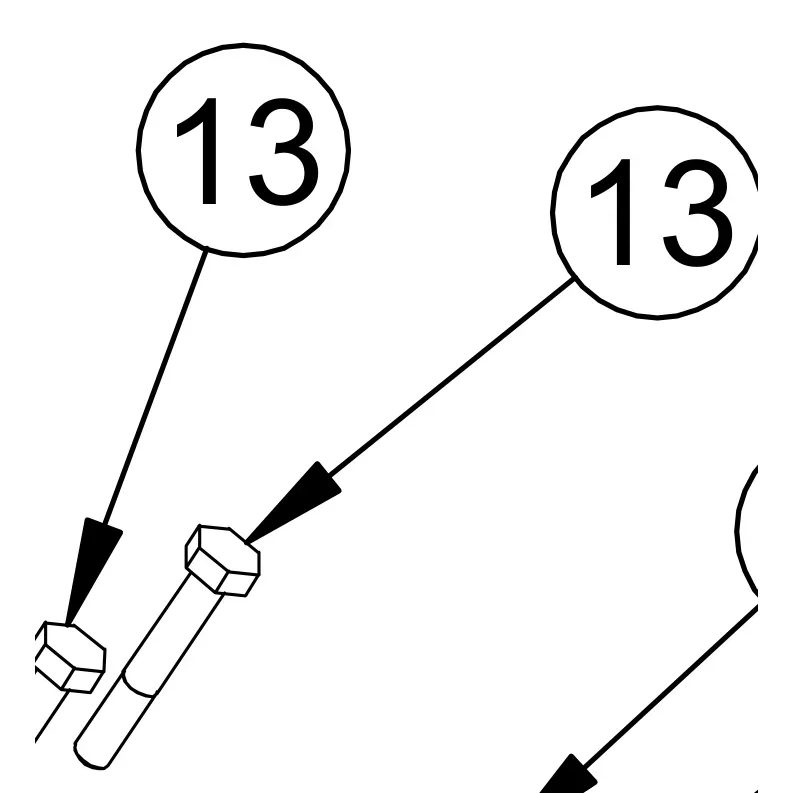

Ref 13 on the Syntesi 190 EL drawing

Open full diagram →
Syntesi 190 EL — Gear Box (Syntesi 190-250), parts list
RefPart no.NamePrice
13209680Gear Box CasingIn stock, $106.00
23209681Gear Box CasingIn stock, $110.00
32202493GearIn stock, $70.00
43209770ShaftIn stock, $77.00
53208754PinionIn stock, $58.00
63208756GearIn stock, $104.00
73208748Main ShaftIn stock, $148.00
82228820Pin D. 6x14In stock, $10.00
93200094Oil Seal 35x20x7In stock, $10.00
103225958Bearing 6204Not sold onlineAsk a parts specialist
113208752SpacerIn stock, $21.00
122227220Stop Ring E 40In stock, $10.00
132222018Bolt M8x35In stock, $10.00
142224140Washer D. 8x18In stock, $10.00
152223570Nut M8In stock, $10.00
162227220Stop Ring E 40In stock, $10.00
173213898Bearing 6207In stock, $36.00
182229249Key 5x5x12In stock, $10.00
193213887GasketIn stock, $16.00
203208762PulleyIn stock, $50.00
203210689PulleyCod. 1105701Not sold onlineAsk a parts specialist
212222114Bolt M8x90In stock, $10.00
223213897Key 10x8x15In stock, $10.00
232229250Key 5x5x15In stock, $10.00
243209679Bearing 6301In stock, $17.00
253227517Bolt M8x100In stock, $10.00
263213899Bearing 6209In stock, $59.00
273213896Oil Seal 72x52x8In stock, $10.00
282228360Shear Pin D. 8x16In stock, $10.00
291227330Stop Ring E 15In stock, $10.00

04Specifications

Part details

Part number
2222018(2222-018)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Gear Box (Syntesi 190-250)
Fits
3 machines

This M8x35 bolt is a genuine IMER part, part number 2222018. The IMER parts book lists it in the gearbox of the Workman II 250 concrete mixer (gearbox 3208746, ref. 1).

The Syntesi 190 EL and 250 EL parts book lists the same part number in their gearbox (table 2/A, ref. 13) as a TE 8.8 5737 M8x35 Z bolt. Check the part number against the parts book for your machine before ordering.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER machines use bolt 2222018?

The IMER parts books list it in the gearbox of the Workman II 250 concrete mixer and of the Syntesi 190 EL and 250 EL mixers.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
Ask about the fitCall +1 (307) 301-7723
