Screw TE M6×12 5739 – genuine IMER part 1222004 for IMER Masonry 350 Smart Cut

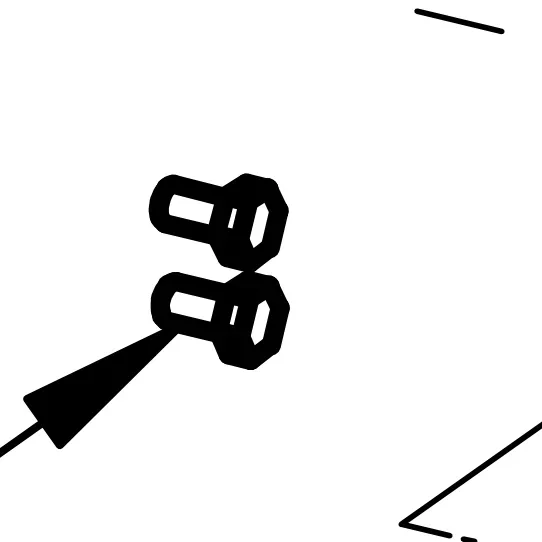

01Where it fits

Where this part sits on your machine

Also on this drawing

All 32 parts on Drawing 6, Disc Guard and Motor Assembly
  • 15
    Bracket

    3230946

    $19.00In stock

  • 20
    Bracket mount

    3230988

    $13.00In stock

  • 3
    Screw TE M6×30 5739

    2222022

    $10.00In stock

  • 18
    Inner flange

    3230965

    $62.00In stock

  • 17
    Outer flange

    3230964

    $62.00In stock

  • 9
    Left-hand blade nut M20×1.5

    3208541

    $10.00In stock

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3231378 r05 (2019-06).

03Where it sits

Ref 2 on the Masonry 350 Smart Cut drawing

Open full diagram →
Masonry 350 Smart Cut — Disc Guard and Motor Assembly, parts list
RefPart no.NamePrice
11193899Blade (Disc)uncertain translation: printed 'ARM DISCO'; Spanish 'disco' means disc/bladeRequest price
21222004Screw TE M6x12 5739In stock, $10.00
32222022Screw TE M6x30 5739In stock, $10.00
42222060Screw TE M8x20 5739In stock, $10.00
52224049Washer D.6x24 6593In stock, $10.00
62224204Washer D.8x24 6593In stock, $10.00
72224530Washer D.6x12.5 6592In stock, $10.00
83206223Screw TBEI M6x20In stock, $10.00
93208541Nut M20x1.5 Left-Hand 5589In stock, $10.00
103210623Nut M8Request price
113211470Nut M6 7474Request price
123224206Ball Valve 1/4" M/FIn stock, $41.00
133224366Air Connector 90° Quick Coupling 1/4" FRequest price
143228674Pipe Holder 1/4"x12 FRequest price
153230946BracketIn stock, $19.00
163230947Retainer RingIn stock, $38.00
173230964Outer FlangeIn stock, $62.00
183230965Inner FlangeIn stock, $62.00
193230975Splash GuardIn stock, $18.00
203230988Bracket MountIn stock, $13.00
213231004Splash Guard PlateIn stock, $12.00
223231012Handwheel M6 Relieved ThreadRequest price
233231014Air Connector Quick Coupling 1/4" MRequest price
243231015Air Connector Quick Coupling 1/4" MRequest price
253231162Screw TSPEI M6x16 5933In stock, $10.00
263231185Threaded Insert M6In stock, $10.00
273231366FlangeIn stock, $110.00
283237360Disc GuardIn stock, $115.00
293237361Disc Guard CoverIn stock, $100.00
303231373Sound-Absorbent PanelIn stock, $33.00
311272701Hose D.6x8In stock, $23.00
323227803Water Hose D.10x14In stock, $10.00

04Specifications

Part details

Part number
1222004(1222-004)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Disc Guard and Motor Assembly
Fits
1 machine

This screw TE M6x12 5739 is a genuine IMER part, part number 1222004. The IMER Smart Cut 350 14" parts book lists it as ref. 2 in Table 6, Disc Guard and Motor Assembly, of the IMER Masonry 350 Smart Cut saw (model 1188975).

Check that the part number on your old part or in your machine's parts list matches 1222004 before ordering.
