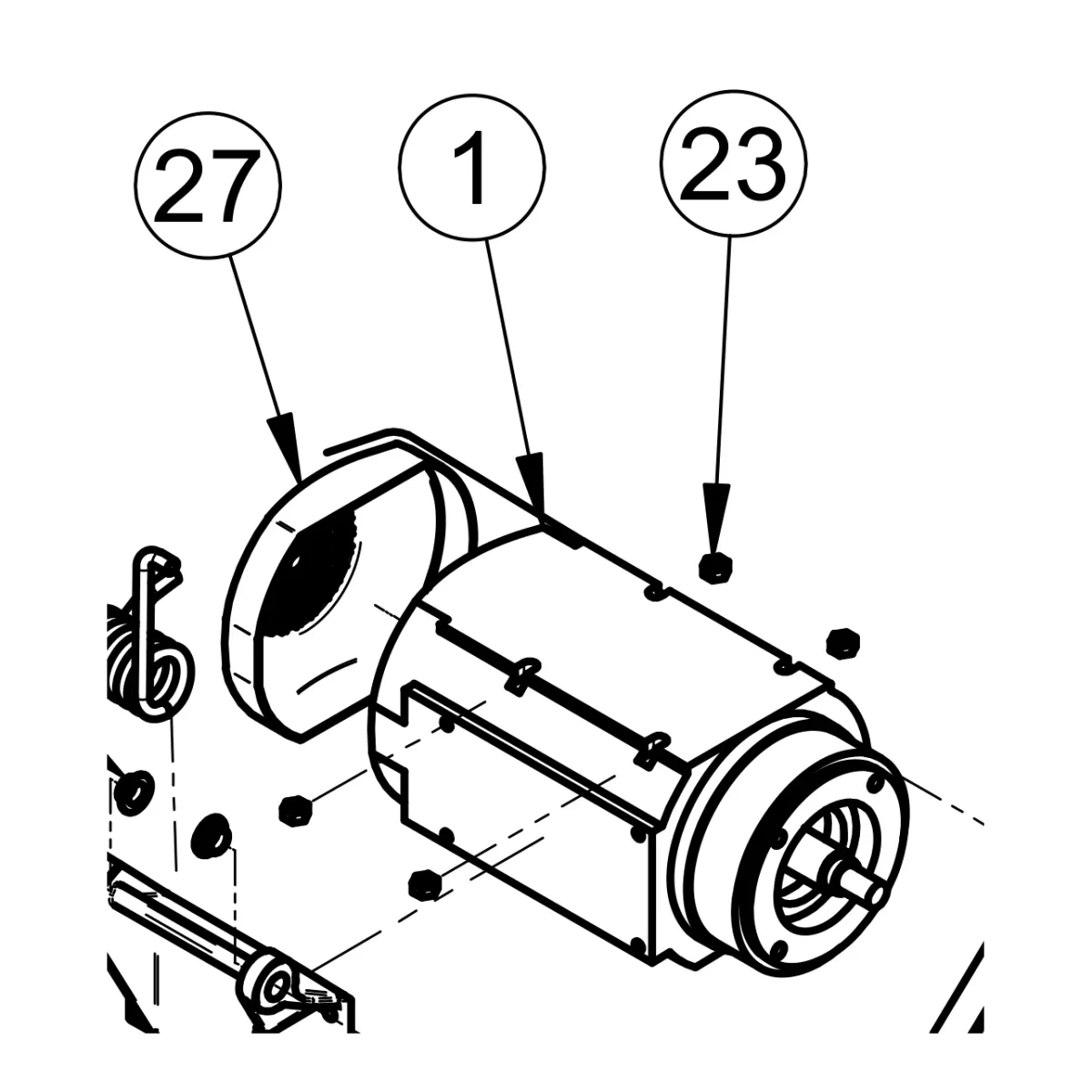

Electric motor – genuine IMER part 3230037

01Where it fits

Where this part sits on your machine

Also on this drawing

All 27 parts on Drawing 4, Blade Guard and Motor Assembly
  • 23
    Nut M6 5588

    2223280

    $10.00In stock

  • 27
    Electric motor fan cover

    3230644

    $31.00In stock

  • 3
    Motor assembly spring

    3210087

    $27.00In stock

  • 24
    Self-locking nut M6

    2223924

    $10.00In stock

  • 25
    Bushing GFM-1012-6

    3230251

    $10.00In stock

  • 13
    Water cock

    3207884

    $11.00In stock

02Fits

Fits these machines

3 machines · 2 IMER parts books

From IMER parts books Combicut 250 VA, 3227118 r14 (2018-09).

03Where it sits

Ref 1 on the Combicut 250 VA drawing

Open full diagram →
Combicut 250 VA — Blade Guard and Motor Assembly, parts list
RefPart no.NamePrice
13230037MotorIn stock, $789.00
23230255Motor SupportIn stock, $61.00
33210087SpringIn stock, $27.00
43211935Blade GuardIn stock, $34.00
53210043Spacer BracketIn stock, $22.00
63210238Inner FlangeIn stock, $117.00
71193782BladeRequest price
83210046Outer FlangeIn stock, $58.00
93211933Blade GuardIn stock, $31.00
102224535WasherIn stock, $10.00
112222587Bolt TSPEI 5933 M8x20In stock, $10.00
123204399Bolt TCEI 5931 M5x25In stock, $10.00
133207884Water CockIn stock, $11.00
143209060Bolt TE 8.8 5737 M6x35In stock, $10.00
152222001Bolt TE 8.8 5737 M4x20In stock, $10.00
162223352Nut 5588 D.5In stock, $10.00
172223920Nut 7474 M10In stock, $10.00
182223926Nut 7473 M4In stock, $10.00
193210050Spray ShieldIn stock, $28.00
203210053Nut 5588 M12 Z Left-HandRequest price
212222540Bolt TCEI 5931 M6x20In stock, $10.00
222224380Washer 6592 D.12x25In stock, $10.00
232223280Nut 5588 M6In stock, $10.00
242223924Nut 7473 M6In stock, $10.00
253230251Bushing GFM-1012-6In stock, $10.00
263230250PinRequest price
273230644Fan CoverIn stock, $31.00

04Specifications

Part details

Part number
3230037(3230-037)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Blade Guard and Motor Assembly
Fits
3 machines

The electric motor, part number 3230037, is a genuine IMER OEM part for IMER Combicut 250 VA series saws.

The IMER parts books list it as ref. 1, Motor, in Tav. 4, Blade Protection Motor Assembly, of the Combicut 250 VA and of the Combicut 250/1000 VA and 250/1500 VA.

The technical data in these manuals give the saw motor as single phase 115V/60Hz, 1.3 kW, 14.4 A absorbed current, 3400 rpm, protection category IP55.

Confirm your saw model against its parts book before ordering.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER saws does motor 3230037 fit?

The IMER parts book lists part 3230037 for the Combicut 250 VA, Combicut 250/1000 VA and Combicut 250/1500 VA.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
