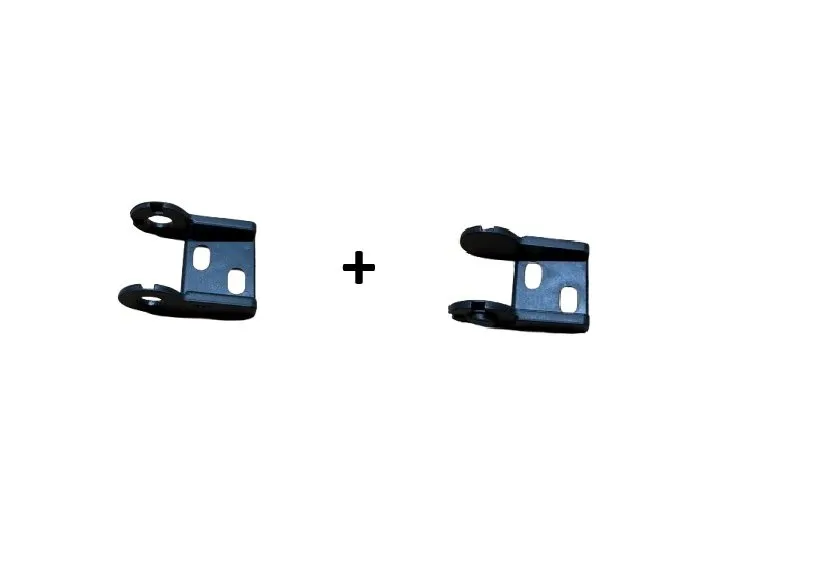

Chain terminal kit – genuine IMER part 3236631

01Where it fits

Where this part sits on your machine

Also on this drawing

All 33 parts on Drawing 1.5, Machine Structure (Combi 250/1500 VA)
  • 8
    Slideway CM250/1500 VA

    3234828

    $606.00In stock

  • 2
    R.h. surface CM250/1500 VA

    3234826

    $252.00In stock

  • 9
    Right fence

    3226073

    $48.00In stock

  • 30
    Screw TE 5739 M5×16 z

    3209797

    $10.00In stock

  • 25
    Millimetred strip CM250/1500 VA

    3232981

    $32.00In stock

  • 31
    Chain guide

    3236633

    $60.00In stock

02Fits

Fits these machines

2 machines · 1 IMER parts book

From IMER parts book 3227118 r14 (2018-09).

03Where it sits

Ref 32 on the Combicut 250/1500 VA drawing

Open full diagram →
Combicut 250/1500 VA — Machine Structure (Combi 250/1500 VA), parts list
RefPart no.NamePrice
13234825Tank CM250/1500 VAIn stock, $577.00
23234826R.H. Surface CM250/1500 VAIn stock, $252.00
33234827L.H. Surface CM250/1500 VAIn stock, $331.00
43226070Rear SideIn stock, $58.00
53226069Front SideIn stock, $58.00
63226359Rear ArmIn stock, $92.00
73226357Front ArmIn stock, $92.00
83234828Slideway CM250/1500 VAIn stock, $606.00
93226073Right FenceIn stock, $48.00
103226074Left FenceIn stock, $48.00
112222016Bolt TE 5739 M6x20 ZRequest price
123210071T-NutIn stock, $10.00
133210099Bolt TEFR 6x25 ZIn stock, $10.00
143210576Washer D.8,4x17x1,5In stock, $10.00
153225750Washer D.6x18 ZSame code is listed as Bolt TEFR 6x10 in Tav. 1In stock, $10.00
162224529Nut 7474 M5Same code is listed as Washer D.5x10 elsewhereRequest price
172235429CapRequest price
182222545Bolt TCEI 5931 M6x30In stock, $10.00
193204865Knob M6In stock, $10.00
203226087Washer D.10,5x17x1,5In stock, $10.00
213226088BushingIn stock, $10.00
223236632BracketIn stock, $41.00
232223920Nut 7474 M10In stock, $10.00
243226747Bolt TTDE 5732 8x40In stock, $10.00
253232981Millimetred Strip CM250/1500 VAIn stock, $32.00
262284866Knob M8In stock, $10.00
272222584Bolt TSPEI 5933 M6x25In stock, $10.00
282224529Washer D.5x10 ZRequest price
293236630Cable Holder Chain CM250/1500 VAIn stock, $91.00
303209797Bolt M5x16 ZIn stock, $10.00
313236633Chain GuideIn stock, $60.00
323236631Chain AttachmentIn stock, $20.00
342222449Bolt TC 6954 3.5x19In stock, $10.00
393226949BracketIn stock, $54.00

04Specifications

Part details

Part number
3236631(3236-631)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure (Combi 250/1000 VA)
Fits
2 machines

This kit is a genuine IMER OEM part, part number 3236631. The IMER Combi 250/1000 VA - 250/1500 VA parts book lists it in both machine structure tables: as ref. 30, Terminal Kit, in Tav. 1 (Combicut 250/1000 VA parts) and as ref. 32, Chain Attack, in Tav. 1.5 (Combicut 250/1500 VA parts).

Our store lists it as a saw chain connection kit with the female connection 3226948 and the male connection 3226947 together.

Check part number 3236631 against your machine's parts list before you order.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER machines does part 3236631 fit?

The IMER parts book lists it in the Machine Structure assembly of the Combicut 250/1000 VA and Combicut 250/1500 VA.

What is included in kit 3236631?

The female chain connection 3226948 and the male chain connection 3226947.
