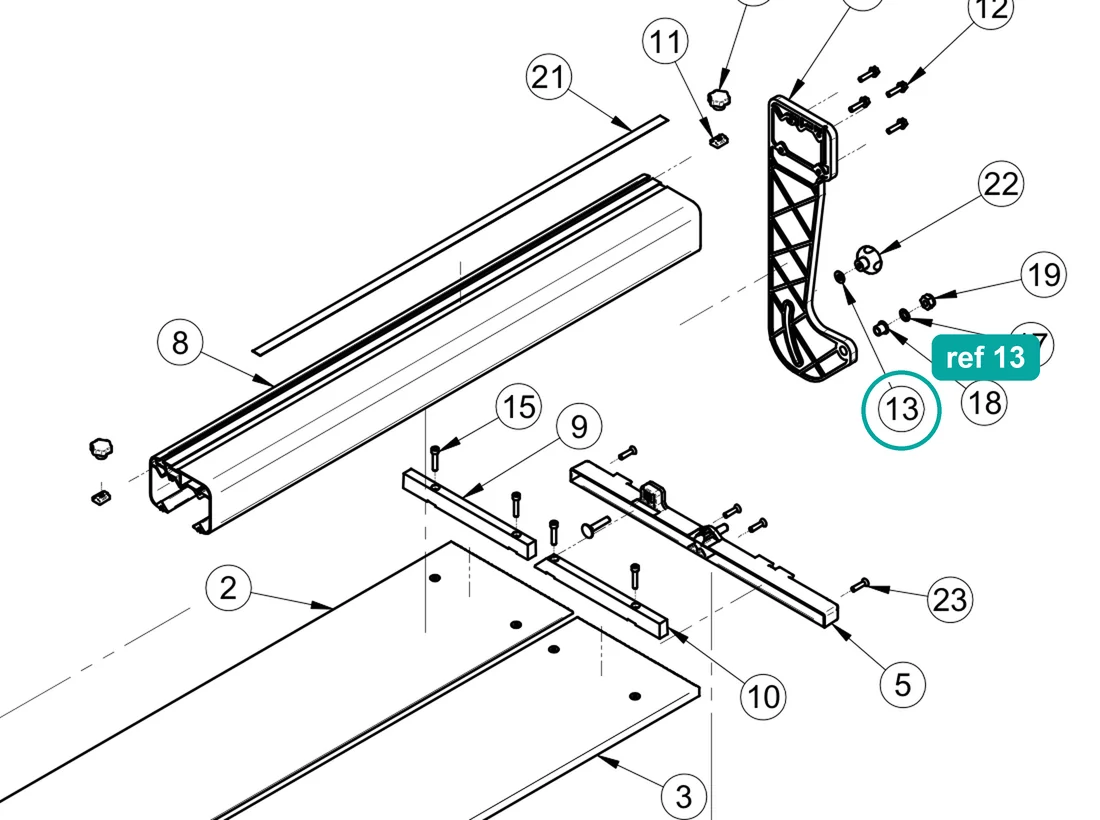

Washer D.8,4×17×1,5 (ref 13) highlighted on an IMER parts-book drawing – part 3210576

01Where it fits

Where this part sits on your machine

Also on this drawing

All 26 parts on Drawing 1, Machine Structure
  • 18
    Bushing

    3226088

    $10.00In stock

  • 17
    Washer D.10,5×17×1,5

    3226087

    $10.00In stock

  • 19
    Self-locking nut M10

    2223920

    $10.00In stock

  • 23
    Bolt TSPEI 5933 M6×25

    2222584

    $10.00In stock

  • 22
    Knob M8

    2284866

    $10.00In stock

  • 5
    Front side

    3226068

    $53.00In stock

02Fits

Fits these machines

5 machines · 4 IMER parts books

From IMER parts books 3226123 r07 (2018-09), Combicut 250 VA, 3227118 r14 (2018-09), 3236275 r02 (2019-03).

03Where it sits

Ref 13 on the Combicut 200 VA drawing

Open full diagram →
Combicut 200 VA — Machine Structure, parts list
RefPart no.NamePrice
13226287TankIn stock, $122.00
23226063R.H. SurfaceIn stock, $144.00
33226264L.H. SurfaceIn stock, $144.00
43226067Rear SideIn stock, $53.00
53226068Front SideIn stock, $53.00
63226013Rear ArmIn stock, $87.00
73226007Front ArmIn stock, $88.00
83226061SlidewayIn stock, $296.00
93226071Right FenceIn stock, $40.00
103226072Left FenceIn stock, $40.00
113210071T-NutIn stock, $10.00
123226709Bolt TEFR 6x35Request price
133210576Washer D.8,4x17x1,5In stock, $10.00
142235429CapRequest price
152222545Bolt TCEI 5931 M6x30In stock, $10.00
163204865Knob M6In stock, $10.00
173226087Washer D.10,5x17x1,5In stock, $10.00
183226088BushingIn stock, $10.00
192223920Nut 7474 M10In stock, $10.00
203226747Bolt TTDE 5732 8x40In stock, $10.00
213210069Millimetred StripRequest price
222284866Knob M8In stock, $10.00
232222584Bolt TSPEI 5933 M6x25In stock, $10.00
243210070RodIn stock, $22.00
253226082BracketRequest price
262222449Bolt TC 6954 3.5x19In stock, $10.00

04Specifications

Part details

Part number
3210576(3210-576)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure
Fits
5 machines

This is genuine IMER part number 3210576. The official IMER parts books list it as "Washer D.8,4x17x1,5" and show it for the IMER Combicut 200 VA, Combicut 250 VA, Combicut 250/1000 VA and 2 more models.

Parts-book listings: Combicut 200 VA, table 1 (Machine Structure), ref 13; Combicut 250/1000 VA and Combicut 250/1500 VA, table 1 (Machine Structure (Combi 250/1000 VA)), ref 14; Combicut 250/1000 VA and Combicut 250/1500 VA, table 1.5 (Machine Structure (Combi 250/1500 VA)), ref 14; Masonry 750 Plus, table 4 (Machine Structure (Disc Guard and Cooling)), ref 64; Combicut 250 VA, table 1 (Machine Structure), ref 13.

Check that the part number on your old part or in your machine's parts list matches 3210576 before ordering, or contact us with your machine's model and serial number.
