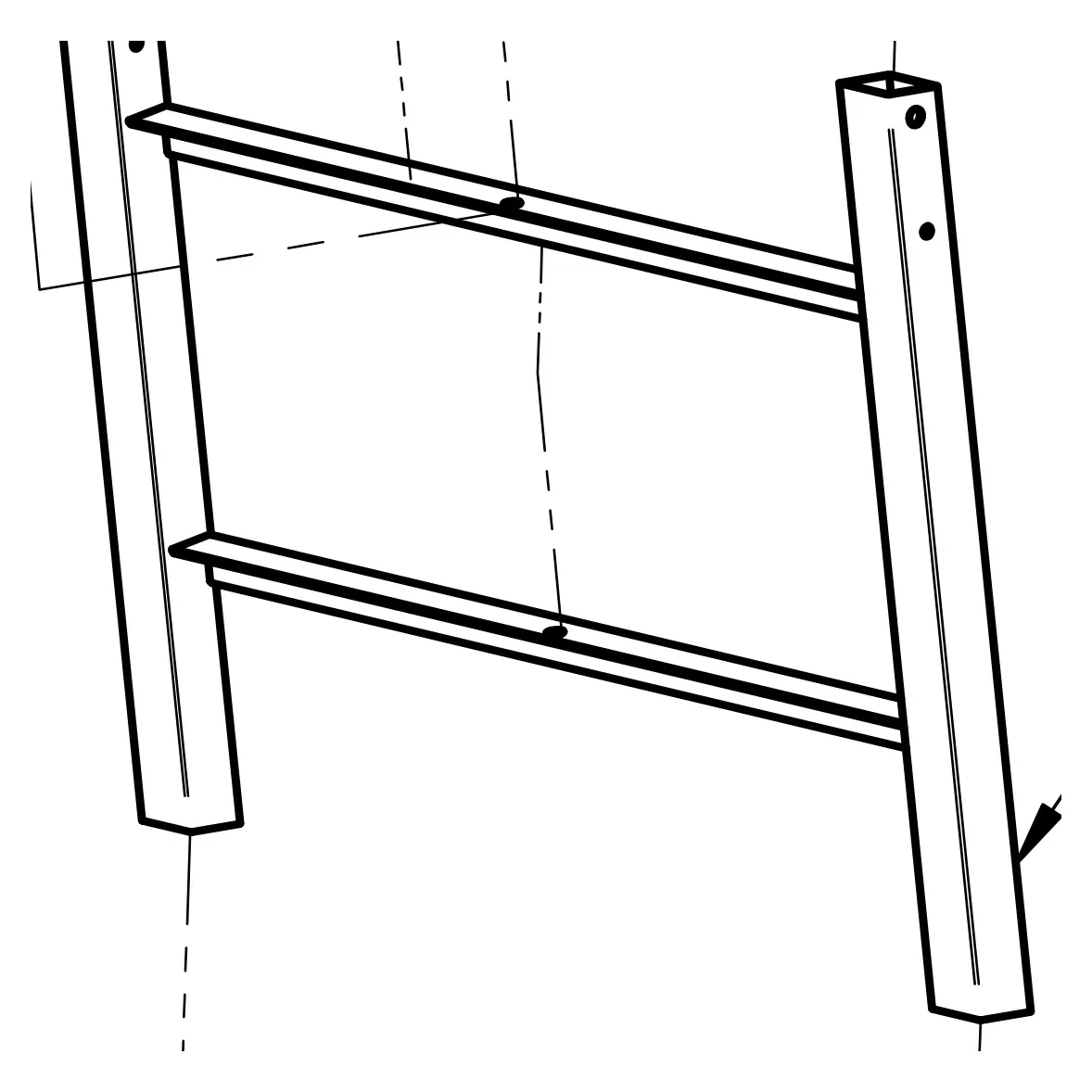

Front leg – genuine IMER part 3236865 for IMER Masonry 350 Smart Cut

01Where it fits

Where this part sits on your machine

Also on this drawing

All 23 parts on Drawing 4, Machine Structure
  • 20
    Cap GPN 320 GL 30×2

    3208452

    $10.00In stock

  • 7
    Plug GPN260 Q30×30

    3205943

    $10.00In stock

  • 3
    Washer M10×20 z

    2224340

    $10.00In stock

  • 23
    Plate

    3235360

    $10.00In stock

  • 5
    Self-locking nut M10

    2223920

    $10.00In stock

  • 6
    Guide

    3231005

    $60.00In stock

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3231378 r05 (2019-06).

03Where it sits

Ref 14 on the Masonry 350 Smart Cut drawing

Open full diagram →
Masonry 350 Smart Cut — Machine Structure, parts list
RefPart no.NamePrice
13236867FrameIn stock, $1,176.00
23209809Rubber WheelIn stock, $18.00
32224340Washer 6592 - 10x21In stock, $10.00
42222077Screw 5737 - M10x20Request price
52223920Nut 7474 - M10In stock, $10.00
63231005GuideIn stock, $60.00
73205943Plug GPN260 Q30x30In stock, $10.00
83209032Plug GPN260 R100x60In stock, $29.00
92224005Threaded Insert 9418 - M8In stock, $10.00
103206312ClampIn stock, $10.00
112224140Washer 6593 - 8x24In stock, $10.00
122222064Screw 5739 - M8x16In stock, $10.00
133206361Screw 8117 - 4.8x13In stock, $10.00
143236865Front LegIn stock, $149.00
153236866Rear LegIn stock, $147.00
162222547Screw 5931 - M6x50In stock, $10.00
172223924Nut 7473 - M6In stock, $10.00
182257705Plug GPN260 Q40x40Request price
192222148Screw 5737 - M10x65In stock, $10.00
203208452Plug GPN 320 GL 30x2In stock, $10.00
212226700Split Pin AMA 3.5/72In stock, $10.00
223235350AxleIn stock, $126.00
233235360PlateIn stock, $10.00

04Specifications

Part details

Part number
3236865(3236-865)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure
Fits
1 machine

This front leg is a genuine IMER part, part number 3236865, for the IMER Masonry 350 Smart Cut saw (model 1188975). The Smart Cut 350 14" parts book lists it as ref. 14 in Table 4 (Structure Machine); the rear leg is ref. 15, part 3236866. Our store lists it as "M400 Smart Painted Front Leg".

Check that the part number on your old part or in your machine's parts list matches 3236865 before ordering.

05Used with

Often replaced together

Wear parts next to it on the same drawing
  • 2224340

    Washer M10×20 z

    Ref 3 on the same drawing

    $10.00

    In stock

  • 2224140

    Washer M8

    Ref 11 on the same drawing

    $10.00

    In stock

06Documents

Parts books

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
