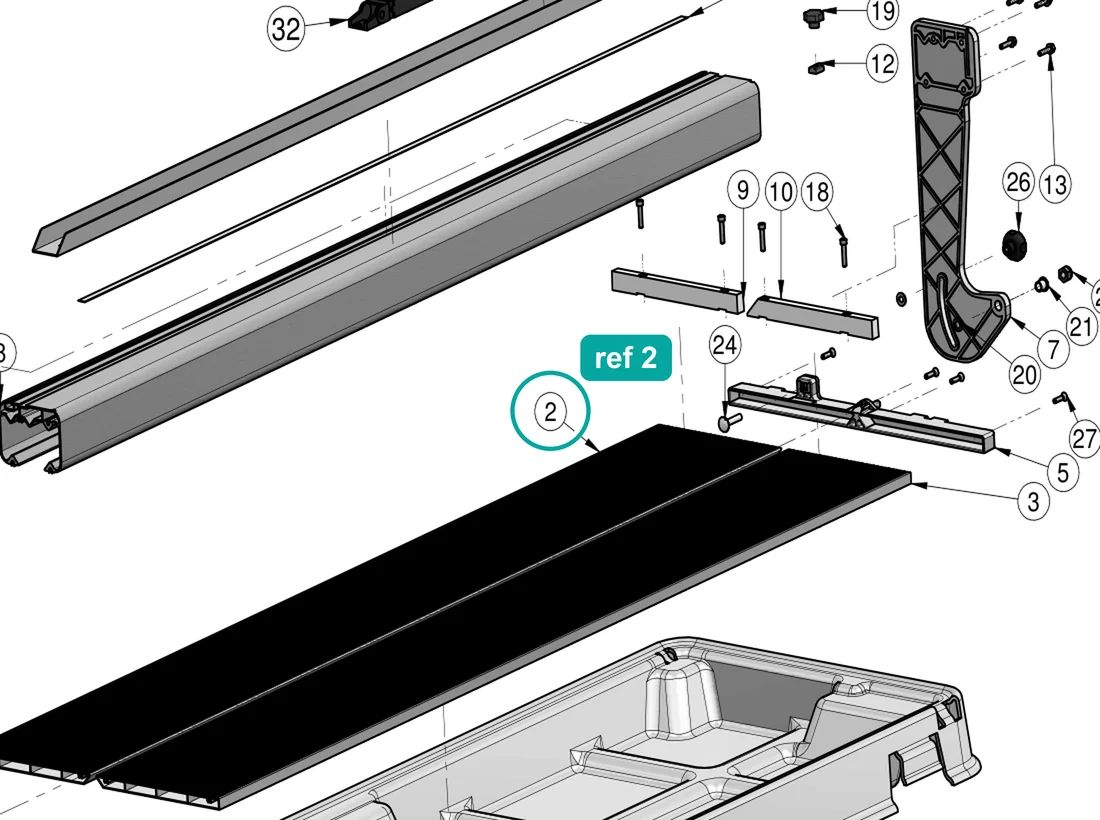

R.h. surface CM250/1500 VA (ref 2) highlighted on an IMER parts-book drawing – part 3234826

01Where it fits

Where this part sits on your machine

Also on this drawing

All 33 parts on Drawing 1.5, Machine Structure (Combi 250/1500 VA)
  • 9
    Right fence

    3226073

    $48.00In stock

  • 10
    Left fence

    3226074

    $48.00In stock

  • 18
    Bolt TCEI 5931 M6×30

    2222545

    $10.00In stock

  • 12
    T-nut

    3210071

    $10.00In stock

  • 3
    L.h. surface CM250/1500 VA

    3234827

    $331.00In stock

  • 7
    Front arm

    3226357

    $92.00In stock

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3227118 r14 (2018-09).

03Where it sits

Ref 2 on the Combicut 250/1500 VA drawing

Open full diagram →
Combicut 250/1500 VA — Machine Structure (Combi 250/1500 VA), parts list
RefPart no.NamePrice
13234825Tank CM250/1500 VAIn stock, $577.00
23234826R.H. Surface CM250/1500 VAIn stock, $252.00
33234827L.H. Surface CM250/1500 VAIn stock, $331.00
43226070Rear SideIn stock, $58.00
53226069Front SideIn stock, $58.00
63226359Rear ArmIn stock, $92.00
73226357Front ArmIn stock, $92.00
83234828Slideway CM250/1500 VAIn stock, $606.00
93226073Right FenceIn stock, $48.00
103226074Left FenceIn stock, $48.00
112222016Bolt TE 5739 M6x20 ZRequest price
123210071T-NutIn stock, $10.00
133210099Bolt TEFR 6x25 ZIn stock, $10.00
143210576Washer D.8,4x17x1,5In stock, $10.00
153225750Washer D.6x18 ZSame code is listed as Bolt TEFR 6x10 in Tav. 1In stock, $10.00
162224529Nut 7474 M5Same code is listed as Washer D.5x10 elsewhereRequest price
172235429CapRequest price
182222545Bolt TCEI 5931 M6x30In stock, $10.00
193204865Knob M6In stock, $10.00
203226087Washer D.10,5x17x1,5In stock, $10.00
213226088BushingIn stock, $10.00
223236632BracketIn stock, $41.00
232223920Nut 7474 M10In stock, $10.00
243226747Bolt TTDE 5732 8x40In stock, $10.00
253232981Millimetred Strip CM250/1500 VAIn stock, $32.00
262284866Knob M8In stock, $10.00
272222584Bolt TSPEI 5933 M6x25In stock, $10.00
282224529Washer D.5x10 ZRequest price
293236630Cable Holder Chain CM250/1500 VAIn stock, $91.00
303209797Bolt M5x16 ZIn stock, $10.00
313236633Chain GuideIn stock, $60.00
323236631Chain AttachmentIn stock, $20.00
342222449Bolt TC 6954 3.5x19In stock, $10.00
393226949BracketIn stock, $54.00

04Specifications

Part details

Part number
3234826(3234-826)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure (Combi 250/1500 VA)
Fits
1 machine

This is genuine IMER part number 3234826. The official IMER parts books list it as "R.H. Surface CM250/1500 VA" and show it for the IMER Combicut 250/1000 VA and Combicut 250/1500 VA.

Parts-book listings: Combicut 250/1000 VA and Combicut 250/1500 VA, table 1.5 (Machine Structure (Combi 250/1500 VA)), ref 2.

Check that the part number on your old part or in your machine's parts list matches 3234826 before ordering, or contact us with your machine's model and serial number.
