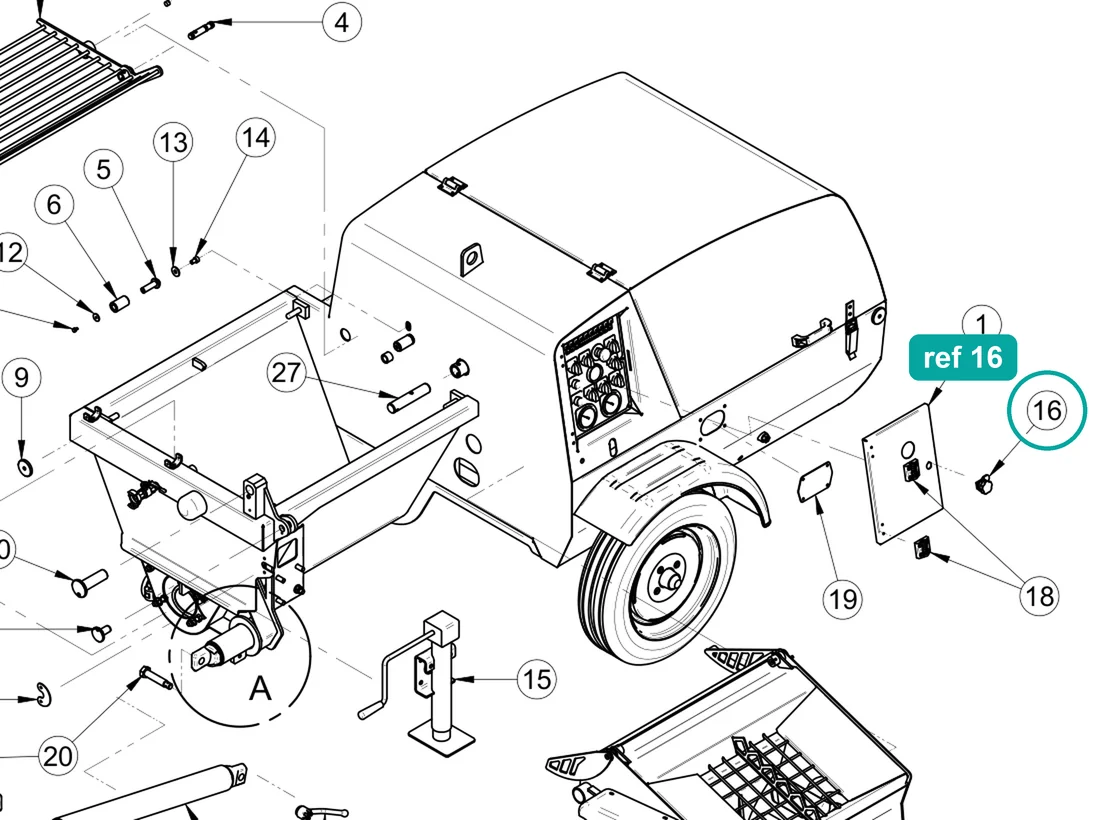

Lock (ref 16) highlighted on the IMER Prestige 300 parts diagram, Machine Structure - Front – part 3230778

01Where it fits

Where this part sits on your machine

Also on this drawing

All 29 parts on Drawing 1, Machine Structure - Front
  • 18
    Hinge

    3230777

    $58.00In stock

  • 19
    Cover

    3230231

    $64.00In stock

  • 15
    Foot

    3230701

    $467.00In stock

  • 21
    Reflector yellow

    3224855

    $10.00In stock

  • 27
    Rear pivot

    3224306

    $28.00In stock

  • 14
    Screw TCEI 10×16

    3272597

    $10.00In stock

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3234338 r03 (2018-09).

03Where it sits

Ref 16 on the Prestige 300 drawing

Open full diagram →
Prestige 300 — Machine Structure - Front, parts list
RefPart no.NamePrice
13230229Electrical Cabinet DoorRequest price
23230240Hopper GrilleIn stock, $656.00
33230244Foot PlateIn stock, $40.00
43230268PinØ 18In stock, $51.00
53230269PinØ 16In stock, $127.00
63230267RollerIn stock, $83.00
73230271CasingIn stock, $175.00
83224308PinØ 20Request price
93224854Reflector WhiteRequest price
103224309Front PivotØ 30In stock, $119.00
112222003Screw TE M6x10In stock, $10.00
122224049Washer D.6x24In stock, $10.00
132224260Washer D.10x30 Th.2.5Request price
143272597Screw TCEI 10x16In stock, $10.00
153230701FootIn stock, $467.00
163230778LockIn stock, $129.00
173210631Towing Eye France Type D.68x25Request price
183230777HingeIn stock, $58.00
193230231CoverIn stock, $64.00
203227807Locking PinIn stock, $234.00
213224855Reflector YellowIn stock, $10.00
223233401Middle ArmRequest price
233225922Towing Head ConnectionRequest price
243225924Adjustment LeverRequest price
253209959Towing HeadIn stock, $173.00
263226027Bushing + MagnetsIn stock, $71.00
273224306Rear PivotØ 30In stock, $28.00
283233396Drawbar Terminal Kit + Middle DrawbarIn stock, $1,490.00
293231195Security CordIn stock, $72.00

04Specifications

Part details

Part number
3230778(3230-778)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Machine Structure - Front
Fits
1 machine

This is genuine IMER part number 3230778. The official IMER parts books list it as "Lock" and show it for the IMER Prestige 300.

Parts-book listings: Prestige 300, table 1 (Machine Structure - Front), ref 16.

Check that the part number on your old part or in your machine's parts list matches 3230778 before ordering, or contact us with your machine's model and serial number.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
