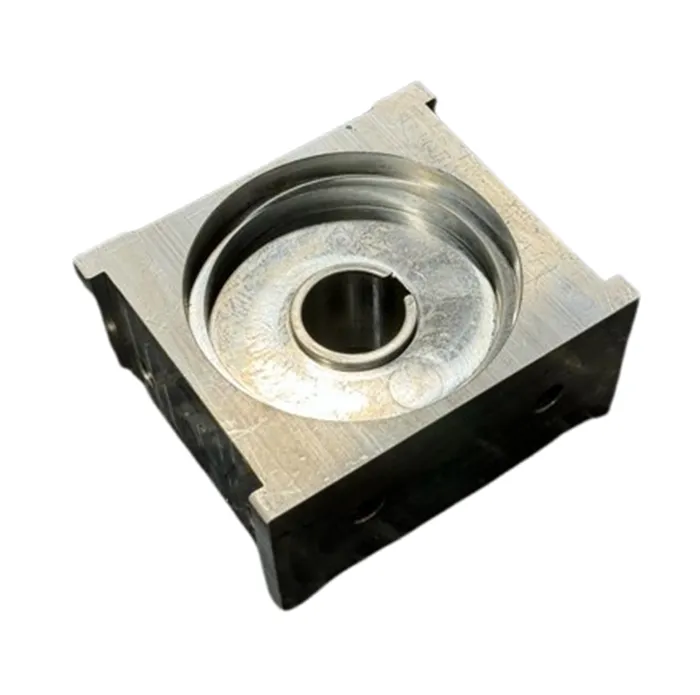

Mixer head – genuine IMER part 3230009

01Where it fits

Where this part sits on your machine

Also on this drawing

All 42 parts on Drawing 2, Tank
  • 19
    Oil seal ring 100×80×10

    2207750

    $12.00In stock

  • 5
    Outer mixer paddle

    3229588

    $167.00In stock

  • 31
    Plain washer PVC 13×40×3

    3229622

    $10.00In stock

  • 26
    Screw M8×25

    3201339

    $10.00In stock

  • 30
    Plain washer 12×36

    3206904

    $10.00In stock

  • 7
    Central paddle

    3230023

    $183.00In stock

02Fits

Fits these machines

2 machines · 2 IMER parts books

From IMER parts books 3230425 r07 (2019-02), 3226875 r16 (2018-09).

03Where it sits

Ref 8 on the Mortarman 120 Plus drawing

Open full diagram →
Mortarman 120 Plus — Tank, parts list
RefPart no.NamePrice
13236608Suction HoodRequest price
23236713Slotted TubeIn stock, $442.00
33229602TankIn stock, $535.00
43230013ScraperIn stock, $106.00
53229588Outer BladeIn stock, $167.00
63229594Inner BladeIn stock, $166.00
73230023Middle BladeIn stock, $183.00
83230009Mixer HeadIn stock, $395.00
93229562DiffuserRequest price
103236609Scraper RubberRequest price
113236731Safety HookIn stock, $20.00
123234521CamIn stock, $10.00
133234816Cam SpacerIn stock, $10.00
143234817Switch SupportRequest price
153234818Limit Switch SupportRequest price
163214791Limit Switch PizzatoIn stock, $89.00
173201216Cable Clamp PG 13.5In stock, $10.00
183234822Captive Screw M6x30 ZincRequest price
192207750Seal 100x80x10In stock, $12.00
202288788RivetIn stock, $10.00
213209728Trilobular Bolt 12x20 ZincRequest price
222222034Hex Head Bolt 12x20 ZincRequest price
232222007Hex Head Bolt 12x35 ZincIn stock, $10.00
242222425Self-Tapping Bolt 4.2x13 ZincRequest price
252222586Countersunk Socket Bolt 8x16 ZincRequest price
263201339Countersunk Socket Bolt 8x25 ZincIn stock, $10.00
273204186Cheese Head Bolt 4x40 ZincRequest price
283206902Hex Head Bolt 12x110 ZincRequest price
292224049Washer D.6x24 ZincIn stock, $10.00
303206904Washer 12x36In stock, $10.00
313229622PVC Washer 13x40x3In stock, $10.00
323234811Washer 20x12.5x1.5Request price
333234812Washer 12x6.5x1.5Request price
343234814Spacer ProtectionRequest price
352224380Washer D.12x25 ZincIn stock, $10.00
362224190Fender Washer 8x32 ZincIn stock, $10.00
373206659Washer M12In stock, $10.00
383211470Nut M6Request price
392223924Nut M6In stock, $10.00
402223923Nut M8In stock, $10.00
413226385Nut 30x2Code as printed; same code is used for the gear box in Tav. 3/4Request price
422223921Self-Locking Nut D.12In stock, $10.00

04Specifications

Part details

Part number
3230009(3230-009)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Tank
Fits
2 machines

This mixer head is a genuine IMER OEM part, part number 3230009.

The IMER parts books list it on two machines. In the Step-Up 120 parts book it is ref. 6 in table 14.2, the mixer, which applies from serial number 0003010074. In the Mortarman 120 Plus parts book it is ref. 8 in table 2, Tank.

Check part number 3230009 against the parts book for your machine before ordering.

05Used with

Often replaced together

Wear parts next to it on the same drawing

06Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

07Shipping & returns

Shipped from the USA

Shipping & delivery →Returns & warranty →

  • Ships from the USA

    Leaves us in 1–3 business days; ground delivery usually takes 5–7 business days.

  • Free shipping over $1,500

    On orders over $1,500 to commercial addresses in the contiguous US.

  • 30-day returns

    30-day returns on unused items with a return authorization.

08Questions

Good to know

Which IMER machines does part 3230009 fit?

The IMER parts books list 3230009 on the Step-Up 120 (table 14.2, ref. 6, the mixer, from serial number 0003010074) and as the mixer head of the Mortarman 120 Plus (table 2, Tank, ref. 8).

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
Ask about the fitCall +1 (307) 301-7723
