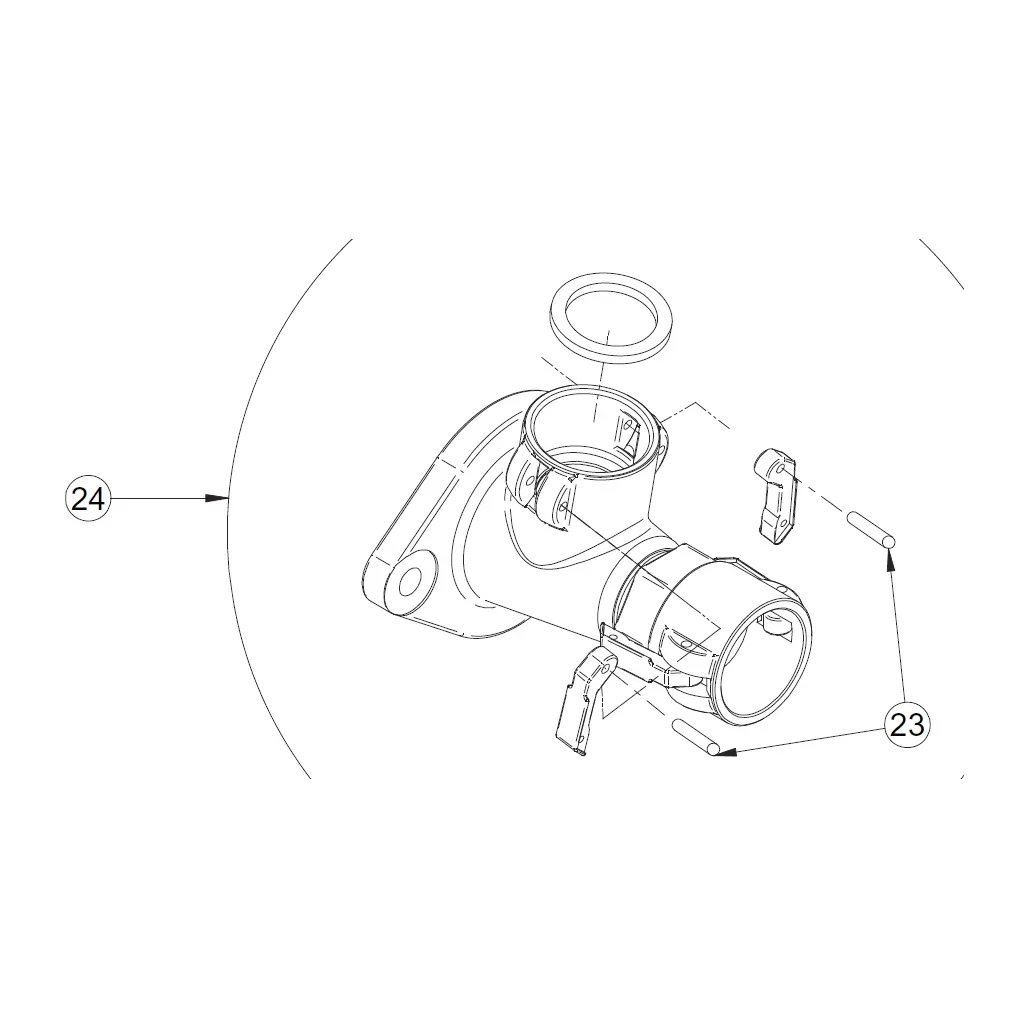

Complete delivery manifold – genuine IMER part 3228329 for IMER Step-Up 120

01Where it fits

Where this part sits on your machine

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3226875 r16 (2018-09).

03Specifications

Part details

Part number
3228329(3228-329)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Pump Group
Fits
1 machine

The complete delivery manifold is a genuine IMER OEM part, part number 3228329.

The IMER Step 120 parts book lists it as Delivery Manifold Complete in the Pump Group assembly (Tav. 3, ref. 24) and as part of Pump Kit 2L6 (1107088, Tav. 16, ref. 11). The same tables list a separate Delivery Manifold, part number 3224390.

04Documents

Parts books

Guides

Guides for this part

Answers

Questions about the machines it fits

All answers

05Shipping & returns

Shipped by IMER USA

Shipping & delivery →Returns & warranty →

  • Ships from IMER USA

    Shipped directly by IMER USA from its US warehouse, within 1–3 business days; ground delivery usually takes 5–7 business days.

  • Flat-rate shipping by size

    Parts ship at a flat rate by size, from $20. IMER machines ship free to commercial addresses in the contiguous US.

  • 30-day returns, restocking fee may apply

    30-day returns on unused items with a return authorization. Non-defective returns: 15% restocking fee (parts), 30% (machines), return freight paid by the buyer. See Returns

06Questions

Good to know

Which IMER machine does part 3228329 fit?

The IMER parts book lists it for the Step-Up 120, in the Pump Group and in Pump Kit 2L6 (1107088).

Is delivery manifold 3228329 included in a kit?

Yes. It is part of Pump Kit 2L6, part number 1107088.

Fit check

Not sure it fits?

Send us the model and serial number from the machine’s serial plate, or a photo of it. A parts specialist checks the fit against the IMER parts books before the part ships.
