Straight Wall Socket 200/250V 3P+T 16A 9H IP67 for IMER Step-Up 120 — IMER parts diagram, ref 17

01Where it fits

Where this part sits on your machine

  • Drawing 5 · Ref 17

    IMER Step-Up 120

    Electrical Panel Step 220V (3229670)

    View on the drawing

Also on this drawing

All 19 parts on Drawing 5, Electrical Panel Step 220V (3229670)

02Fits

Fits these machines

1 machine · 1 IMER parts book

From IMER parts book 3226875 r16 (2018-09).

03Where it sits

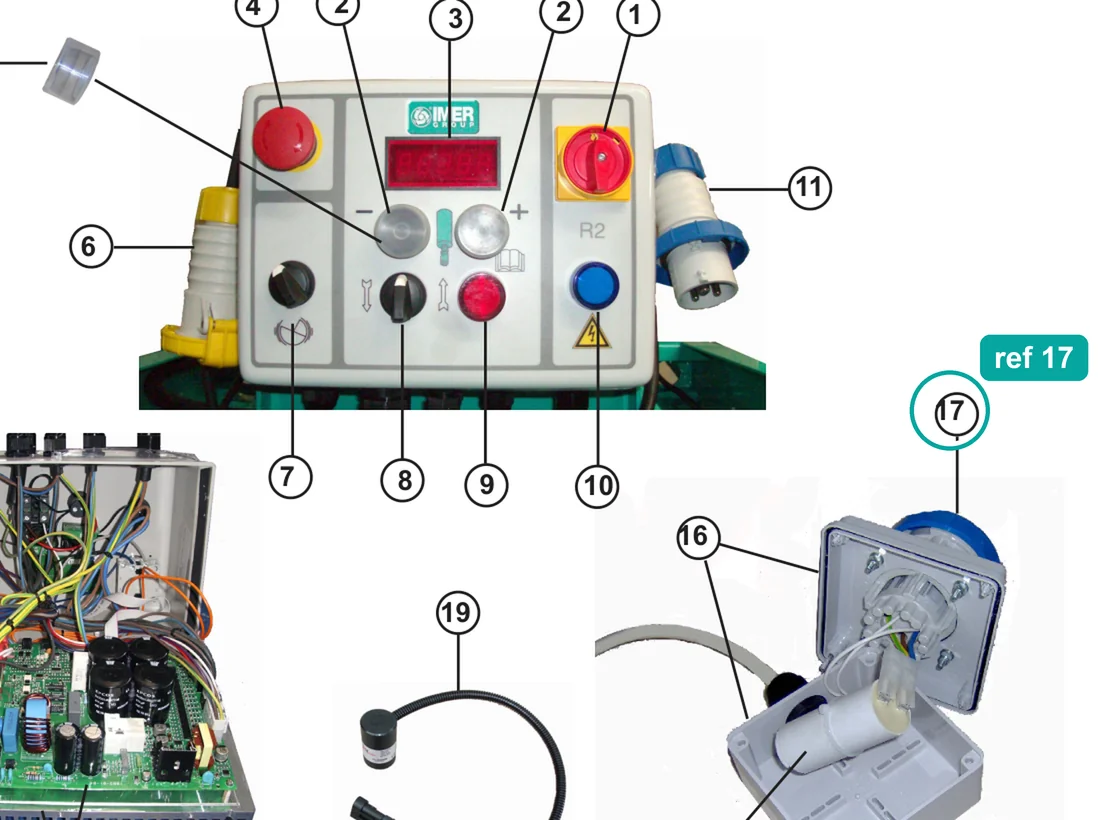

Ref 17 on the Step-Up 120 drawing

Open full diagram →
Step-Up 120 — Electrical Panel Step 220V (3229670), parts list
RefPart no.NamePrice
13230316Cut-Out SwitchNot sold onlineAsk a parts specialist
23225437Pushbutton With Rubber Protection + ContactsIn stock, $59.00
33229742DisplayIn stock, $163.00
43225440Emergency Pushbutton + ContactsNot sold onlineAsk a parts specialist
53226932Rubber ProtectionIn stock, $21.00
63230313Plug 16A 4H 110-130V 3P+T IP67Not sold onlineAsk a parts specialist
732303172-Position Switch + ContactsIn stock, $256.00
832303182-Position Switch LH Return + ContactsIn stock, $116.00
93230449Lamp Holder Assembly Red + LED 24 VDCIn stock, $42.00
103230448Lamp Holder Assembly Blue + LED 24 VDCIn stock, $42.00
113203504Plug 230V 2P+T 16A 6H IP67In stock, $55.00
123229833Inverter Cover Step 120 230VNot sold onlineAsk a parts specialist
133230320Contactor 20A 24VDCIn stock, $165.00
143230071Inverter Card Step 230VIn stock, $2,791.00
153227794Capacitor10 mF 450V 50-60 Hz (as printed)In stock, $82.00
163230315Electrical Box + CoverIn stock, $110.00
173228278Straight Wall Socket 200/250V 3P+T 16A 9H IP67In stock, $89.00
183230319Wiring And Connector KitNot sold onlineAsk a parts specialist
193226898Magnetic SensorIn stock, $308.00

04Specifications

Part details

Part number
3228278(3228-278)
Brand
IMER (genuine OEM)
Condition
New
Assembly
Electrical Panel Step 220V (3229670)
Fits
1 machine

This is genuine IMER part number 3228278. The official IMER parts books list it as "Straight Wall Socket 200/250V 3P+T 16A 9H IP67" and show it for the IMER Step-Up 120.

Parts-book listings: Step-Up 120, table 5 (Electrical Panel Step 220V (3229670)), ref 17.

Check that the part number on your old part or in your machine's parts list matches 3228278 before ordering, or contact us with your machine's model and serial number.
